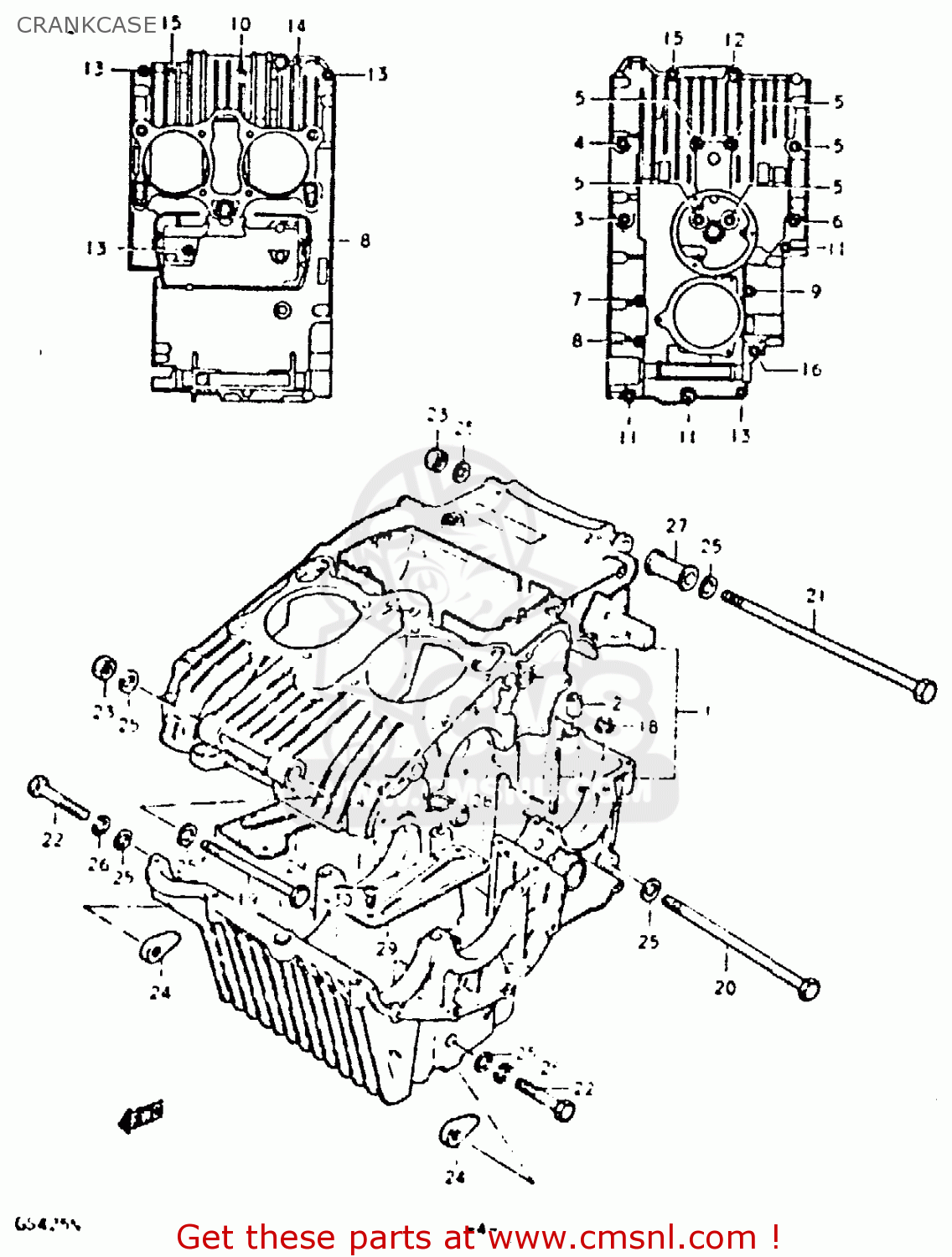

CRANKCASE

ref

part #

description

quantity

1

1130044812
ref: 1

CRANKCASE SET

€ 0.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0910308025
ref: 3
8*115

BOLT

€ 3.00

4

0151708958
ref: 4

BOLT (8X95)

€ 3.50

5

0151708908
ref: 5

BOLT 8X90

€ 3.50

6

0151708858
ref: 6

BOLT

€ 3.50

7

0910306027
ref: 7
6*115

BOLT

€ 5.00

8

0151706908
ref: 8

BOLT (6X90)

€ 2.00

9

0151706708
ref: 9

BOLT (6X70)

€ 3.00

10

0151706658
ref: 10

BOLT 6X65

€ 3.00

11

0151706608
ref: 11

BOLT (6X60)

€ 2.50

12

0151706458
ref: 12

BOLT,UNDER

€ 2.50

13

0151706408
ref: 13

BOLT

€ 2.50

14

0151706358
ref: 14

BOLT 6X35

€ 2.50

15

0151706308
ref: 15

BOLT

€ 2.00

16

0151708458
ref: 16

BOLT (8X45)

€ 3.00

17

0142106408
ref: 17

STUD BOLT

€ 2.50

18

0831616068
ref: 18

NUT

€ 2.50

19

0910010051
ref: 19
10*125

BOLT

€ 6.50

20

0910010092
ref: 20
10*160

BOLT 10X160

€ 28.50

21

0910010110
ref: 21
10*265

BOLT 10X265

€ 57.00

22

0110710458
ref: 22
10*45

BOLT

€ 2.00

23

0915910011
ref: 23

NUT

€ 3.00

24

0915910020
ref: 24

NUT

€ 7.50

25

0832211108
ref: 25

WASHER

€ 2.50

26

0832121108
ref: 26

LOCK WASHER

€ 2.00

27

1161045000
ref: 27

SPACER,ENGINE MOUNT

€ 12.00

28

0928012005
ref: 28

O-RING

€ 5.00

29

1152144000
ref: 29

PLATE,OIL SEPARATOR

€ 0.00

30

0211206088
ref: 30

SCREW

€ 2.00
