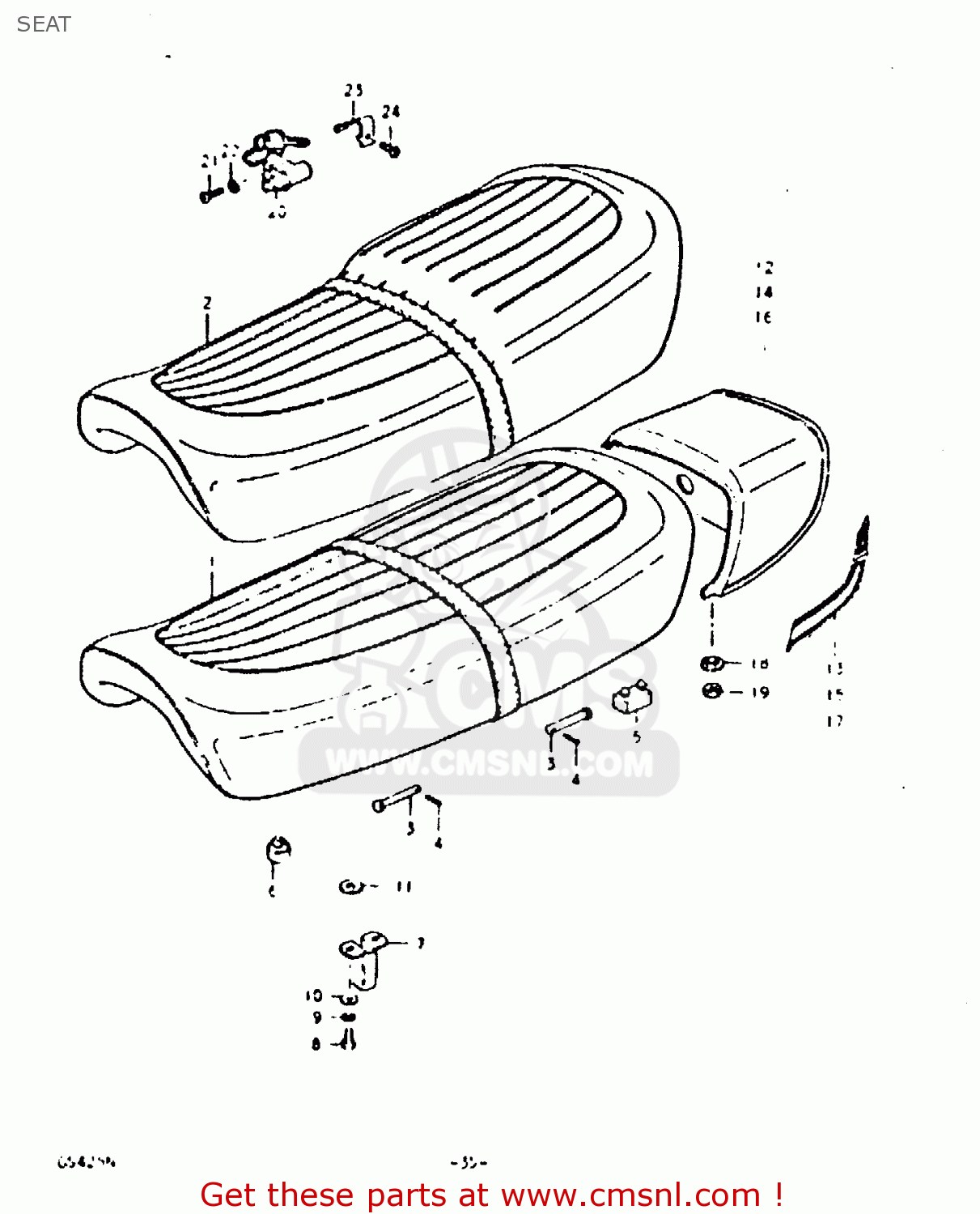

SEAT

ref

part #

description

quantity

1

451004400340P
ref: 1

SEAT ASSEMBLY

€ 241.50

3

0920006018
ref: 3

PIN

€ 2.00

4

0411120158
ref: 4

PIN

€ 1.50

5

0932108006
ref: 5

CUSHION

€ 3.00

6

0932110002
ref: 6

CUSHION(11.5X22X20)

€ 2.00

7

4521345000
ref: 7

STRIKER,SEAT LOCK

€ 7.50

8

0110706128
ref: 8

BOLT

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0916008043
ref: 11

WASHER(8.5X18X1)

€ 1.50

12

4551044001019
ref: 12

COVER,SEAT TAIL

€ 117.00

13

681004484065M
ref: 13

TAPE SET

€ 0.00

14

455104400103J
ref: 14

COVER, SEAT TAIL

€ 117.00

15

6810044840998
ref: 15

TAPE SET

€ 0.00

16

455104400105J
ref: 16

COVER,SEAT TAIL

€ 117.00

17

681004484067R
ref: 17

TAPE SET

€ 0.00

18

0916906016
ref: 18

WASHER

€ 1.50

19

0831921068
ref: 19

NUT 6MM

€ 2.00

20

9570045813
ref: 20

LOCK ASSY,SEAT

€ 59.50

21

0211205128
ref: 21

SCREW

€ 2.50

22

0832121058
ref: 22

LOCK WASHER

€ 2.00

23

9572245000
ref: 23

SPRING,HELMET HOLDER

€ 8.50

24

0110405088
ref: 24

BOLT 5X16

€ 2.00

all assemblies
