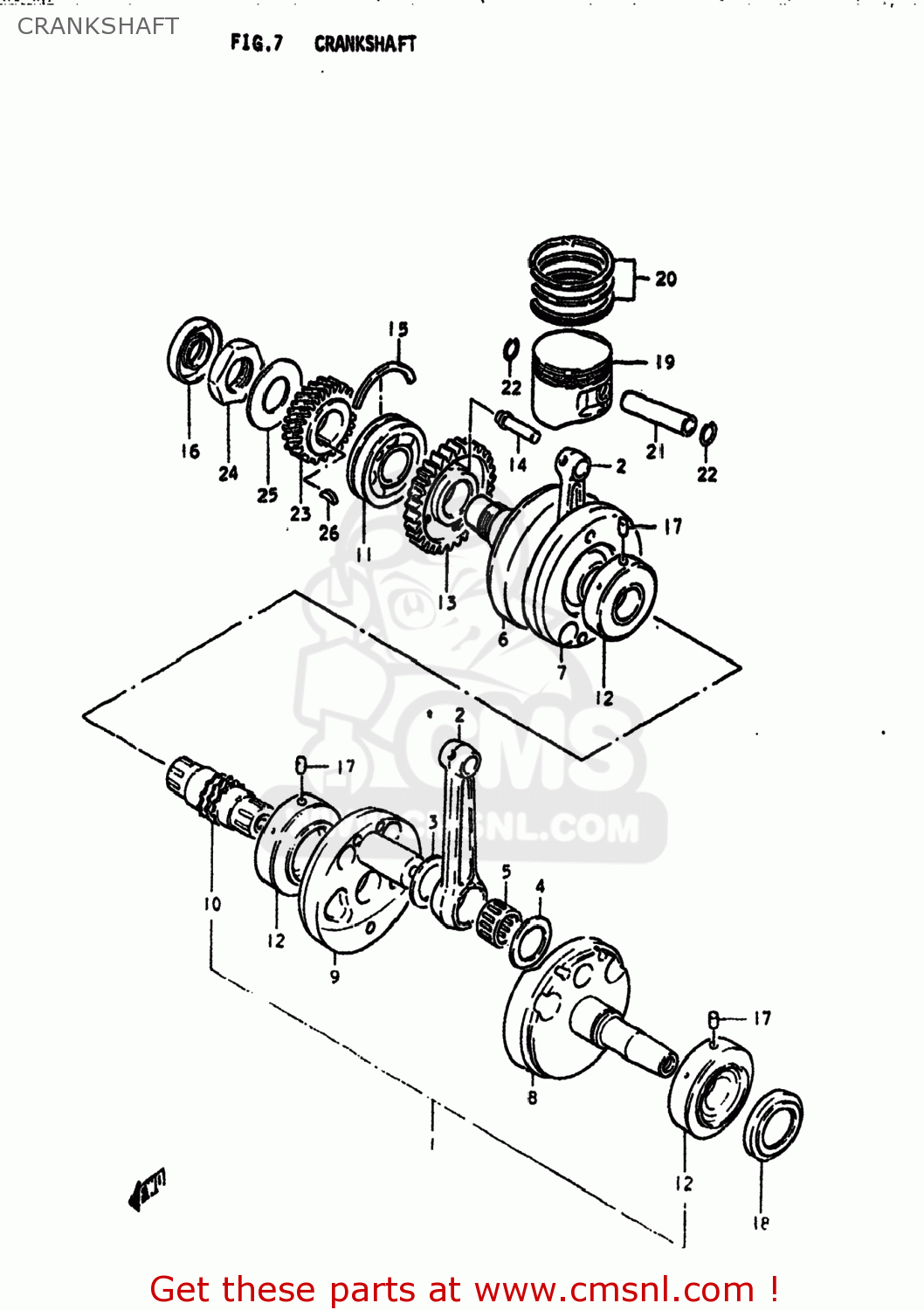

CRANKSHAFT

ref

part #

description

quantity

1

1220044003
ref: 1

CRANKSHAFT ASSEMBLY

€ 0.00

2

1216144001
ref: 2

ROD,CONNECTING

€ 80.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328010
ref: 5

BEARING(28X38X19.8)

€ 22.00

6

1222044001
ref: 6

CRANKSHAFT

€ 203.00

7

1223044002
ref: 7

WEB,CRANK

€ 195.00

8

1226144001
ref: 8

CRANKSHAFT,LEFT

€ 0.00

9

1223044002
ref: 9

WEB,CRANK

€ 195.00

10

1228144000
ref: 10

SHAFT,TIMING CHAIN DRIVE

€ 79.00

11

0926230033
ref: 11

BEARING(30X72X19)

€ 47.00

12

0926432002
ref: 12
09264-32009

BEARING

€ 138.00

13

1266144001
ref: 13

GEAR,CRANK BALANCER DRIVE

€ 85.50

14

0920910014
ref: 14

PIN

€ 0.00

15

0939072004
ref: 15

C RING

€ 3.00

16

0928325062
ref: 16

SEAL,OIL(25X47X8)

€ 11.50

17

0422107129
ref: 17

PIN

€ 1.50

18

0928948001
ref: 18
09289-48002

OIL SEAL

€ 12.00

19-1

1211145100
ref: 19-1

PISTON (67.00MM)

€ 38.00

19-2

1211145100050
ref: 19-2

PISTON (67.50MM)

€ 94.00

19-3

1211145100100
ref: 19-3

PISTON (68.00MM)

€ 54.00

20-1

1214045100
ref: 20-1

RING SET,PISTON

€ 58.00

20-2

1214045100050
ref: 20-2

RING SET,PISTON

€ 48.00

20-3

1214045100100
ref: 20-3

RING SET,PISTON

€ 0.00

21

1215129001
ref: 21

PIN,PISTON

€ 9.00

22

0938116002
ref: 22
09381-16001

CIRCLIP

€ 1.50

23

2111144000
ref: 23

GEAR,PRIMARY DRIVE

€ 0.00

24

0914028001
ref: 24
09140-28003

NUT

€ 8.00

25

0916428001
ref: 25

WASHER

€ 0.00

26

0834131059
ref: 26

KEY

€ 3.00
