CYLINDER

GS425E 1979 (N) USA (E03)

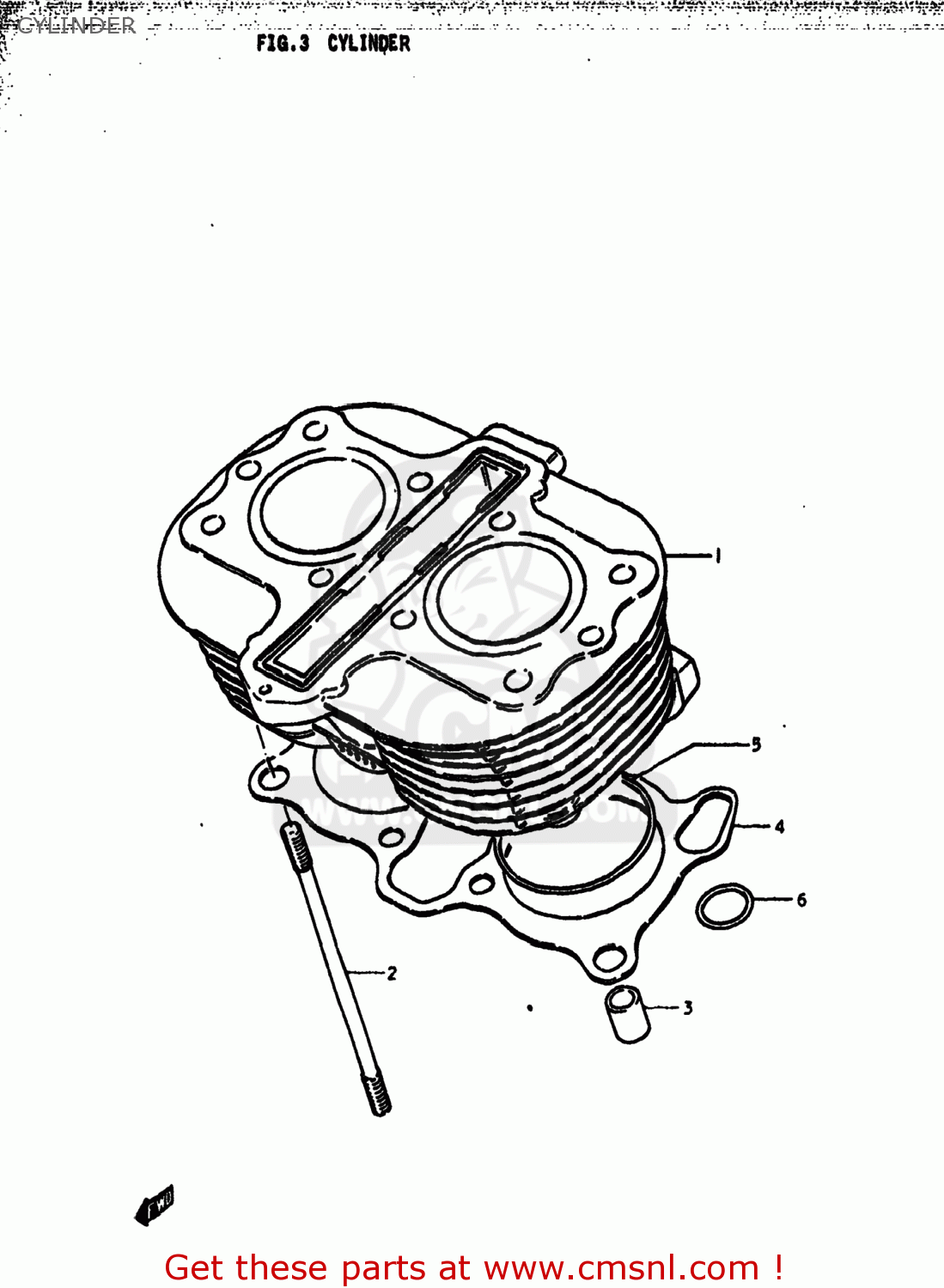

Cylinder diagram GS425E 1979 (N) USA (E03)

CYLINDER GS425E 1979 (N) USA (E03)

CYLINDER GS425E 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121044010
ref: 1

CYLINDER

€ 0.00

2

0910810028
ref: 2
09108-10112

STUD

€ 9.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

1124144000
ref: 4
11241-44001

GASKET,CYLINDER (MCA)

€ 16.00

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00
