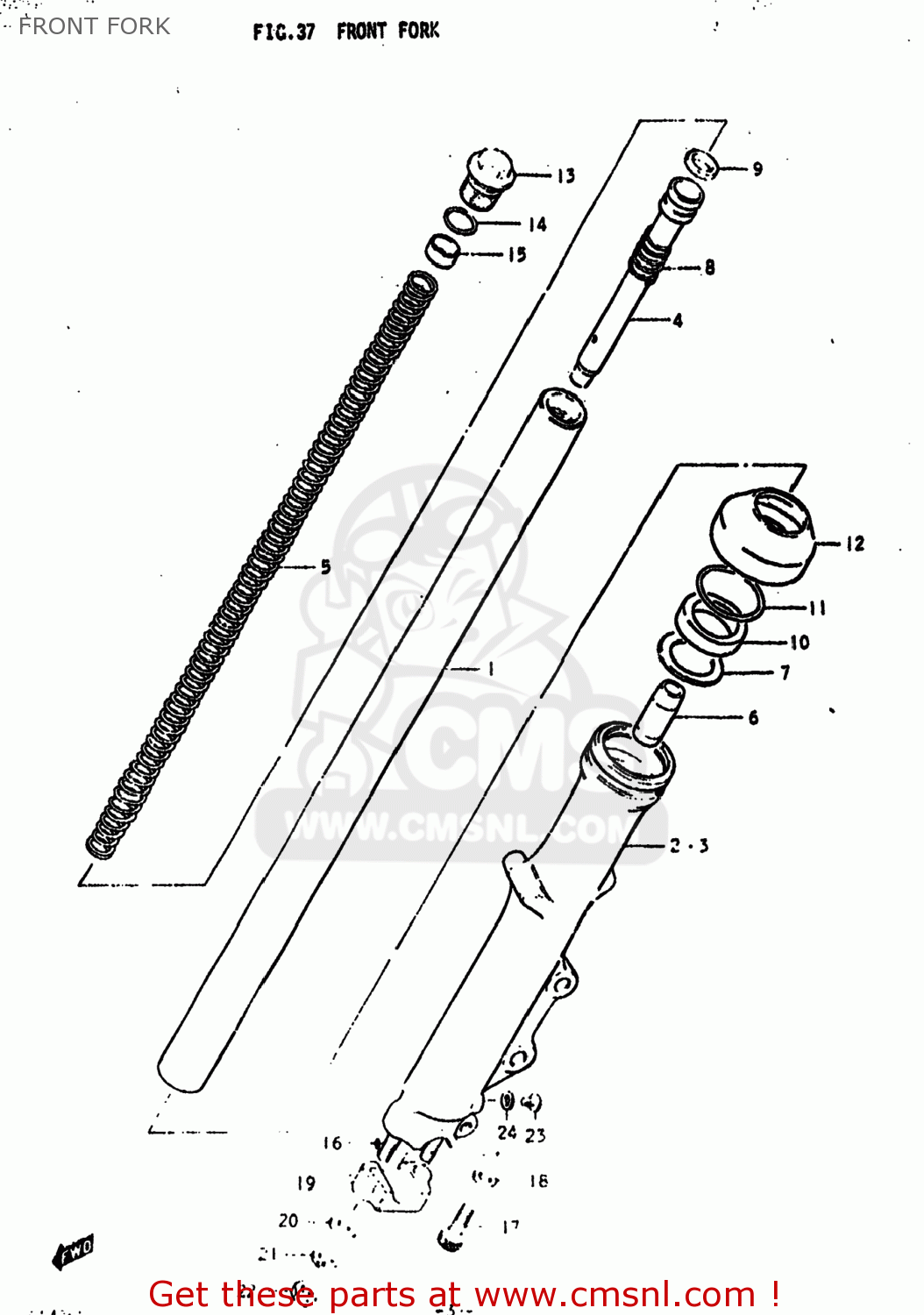

FRONT FORK

ref

part #

description

quantity

0-1

5110344033
ref: 0-1
51103-44034

DAMPER ASSEMBLY,RIGHT

€ 341.00

0-1

5110344033
ref: 0-1
51103-44034

DAMPER ASSEMBLY,RIGHT

€ 341.00

0-2

5110444032
ref: 0-2

DAMPER ASSEMBLY,LEFT

€ 289.00

1

5111044030
ref: 1

TUBE,INNER

€ 197.50

2

5114044031
ref: 2

TUBE,FORK,LEFT,OUTER

€ 107.50

3

5113044032
ref: 3
51130-44033

TUBE,FORK,OUTER,RIGHT

€ 129.00

3

5113044032
ref: 3
51130-44033

TUBE,FORK,OUTER,RIGHT

€ 129.00

4

5114644031
ref: 4
51146-38300

CYLINDER,FRONT FORK

€ 42.00

5

5117144030
ref: 5
51171-11500

SPRING

€ 43.50

6

5119544030
ref: 6

PIECE,OIL LOCK

€ 0.00

7

5116844030
ref: 7

SPACER,OIL SEAL

€ 4.50

8

5117736030
ref: 8

SPRING,REBOUND

€ 4.50

9

5119633130
ref: 9

RING,PISTON

€ 7.50

10

5115344031
ref: 10
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

11

5115633130
ref: 11
51156-02B00

CIRCLIP,FORK OIL SEAL

€ 4.50

12

5157133131
ref: 12
51571-37310

BOOT

€ 22.00

13

5135133130
ref: 13

BOLT

€ 30.50

14

5118131030
ref: 14

O RING

€ 3.50

15

5117644030
ref: 15

SPACER,FRONT FORK SPRING

€ 0.00

16

0142108258
ref: 16
01421-0825A

STUD 8X25

€ 2.50

17

5114731030
ref: 17
51147-48130

BOLT

€ 3.50

18

5114831030
ref: 18
51148-36011

GASKET (NAS)

€ 4.00

19

5113231030
ref: 19

HOLDER,AXLE

€ 31.50

20

0832221088
ref: 20
08322-01087

WASHER

€ 2.00

21

0832121088
ref: 21
08321-01087

LOCK WASHER

€ 2.00

22

0831012088
ref: 22
08310-00087

NUT

€ 2.00

23

0211104067
ref: 23
02112-0406B

SCREW

€ 2.00

24

5118333030
ref: 24

GASKET (NAS)

€ 6.50

all assemblies
