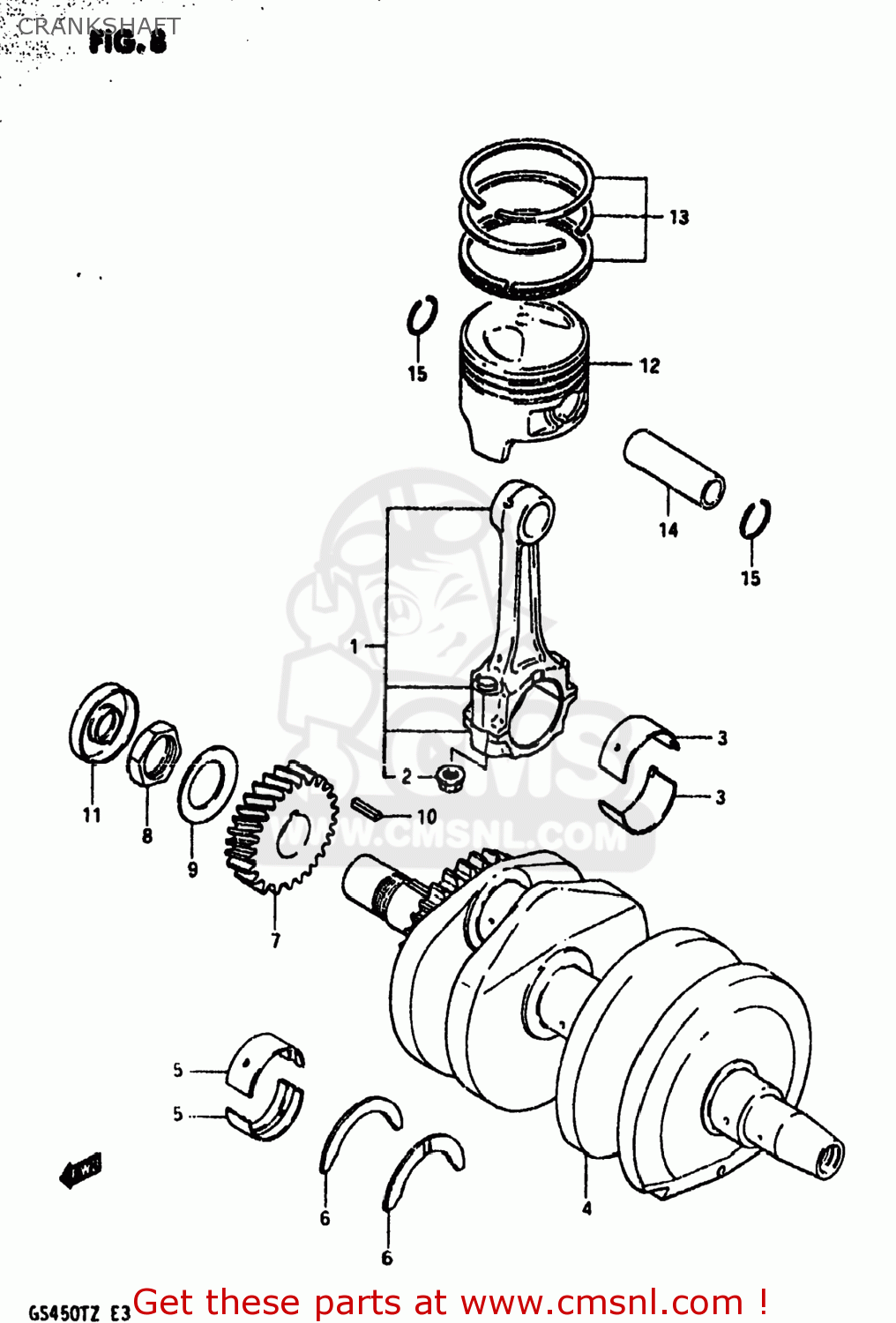

CRANKSHAFT

ref

part #

description

quantity

1

1216044100
ref: 1
12160-44101

ROD ASSEMBLY,CONNECTING

€ 135.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216444100010
ref: 3-1
12164-01D01-0A0

BEARING,CRANK PIN

€ 13.50

3-2

1216444100020
ref: 3-2
12164-01D01-0B0

BEARING,CRANK PIN

€ 14.50

3-3

1216444100030
ref: 3-3
12164-01D01-0C0

BEARING,CRANK PIN

€ 14.50

3-4

1216444100040
ref: 3-4
12164-01D01-0D0

BEARING,CRANK PIN

€ 15.00

3-5

1216444100025
ref: 3-5

BEARING,CRANK PIN(US:0.25)

€ 15.50

3-6

1216444100050
ref: 3-6

BEARING,CRANK PIN(US:0.5)

€ 14.50

4

1222044100
ref: 4
12220-01D02

CRANKSHAFT

€ 1,167.50

5-1

1222944100010
ref: 5-1
12229-01D01-0A0

METAL CRANKSHAFT

€ 10.50

5-2

1222944100020
ref: 5-2
12229-01D01-0B0

METAL CRANKSHAFT

€ 11.00

5-3

1222944100030
ref: 5-3
12229-01D01-0C0

METAL CRANKSHAFT

€ 11.00

5-4

1222944100040
ref: 5-4
12229-01D01-0D0

METAL CRANKSHAFT

€ 11.00

5-5

1222944100025
ref: 5-5

BEARING,CRANKSHAFT(US:0.25)

€ 21.50

5-6

1222944100050
ref: 5-6

BEARING,CRANKSHAFT(US:0.5)

€ 9.50

6

1222844101
ref: 6
12228-44106

PLATE,CRANK THRUST

€ 8.50

7

2111144100
ref: 7

GEAR,PRIMARY DRIVE NO.28

€ 57.50

8

0914024007
ref: 8

NUT

€ 4.50

9

0916425001
ref: 9

WASHER

€ 4.50

10

0834131059
ref: 10

KEY

€ 3.00

11

0928322013
ref: 11
09283-22015

OIL SEAL

€ 10.50

12-1

1211144100
ref: 12-1

PISTON

€ 69.00

12-2

1211144100050
ref: 12-2
12103-44810-050

PISTON

€ 116.50

12-3

1211144100100
ref: 12-3
12103-44810-100

PISTON

€ 86.00

13-1

1214044110
ref: 13-1

RING SET,PISTON

€ 61.50

13-2

1214044110050
ref: 13-2

RING SET,PISTON (OS:0.5)

€ 33.00

13-3

1214044110100
ref: 13-3
12140-44111-100

RING SET,PISTON (OS:1.0)

€ 36.00

14

1215192201
ref: 14
12151-45501

PIN,PISTON (18MM)

€ 14.00

15

0938118002
ref: 15

CIRCLIP

€ 1.50

all assemblies
