REAR WHEEL (GS450TXZ)
GS450TX 1982 (Z) USA (E03)

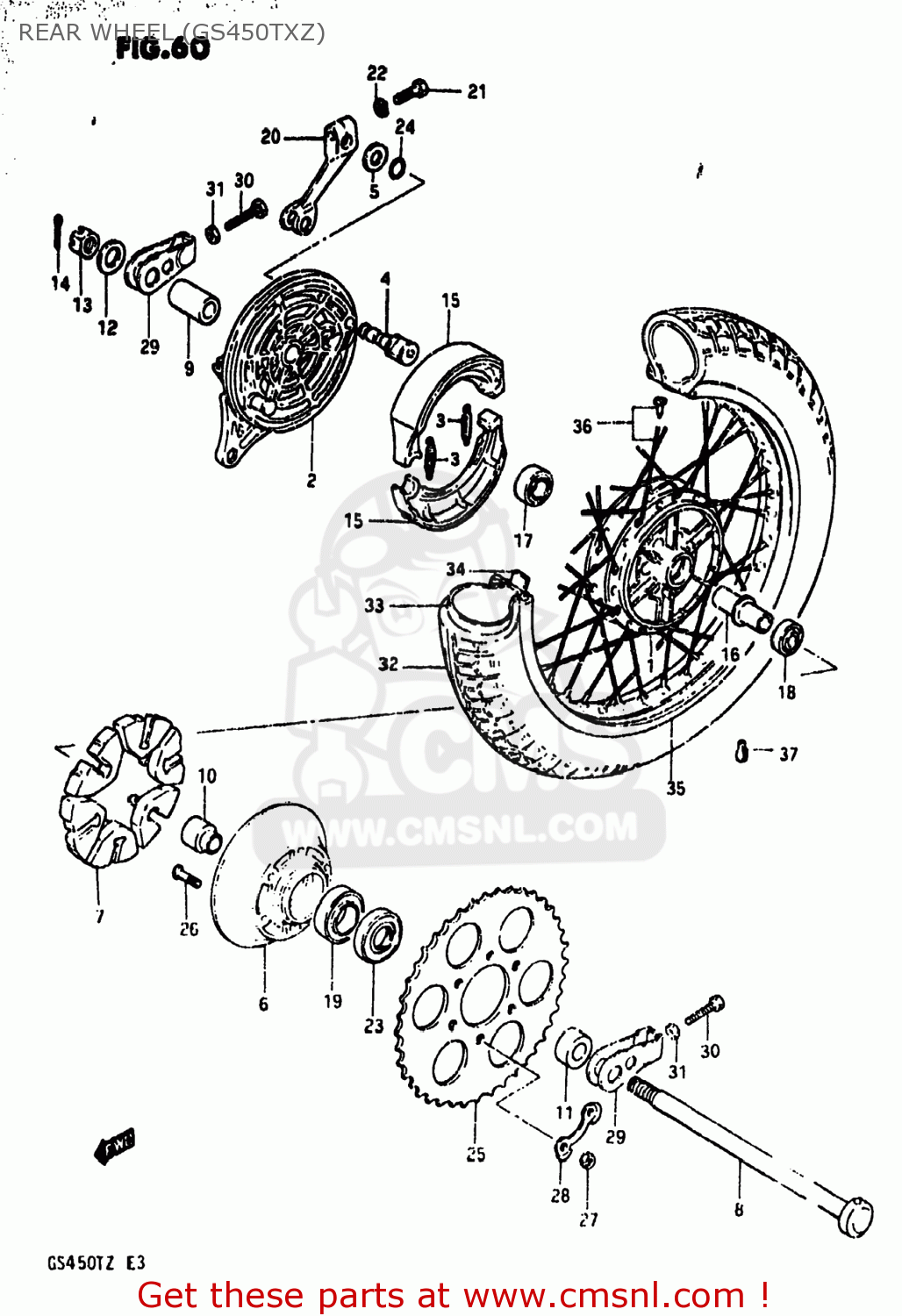

Rear wheel (gs450txz) diagram GS450TX 1982 (Z) USA (E03)
REAR WHEEL (GS450TXZ) GS450TX 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411011001
ref: 1
DRUM,REAR HUB
€ 156.50
2
6421011002
ref: 2
PANEL,REAR HUB
€ 83.50
3
5542030000
ref: 3
SPRING,BRAKE SHOE
€ 3.50
4
5444033002
ref: 4
CAM,FRONT BRAKE
€ 13.00
5
0916015001
ref: 5
09160-15048
WASHER (15X24X1.6)
€ 2.50
6
6461133000
ref: 6
DRUM,REAR SPROCKET MOUNT
€ 87.00
7
6465111002
ref: 7
ABSORBER,RR HUB SHOCK
€ 19.50
8
6471133000
ref: 8
64711-3300V
AXLE,REAR
€ 33.50
9
0918017043
ref: 9
SPACER(17.5X28X44.8)
€ 7.00
10
6473333000
ref: 10
64733-3300V
SPACER,REAR HUB BEARING
€ 20.00
11
0918017042
ref: 11
SPACER(17X30.5X22.3)
€ 8.50
12
0916017013
ref: 12
09160-17050
WASHER (17X30X3.2)
€ 2.00
13
0914116001
ref: 13
NUT
€ 6.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
6441011002
ref: 15
64400-11870
SHOE SET,BRAKE (MCA)
€ 101.00
16
6473011000
ref: 16
SPACER
€ 21.00
17
0814363037
ref: 17
BEARING
€ 23.00
18
0814362037
ref: 18
BEARING
€ 18.50
19
0811362057
ref: 19
BEARING
€ 18.00
20
6445144001
ref: 20
LEVER,RR BRAKE CAM
€ 111.00
21
0110706258
ref: 21
01500-06257
BOLT
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0928530001
ref: 23
SEAL,OIL(30.5X52X8)
€ 20.00
24
0928015001
ref: 24
09280-15003
O-RING,BOSS
€ 2.00
25
6451144210
ref: 25
SPROCKET,REAR (NT:43)
€ 80.50
26
0914010026
ref: 26
09140-10026-XC0
NUT
€ 2.00
27
0831011108
ref: 27
08310-00107
NUT
€ 2.50
28
0916910006
ref: 28
WASHER
€ 4.50
29
6141044200
ref: 29
ADJUSTER,CHAIN
€ 31.00
30
0910408018
ref: 30
09104-08034
BOLT 8X50
€ 3.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
32
6510044310
ref: 32
TIRE
€ 0.00
33
6520044300
ref: 33
65200-49030
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
34
6526144300
ref: 34
55261-02B40
PROTECTOR,WHEEL,INNER
€ 3.50
35
6531144300
ref: 35
RIM,REAR WHEEL
€ 0.00
36
6532044300
ref: 36
SPOKE SET,REAR WHEEL
€ 0.00
37-1
5541111000
ref: 37-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
37-2
5541211000
ref: 37-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
