FRAME COVER (MODEL Z)

GS450TX 1982 (Z) USA (E03)

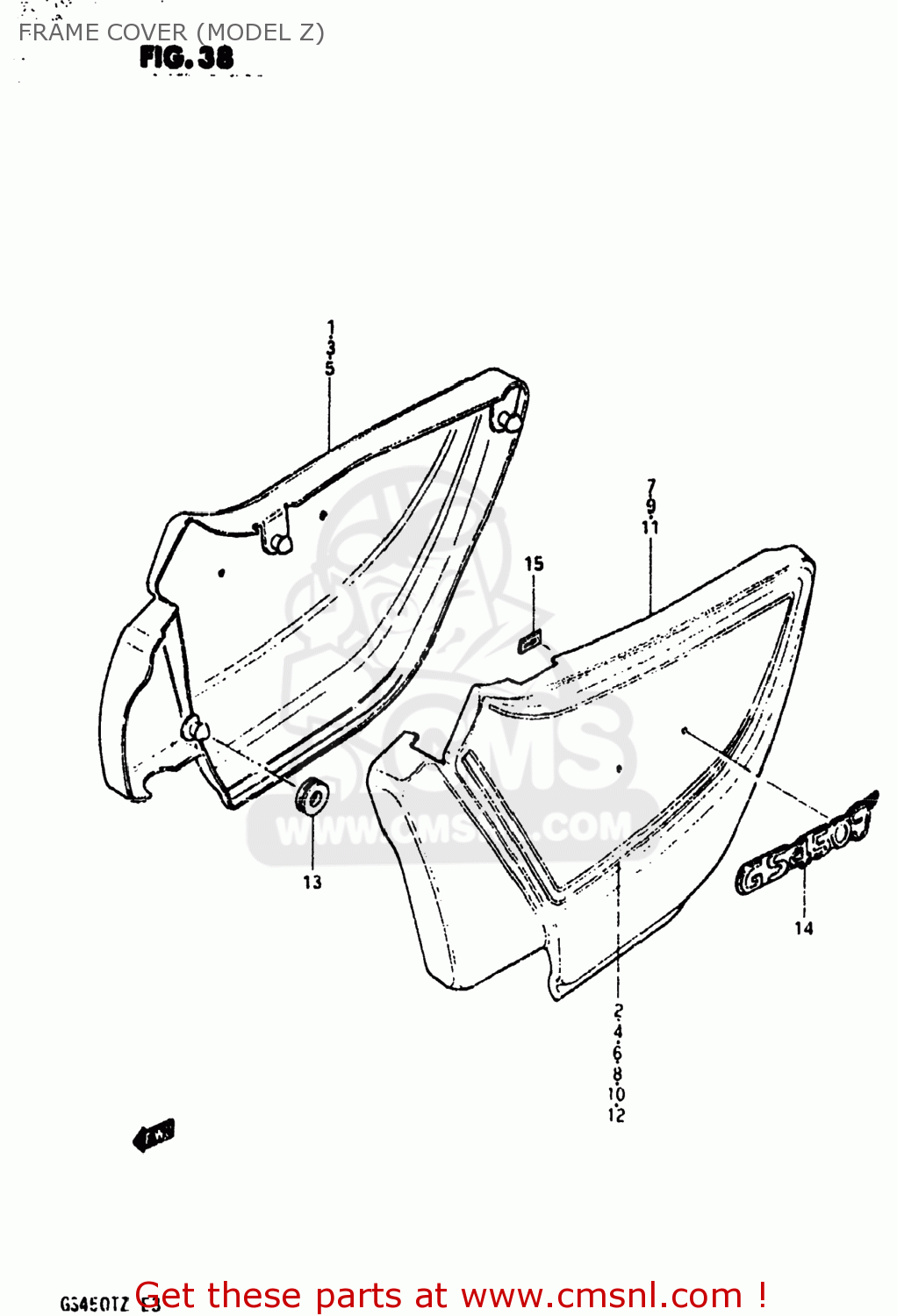

Frame cover (model z) diagram GS450TX 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) GS450TX 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) GS450TX 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711044300019
ref: 1
47110-44300

COVER,FRAME,RIGHT

€ 38.50

2

681304431070G
ref: 2

TAPE SET,FRAME COVER

€ 11.50

3

471104430005L
ref: 3
47110-44300

COVER,FRAME,RIGHT

€ 38.50

4

681304431071F
ref: 4

TAPE SET,FRAME COVER

€ 10.00

5

471104430003F
ref: 5
47110-44300

COVER,FRAME,RIGHT

€ 38.50

6

681304431081R
ref: 6

TAPE SET,FRAME COVER

€ 0.00

7

4721044300019
ref: 7
47210-44300

COVER,FRAME,LEFT

€ 52.00

8

681404431070G
ref: 8

TAPE SET,FRAME COVER

€ 10.00

9

472104430005L
ref: 9
47210-44300

COVER,FRAME,LEFT

€ 52.00

10

681404431071F
ref: 10

TAPE SET,FRAME COVER

€ 11.50

11

472104430003F
ref: 11
47210-44300

COVER,FRAME,LEFT

€ 52.00

12

681404431081R
ref: 12

TAPE SET,FRAME COVER

€ 11.50

13

0932008018
ref: 13

CUSHION

€ 4.00

14

6813144300
ref: 14

EMBLEM,FRAME COVER

€ 18.00

15

0914803002
ref: 15

NUT

€ 3.00
