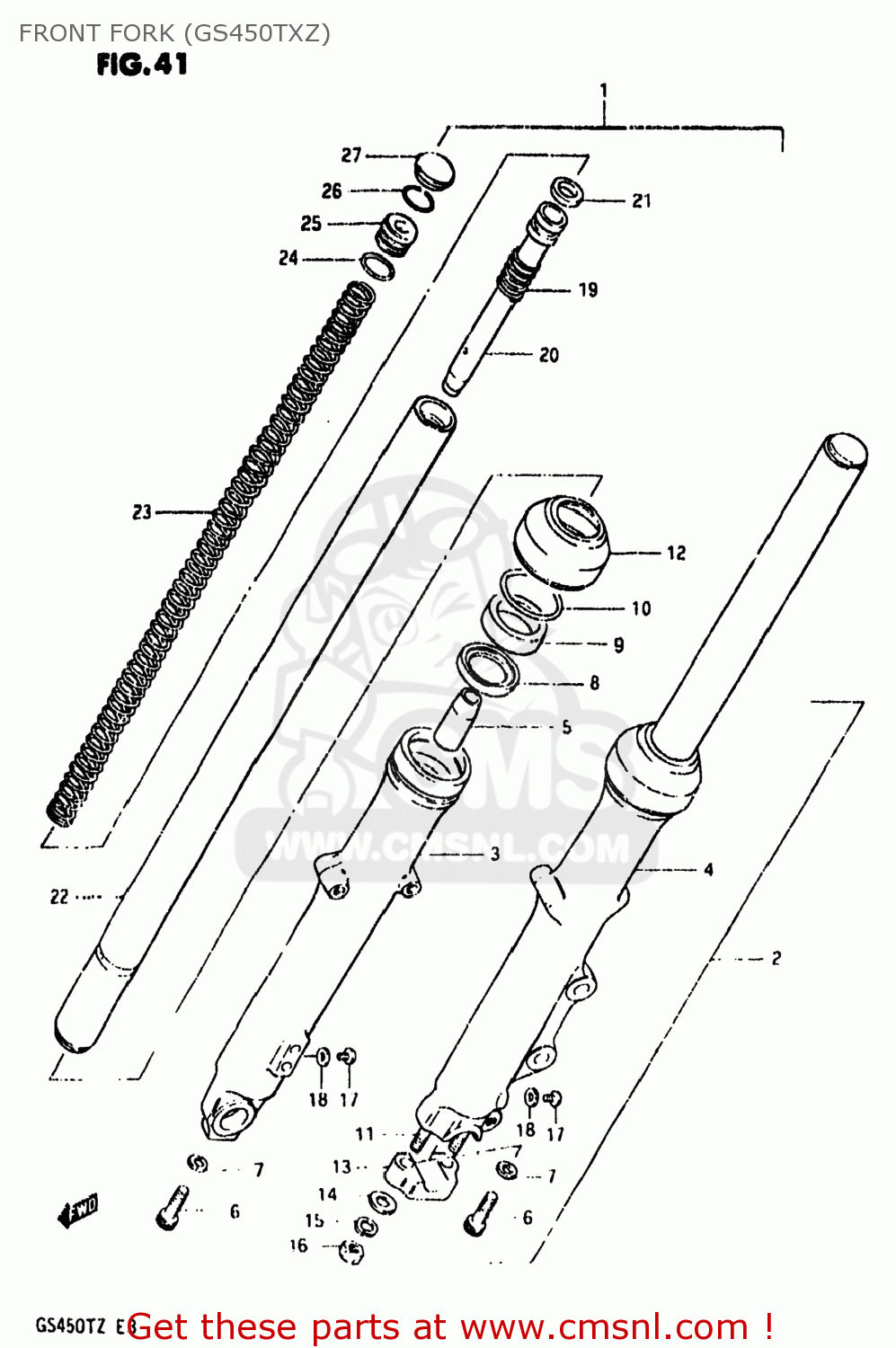

FRONT FORK (GS450TXZ)

ref

part #

description

quantity

1

5110344301
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 143.50

2

5110444301
ref: 2

DAMPER ASSEMBLY,LEFT

€ 207.00

3

5113044033
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 129.00

4

5114044031
ref: 4

TUBE,FORK,LEFT,OUTER

€ 107.50

5

5119548000
ref: 5

PIECE,OIL LOCK

€ 8.50

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5114831030
ref: 7
51148-36011

GASKET (NAS)

€ 4.00

8

5116844030
ref: 8

SPACER,OIL SEAL

€ 4.50

9

5115337310
ref: 9
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

10

5115633130
ref: 10
51156-02B00

CIRCLIP,FORK OIL SEAL

€ 4.50

11

0142108258
ref: 11
01421-0825A

STUD 8X25

€ 2.50

12

5157137310
ref: 12

DUST SEAL

€ 22.00

13

5113231030
ref: 13

HOLDER,AXLE

€ 31.50

14

0832221088
ref: 14
08322-01087

WASHER

€ 2.00

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

0914008005
ref: 16
09140-08017

NUT (8MM)

€ 1.50

17

0211204068
ref: 17
02112-0406B

SCREW 4X6

€ 2.00

18

5118333030
ref: 18

GASKET (NAS)

€ 6.50

19

5117736030
ref: 19

SPRING,REBOUND

€ 4.50

20

5114611400
ref: 20

CYLINDER,FRONT FORK

€ 43.00

21

5119633130
ref: 21

RING,PISTON

€ 7.50

22

5111044170
ref: 22

TUBE,FORK,INNER

€ 87.00

23

5117144301
ref: 23

SPRING

€ 0.00

24

5118133131
ref: 24

O RING

€ 5.00

25

5117548500
ref: 25

SEAT,SPRING

€ 9.00

26

5116948500
ref: 26

RING,STOPPER

€ 2.00

27

5118944300
ref: 27
51189-44031

CAP,FRONT FORK

€ 7.00
