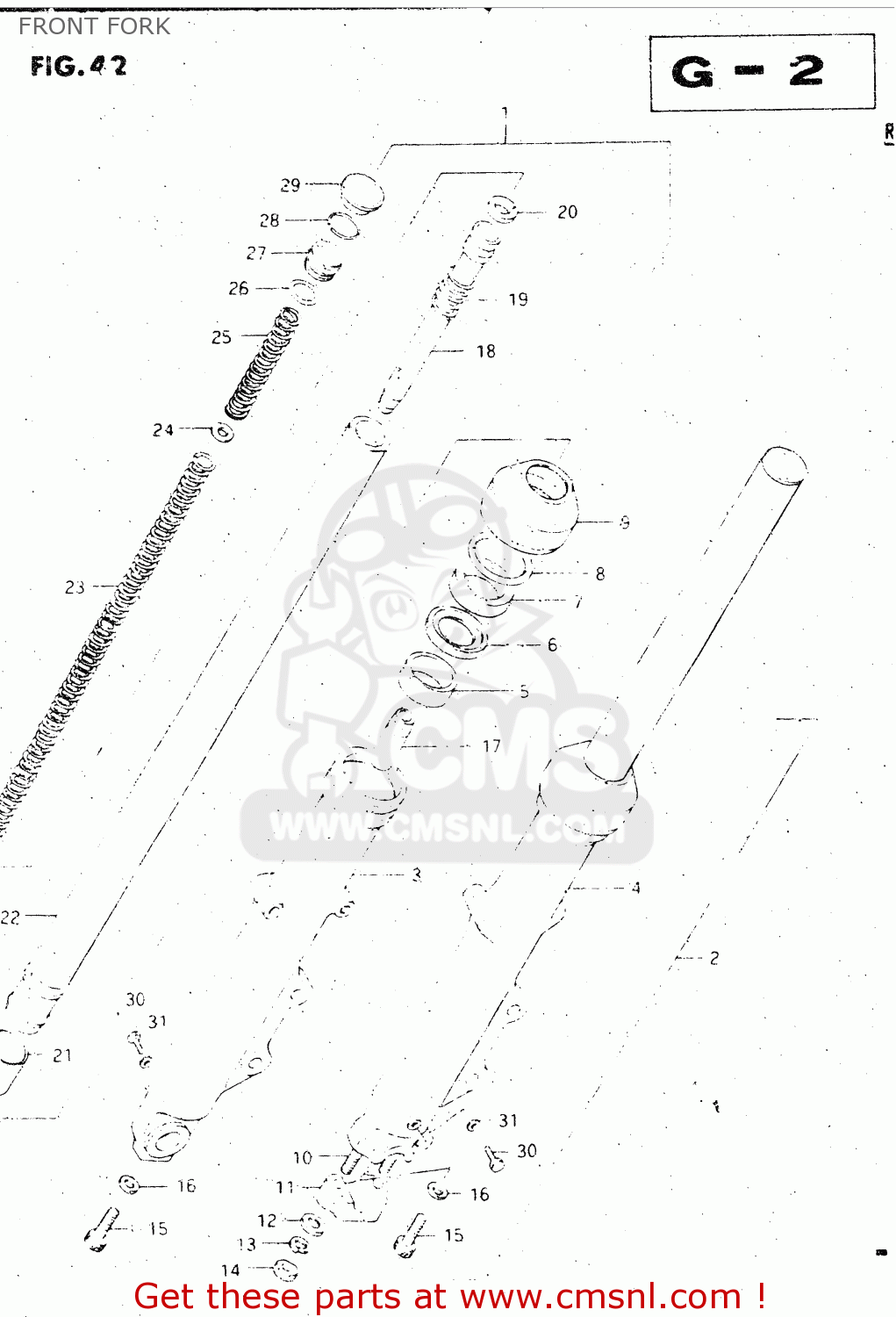

FRONT FORK

ref

part #

description

quantity

1

5110334510
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110434510
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113034300291
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 0.00

4

5114034300291
ref: 4

TUBE,OUTER,LEFT

€ 0.00

5

5115245400
ref: 5

BUSH,GUIDE

€ 14.00

6

5116845031
ref: 6

SPACER,SEAL

€ 5.00

7

5115334200
ref: 7

OIL SEAL,FRONT FORK

€ 14.00

8

5115631231
ref: 8

CIRCLIP,FORK OIL SEAL

€ 3.50

9

5157134200
ref: 9

BOOT

€ 19.50

10

0142108258
ref: 10

STUD 8X25

€ 2.50

11

5113244040291
ref: 11

HOLDER,AXLE

€ 38.50

12

0832221088
ref: 12

WASHER

€ 2.00

13

0832121088
ref: 13

LOCK WASHER

€ 2.00

14

0831012088
ref: 14

NUT

€ 2.00

15

5114748130
ref: 15

BOLT(8X27)

€ 3.50

16

5114831030
ref: 16

GASKET (NAS)

€ 4.00

17

5119545030
ref: 17

PIECE,OIL LOCK

€ 16.00

18

5114634510
ref: 18

CYLINDER

€ 0.00

19

5117745030
ref: 19

SPRING,FORK REBOUND

€ 4.00

20

5119631230
ref: 20

RING

€ 7.50

21

5112145400
ref: 21

PISTON

€ 22.00

22

5111047400
ref: 22

TUBE,FORK,INNER

€ 153.00

23

5118434510
ref: 23

SPRING B

€ 0.00

24

5119247200
ref: 24

WASHER,SPRING

€ 2.50

25

5117134510
ref: 25

SPRING A

€ 0.00

26

5111731030
ref: 26

O-RING

€ 3.50

27

5117547400
ref: 27

SPRING SEAT B

€ 5.50

28

5116947400
ref: 28

RING,STOPPER

€ 2.50

29

5118931230
ref: 29

CAP

€ 6.50

30

0910006011
ref: 30

BOLT(6X8)

€ 2.50

31

5118331030
ref: 31

GASKET,DRAIN,PLUG (NAS)

€ 4.00
