HEADLAMP (E17, E34, E39)

GS500E 1981 (X) GENERAL EXPORT (E01)

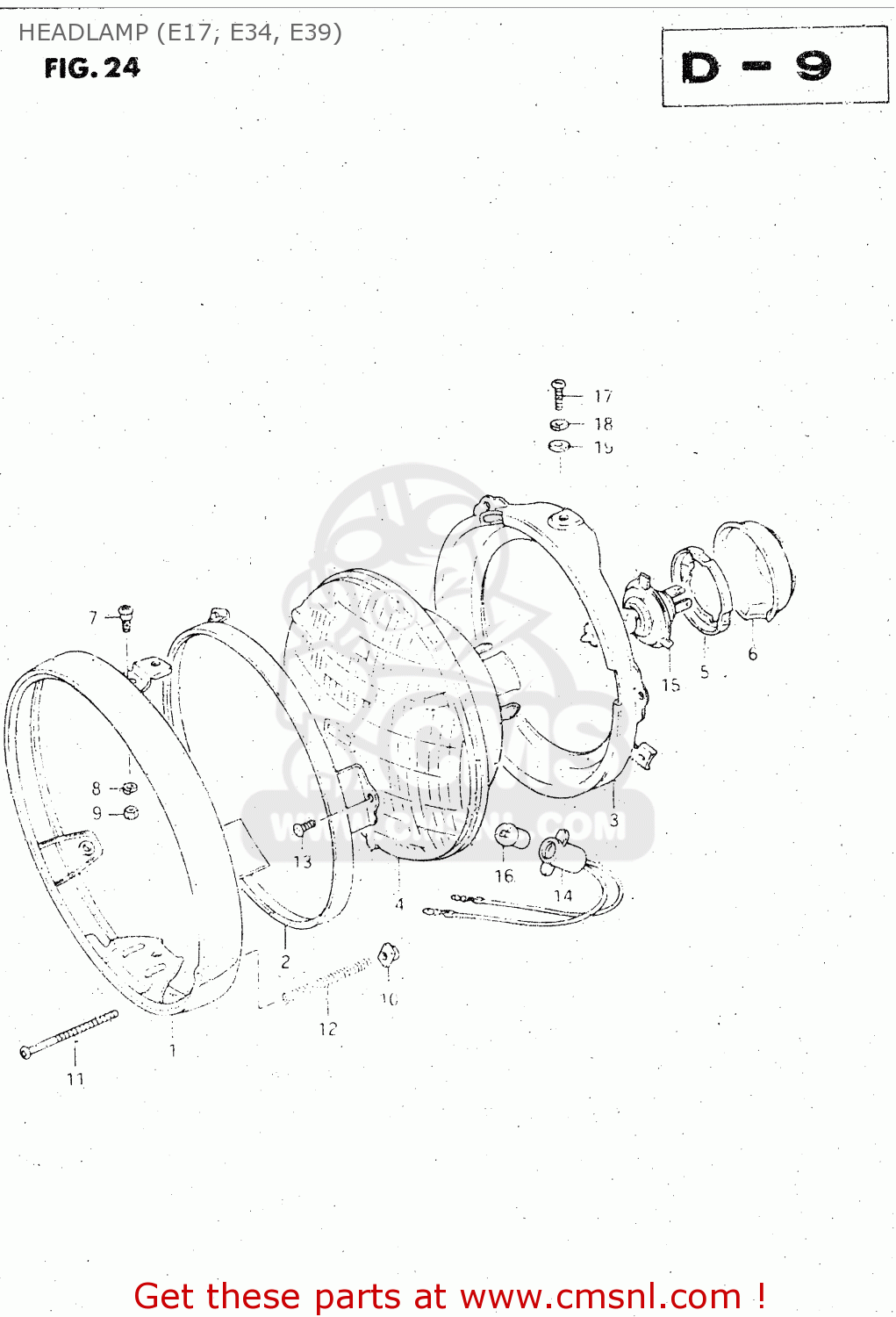

Headlamp (e17, e34, e39) diagram GS500E 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3510034450999
ref: 0

HEADLAMP ASSY

€ 208.00

3511145030
ref: 1

RIM

€ 53.50

3512745030
ref: 2

RETAINING RING

€ 19.50

3513045030
ref: 3

RING

€ 29.50

3512134440
ref: 4

UNIT,HEAD LAMP

€ 114.50

3513634400
ref: 5

SETTING,BULB

€ 4.50

3517345000
ref: 6

COVER,HEADLAMP SOCKET

€ 14.50

3518115611
ref: 7

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832121058
ref: 8

LOCK WASHER

€ 2.00

0831011048
ref: 9

NUT

€ 2.00

3515215611
ref: 10

NUT

€ 3.50

3515145620
ref: 11

SCREW

€ 0.00

3515431900
ref: 12

SPRING,ADJUSTING

€ 3.50

0211204088
ref: 13

SCREW

€ 1.50

3611828660
ref: 14

SOCKET

€ 11.50

0947112060
ref: 15
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 16
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

0912505022
ref: 17

SCREW

€ 3.50

0916205003
ref: 18

WASHER,LOCK

€ 2.00

0916906021
ref: 19

WASHER

€ 2.50
