STARTER CLUTCH

GS500E 1981 (X) GENERAL EXPORT (E01)

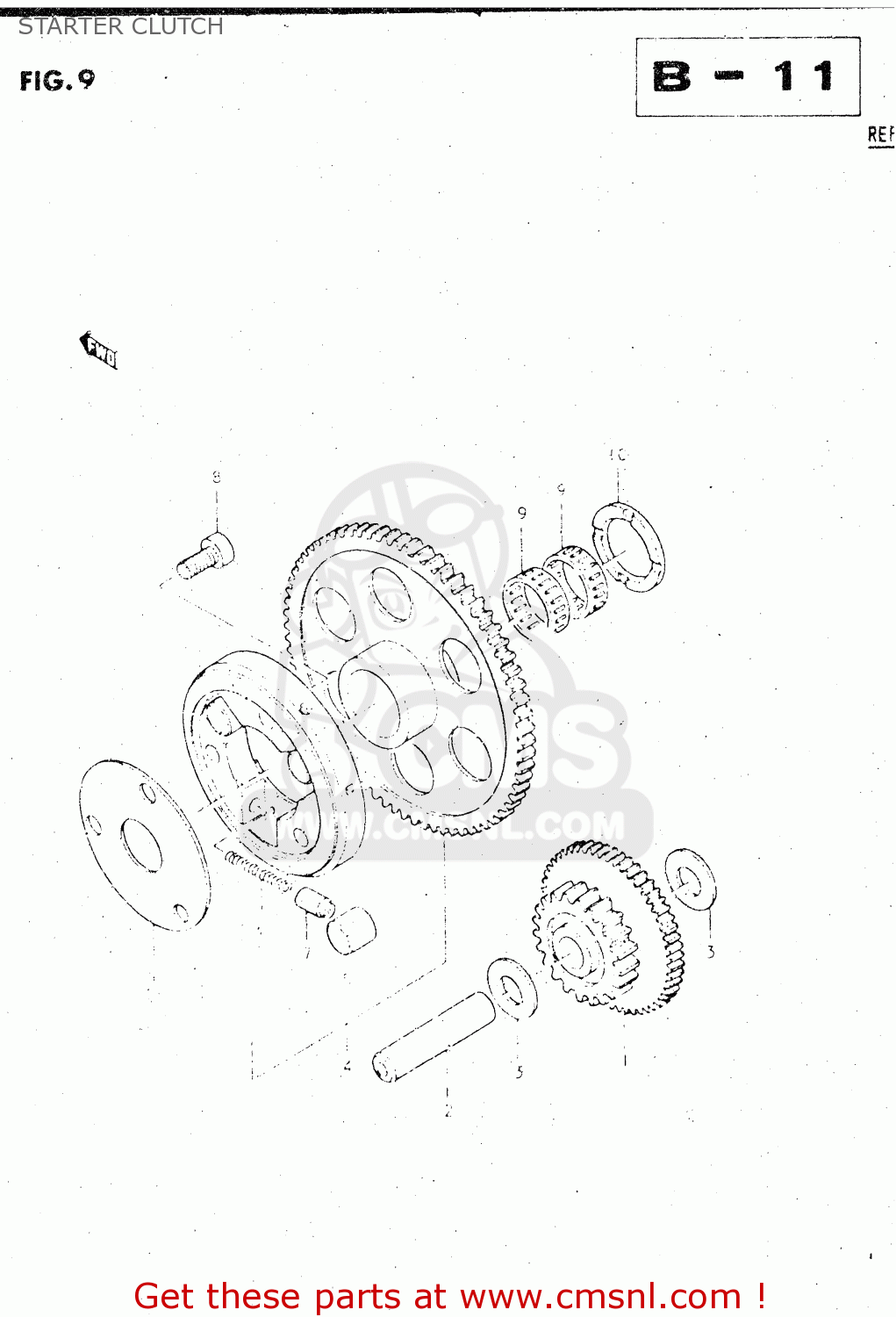

Starter clutch diagram GS500E 1981 (X) GENERAL EXPORT (E01)

STARTER CLUTCH GS500E 1981 (X) GENERAL EXPORT (E01)

STARTER CLUTCH GS500E 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1261147000
ref: 1

GEAR,STARTER IDLE

€ 64.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4

1260047812
ref: 4

CLUTCH SET,STARTER

€ 148.00

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8

BOLT

€ 3.00

9

0926325030
ref: 9

ROLLER BEARING (25X30X9

€ 15.00

10

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00

11

1264945000
ref: 11

SHIM,STARTER CLUTCH HUB

€ 7.00
