CYLINDER

GS500E 1982 (Z) GENERAL EXPORT (E01)

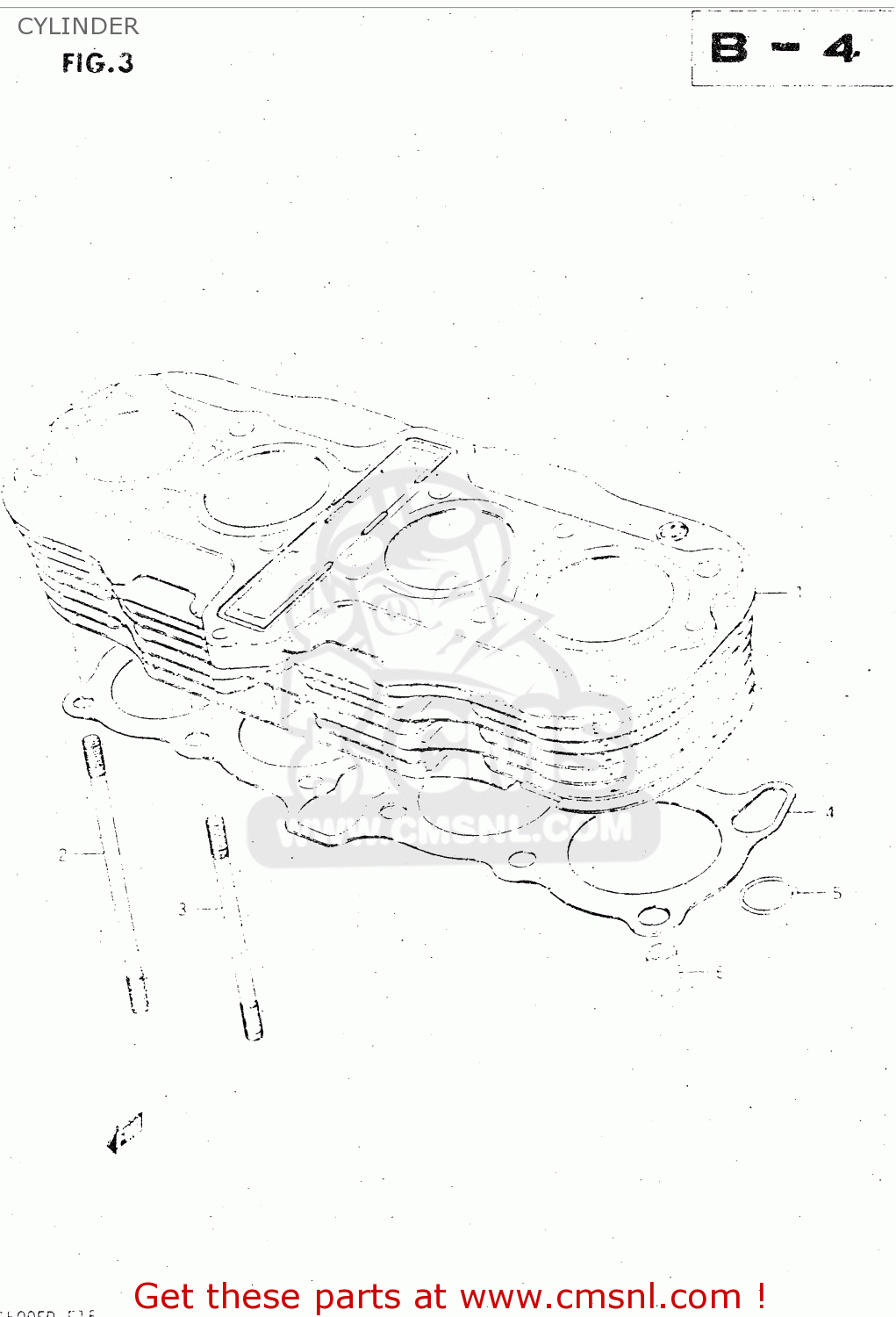

Cylinder diagram GS500E 1982 (Z) GENERAL EXPORT (E01)

CYLINDER GS500E 1982 (Z) GENERAL EXPORT (E01)

CYLINDER GS500E 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121047311
ref: 1

CYLINDER

€ 0.00

2

0910808061
ref: 2

BOLT,STUD

€ 7.00

3

0910808062
ref: 3

BOLT,STUD

€ 4.50

4

1124147081
ref: 4

GASKET,CYLINDER (MCA)

€ 14.00

5

0928021005A
ref: 5

INVALID PARTNUMBER

€ 2.00

6

0920613001
ref: 6

PIN

€ 2.50
