STARTING MOTOR
GS500E 1982 (Z) GENERAL EXPORT (E01)

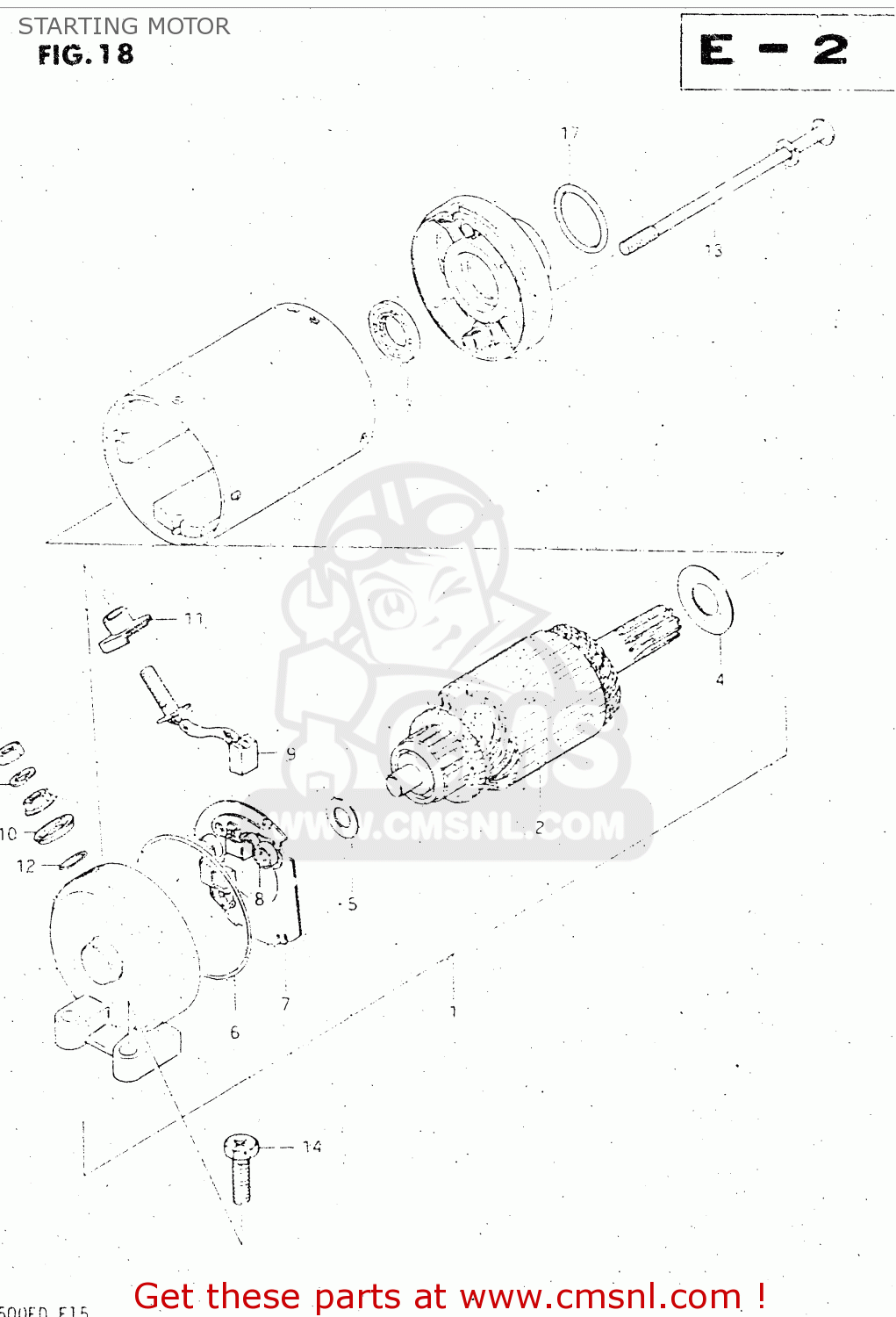

Starting motor diagram GS500E 1982 (Z) GENERAL EXPORT (E01)
STARTING MOTOR GS500E 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3110047010
ref: 1
MOTOR ASSEMBLY,STARTING
€ 704.50
2
3131144110
ref: 2
ARMATURE
€ 255.00
3
3115345010
ref: 3
SEAL,OIL
€ 19.50
4
3136110200
ref: 4
RING,SNAP
€ 2.50
5
3136147010
ref: 5
SHIM,ARMATURE
€ 3.50
6
3126444110
ref: 6
O RING
€ 8.00
7
3113244110
ref: 7
HOLDER,BRUSH
€ 47.00
8
3113565010
ref: 8
SPRING
€ 3.00
9
3113044110
ref: 9
BRUSH (+)
€ 12.50
10
3117244110
ref: 10
BUSHING (1)
€ 6.00
11
3117144110
ref: 11
BUSH,NO.2
€ 8.00
12
3114344110
ref: 12
O-RING
€ 3.00
13
3128144110
ref: 13
BOLT,STARTING MOTOR HOUSING
€ 11.50
14
0912806024
ref: 14
SCREW (6X25)
€ 2.50
15
0831022068
ref: 15
NUT 6MM
€ 2.50
16
0832121068
ref: 16
LOCK WASHER
€ 2.50
17
0928024001
ref: 17
O RING(D:2,ID:24.5)
€ 2.00
