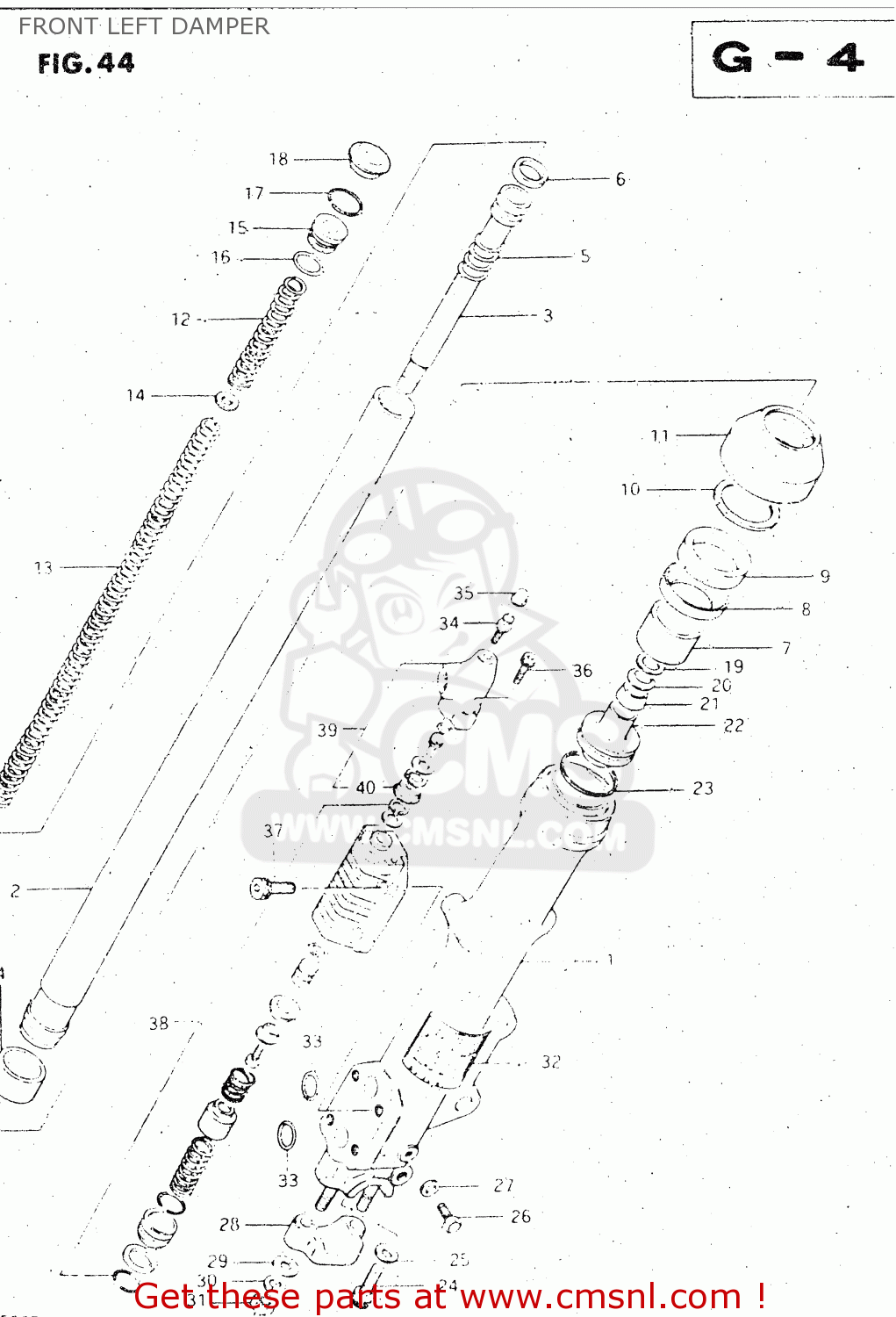

FRONT LEFT DAMPER

ref

part #

description

quantity

0

5110434530
ref: 0

FRONT LH DAMPER

€ 0.00

1

5114034310
ref: 1

OUTER TUBE LH

€ 0.00

2

5111034530
ref: 2

INNER TUBE

€ 104.00

3

5114634530
ref: 3

CYLINDER

€ 0.00

4

5112145400
ref: 4

PISTON

€ 22.00

5

5117745030
ref: 5

SPRING,FORK REBOUND

€ 4.00

6

5119631230
ref: 6

RING

€ 7.50

7

5115245400
ref: 7

BUSH,GUIDE

€ 14.00

8

5116845031
ref: 8

SPACER,SEAL

€ 5.00

9

5115334200
ref: 9

OIL SEAL,FRONT FORK

€ 14.00

10

5115645440
ref: 10

CIRCLIP,FORK OIL SEAL

€ 3.50

11

5157134200
ref: 11

BOOT

€ 19.50

12

5117134530
ref: 12

SPRING (A)

€ 0.00

13

5118434530
ref: 13

SPRING (B)

€ 19.00

14

5119247200
ref: 14

WASHER,SPRING

€ 2.50

15

5117547400
ref: 15

SPRING SEAT B

€ 5.50

16

5111731030
ref: 16

O-RING

€ 3.50

17

5116947400
ref: 17

RING,STOPPER

€ 2.50

18

5118931230
ref: 18

CAP

€ 6.50

19

5112634310
ref: 19

VALVE

€ 2.50

20

5112734310
ref: 20

SPRING,VALVE

€ 3.00

21

5112534310
ref: 21

VALVE,OIL LOCK PIEACE

€ 7.00

22

5119534310
ref: 22

PIECE,FRONT FORK OIL LOCK

€ 21.00

23

5112334310
ref: 23

PISTON RING,FRONT FORK

€ 10.50

24

5114748130
ref: 24

BOLT(8X27)

€ 3.50

25

5114831030
ref: 25

GASKET (NAS)

€ 4.00

26

0110706088
ref: 26

BOLT

€ 2.50

27

5118331030
ref: 27

GASKET,DRAIN,PLUG (NAS)

€ 4.00

28

5113244040291
ref: 28

HOLDER,AXLE

€ 38.50

29

0832221088
ref: 29

WASHER

€ 2.00

30

0832121088
ref: 30

LOCK WASHER

€ 2.00

31

0831012088
ref: 31

NUT

€ 2.00

32

5114934310
ref: 32

LABEL

€ 0.00

33

5179911420
ref: 33

O RING,FR FORK

€ 2.00

34

5177811420
ref: 34

BREATHER

€ 8.50

35

5177911420
ref: 35

CAP

€ 4.50

36

5179734310
ref: 36

BOLT

€ 2.50

37

5179634310
ref: 37

BOLT

€ 2.50

38

5170034831
ref: 38

MODULATOR VALVE SET

€ 55.50

39

5170034821
ref: 39

MODULATOR PLANGER SET

€ 0.00

40

5177711420
ref: 40

SEPARATOR,FRONT FORK MODULATOR

€ 5.00
