FRONT BRAKE HOSE
GS500E 1982 (Z) GENERAL EXPORT (E01)

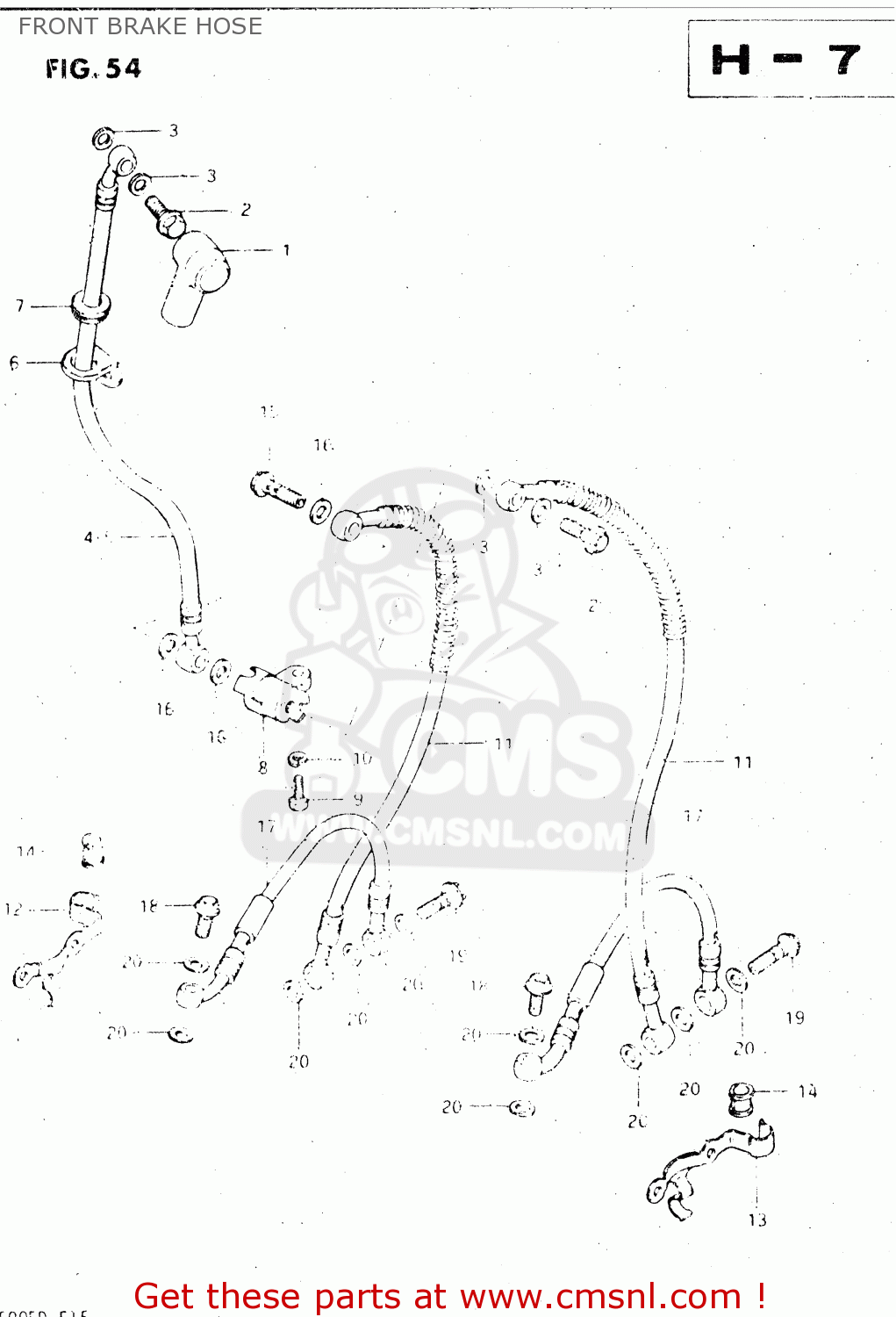

Front brake hose diagram GS500E 1982 (Z) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS500E 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
€ 8.50
2-1
0936010007
ref: 2-1
MODEL Z
BOLT,UNION
€ 6.50
2-2
0936010009
ref: 2-2
MODEL D
BOLT UNION
€ 6.50
3
0916110005
ref: 3
WASHER
€ 2.00
4
5948034210
ref: 4
HOSE,FRONT BRAKE
€ 0.00
5
5948047700
ref: 5
HOSE, BRAKE NO.1 (FLAT HANDLEBAR)
€ 0.00
6
5924331010
ref: 6
GUIDE,BRAKE HOSE NO.1
€ 3.00
7
0930814007
ref: 7
GROMMET
€ 4.00
8
5949145000
ref: 8
JOINT,BRAKE HOSE
€ 29.00
9
0110706208
ref: 9
BOLT
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
€ 2.50
11
5924047300
ref: 11
HOSE, BRAKE NO.2
€ 0.00
12
5927034500
ref: 12
CLAMP RH
€ 8.00
13
5926034500
ref: 13
CLAMP LH
€ 8.00
14
5924449000
ref: 14
BUSH,BRAKE HOSE GUIDE,NO.2
€ 4.50
15
0936010008
ref: 15
BOLT,UNION
€ 7.00
16
0916110005
ref: 16
WASHER
€ 2.00
17
5952045910
ref: 17
HOSE,ANTI-NOSE DIVE
€ 66.50
18
0936010021
ref: 18
BOLT UNION
€ 5.50
19
0936010008
ref: 19
BOLT,UNION
€ 7.00
20
0916110005
ref: 20
WASHER
€ 2.00
