COWLING (MODEL K/L OPTIONAL)

GS500E 1990 (L) USA (E03)

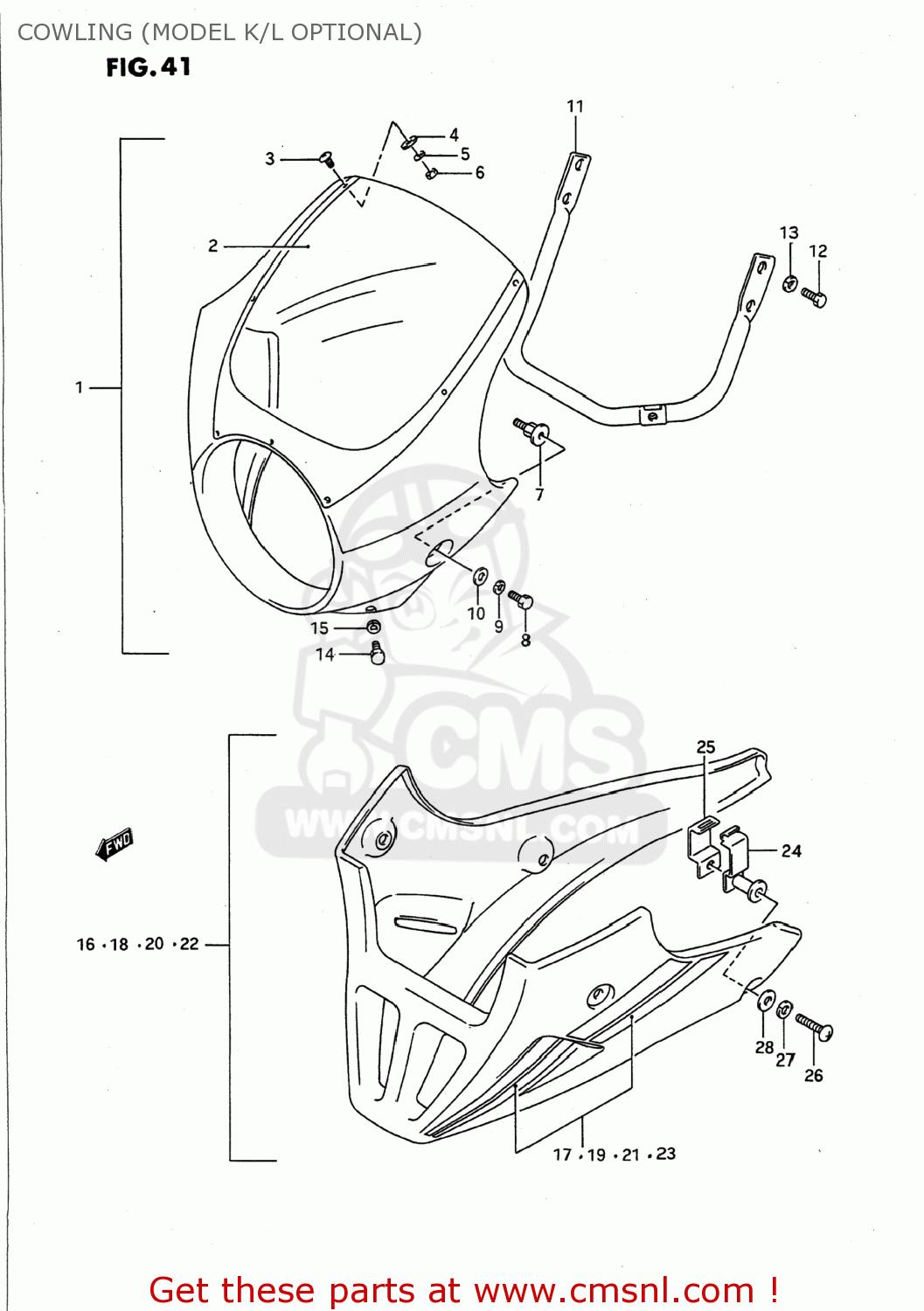

Cowling (model k/l optional) diagram GS500E 1990 (L) USA (E03)

COWLING (MODEL K/L OPTIONAL) GS500E 1990 (L) USA (E03)
COWLING (MODEL K/L OPTIONAL) GS500E 1990 (L) USA (E03)
COWLING (MODEL K/L OPTIONAL) GS500E 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9440201D5022R
ref: 1-1
COVER SET,UPPER COWLING (W
€ 803.00
1-2
9440201D5028V
ref: 1-2
94402-01D60-28V
COVER SET,UPPER COWLING
€ 486.00
1-3
9440201D5033J
ref: 1-3
94402-01D60-33J
COVER SET,UPPER COWLING
€ 543.50
2
9443201D50
ref: 2
SCREEN
€ 140.00
3
0214204105
ref: 3
02142-0410A
SCREW
0214204105
€ 1.50
4
0832221045
ref: 4
08322-0104A
WASHER
€ 5.00
5
0832121045
ref: 5
08321-0104A
LOCK WASHER
€ 2.00
6
0831011045
ref: 6
08310-0004A
NUT
€ 2.00
7
9474101D50
ref: 7
BOLT,COWLING HEADLAMP
9474101D50
€ 10.50
8
0120406167
ref: 8
BOLT
0120406167
€ 2.00
9
0832101067
ref: 9
WASHER,LOCK
0832101067
€ 2.50
10
0916006006
ref: 10
09160-06084
WASHER
0916006006
€ 2.00
11
9451001D50
ref: 11
BRACE,UPPER COWLING
9451001D50
€ 151.00
12
0120406167
ref: 12
BOLT
0120406167
€ 2.00
13
0832201067
ref: 13
WASHER
0832201067
€ 2.00
14
0120406127
ref: 14
BOLT
0120406127
€ 1.50
15
0832101067
ref: 15
WASHER,LOCK
0832101067
€ 2.50
16-1
9440101D5022R
ref: 16-1
94470-01810-22R
COWLING ASSY,UNDER (WHITE)
€ 620.50
16-1
9440101D5022R
ref: 16-1
94470-01810-22R
COWLING ASSY,UNDER (WHITE)
€ 620.50
16-2
9440101D5028V
ref: 16-2
COWLING ASSY,UNDER (RED)
€ 506.50
16-2
9440101D5028V
ref: 16-2
COWLING ASSY,UNDER (RED)
€ 506.50
16-3
9440101D5033J
ref: 16-3
94470-01870-33J
COWLING ASSY,UNDER (BLACK)
€ 613.00
16-3
9440101D5033J
ref: 16-3
94470-01870-33J
COWLING ASSY,UNDER (BLACK)
€ 613.00
17-1
6819001D502DN
ref: 17-1
TAPE SET,UNDER COWLING
€ 0.00
17-2
6819001D508SH
ref: 17-2
TAPE SET,UNDER COWLING
€ 0.00
17-3
6819001D503YR
ref: 17-3
TAPE SET,UNDER COWLING
€ 0.00
17-4
6819001D503VN
ref: 17-4
TAPE SET,UNDER COWLING
€ 0.00
18
944700181022R
ref: 18
COVER SET,UNDER COWLING (W
€ 620.50
19
6819001D502DN
ref: 19
TAPE SET,UNDER COWLING
€ 0.00
20
944700182028V
ref: 20
COVER SET,UNDER COWLING (R
€ 506.50
21
6819001D503YR
ref: 21
TAPE SET,UNDER COWLING
€ 0.00
22
944700183033J
ref: 22
94470-01870-33J
COVER SET,UNDER COWLING (B
€ 613.00
23-1
6819001D508SH
ref: 23-1
TAPE SET,UNDER COWLING
€ 0.00
23-2
6819001D503VN
ref: 23-2
TAPE SET,UNDER COWLING
€ 0.00
24
9458001D50
ref: 24
BRACKET,UNDER COWLING OUTER
9458001D50
€ 29.50
25
9458201D50
ref: 25
BRACKET,UNDER COWLING INNER
9458201D50
€ 17.50
26
0214206457
ref: 26
SCREW
0214206457
€ 2.00
27
0832101067
ref: 27
WASHER,LOCK
0832101067
€ 2.50
28
0916006006
ref: 28
09160-06084
WASHER
0916006006
€ 2.00
