HANDLE SWITCH

GS500E 1990 (L) USA (E03)

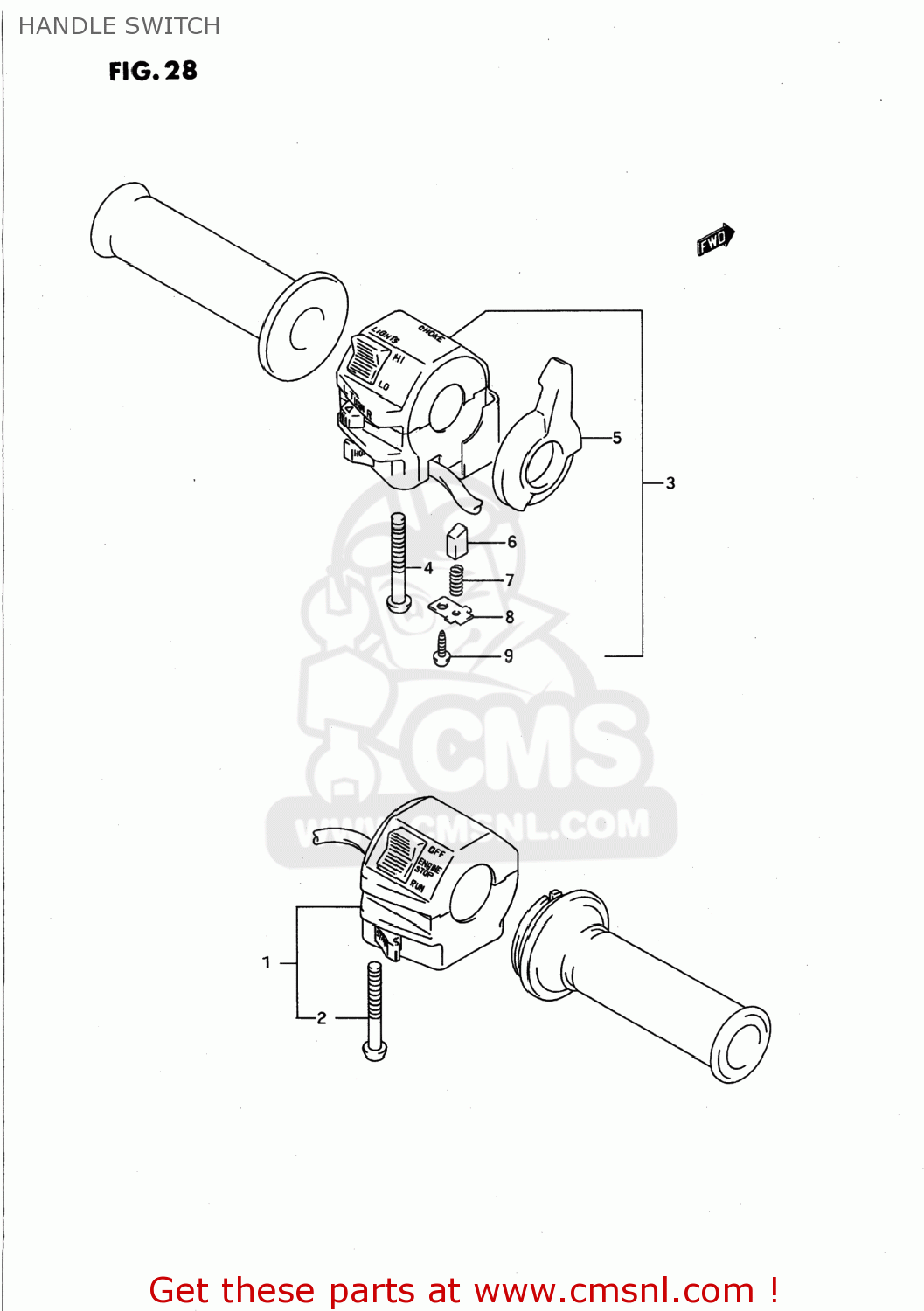

Handle switch diagram GS500E 1990 (L) USA (E03)

HANDLE SWITCH GS500E 1990 (L) USA (E03)

HANDLE SWITCH GS500E 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3720001D10
ref: 1-1
37200-01D30

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 92.50

1-2

3720001D11
ref: 1-2
37200-01D30

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 92.50

2

0211205455
ref: 2
02112-0545B

SCREW, 5X45

€ 4.00

3-1

3740001D11
ref: 3-1
37400-01D30

SWITCH ASSEMBLY,HANDLE,LEFT

€ 101.00

3-2

3740001D12
ref: 3-2
37400-01D30

SWITCH ASSEMBLY,HANDLE,LEFT

€ 101.00

4

0211205455
ref: 4
02112-0545B

SCREW, 5X45

€ 4.00

5

3748130B00
ref: 5
37481-30B01

LEVER,CHOKE

€ 13.00

6

3748230B00
ref: 6

PIECE,SLIDE

€ 4.00

7

3748330B00
ref: 7

SPRING

€ 7.50

8

3748630B00
ref: 8

PLATE

€ 3.00

9

0351104125
ref: 9
03511-0412A

SCREW

€ 1.50
