FRONT CALIPER (MODEL T)

GS500E 1990 (L) USA (E03)

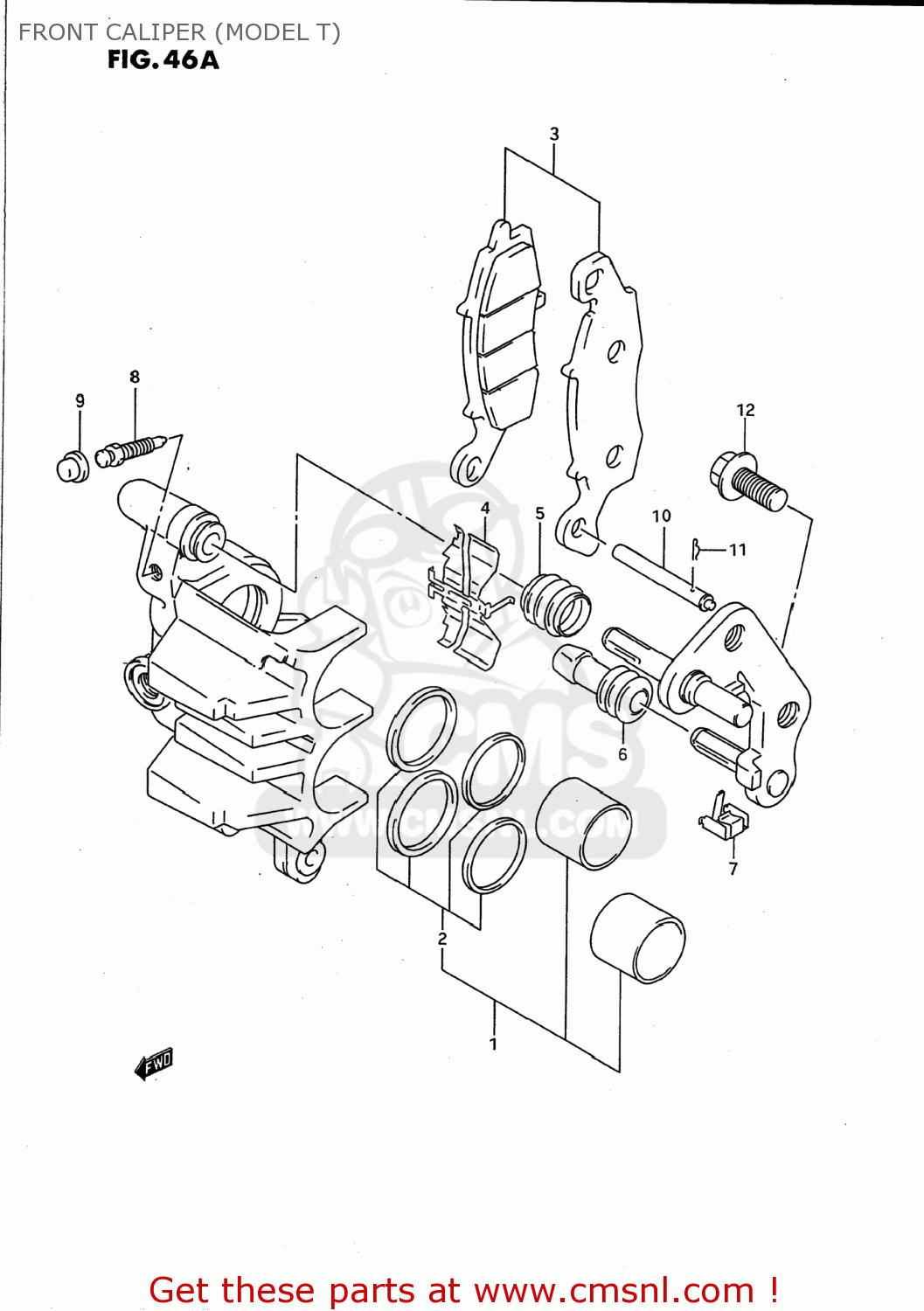

Front caliper (model t) diagram GS500E 1990 (L) USA (E03)

FRONT CALIPER (MODEL T) GS500E 1990 (L) USA (E03)

FRONT CALIPER (MODEL T) GS500E 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity



5910033D00
ref:
59100-33D81-999

CALIPER ASSEMBLY,FRONT,RIGHT

€ 552.00

1

5930033830
ref: 1
59300-33831

PISTON SET

€ 65.50

2

5930033840
ref: 2
59300-33841

SEAL SET,PISTON

€ 26.50

3

5910033850
ref: 3

PAD SET (NAS)

€ 55.50

4

5911533D00
ref: 4

SPRING,PAD,R

€ 12.00

5

5911244B00
ref: 5

BOOT,AXLE

€ 8.00

6

5931336500
ref: 6

INSULATOR,AXLE

€ 5.50

7

5911633D00
ref: 7

GUIDE,PAD

€ 6.50

8

5912118410
ref: 8

BLEEDER

€ 8.00

9

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

10

5914144B01
ref: 10

PIN,PAD

€ 8.00

11

6914245000
ref: 11

CLIP,PAD PIN

€ 4.50

12

0155010253
ref: 12
01550-1025A

BOLT

€ 3.00
