REAR COMBINATION LAMP
GS500E 1990 (L) USA (E03)

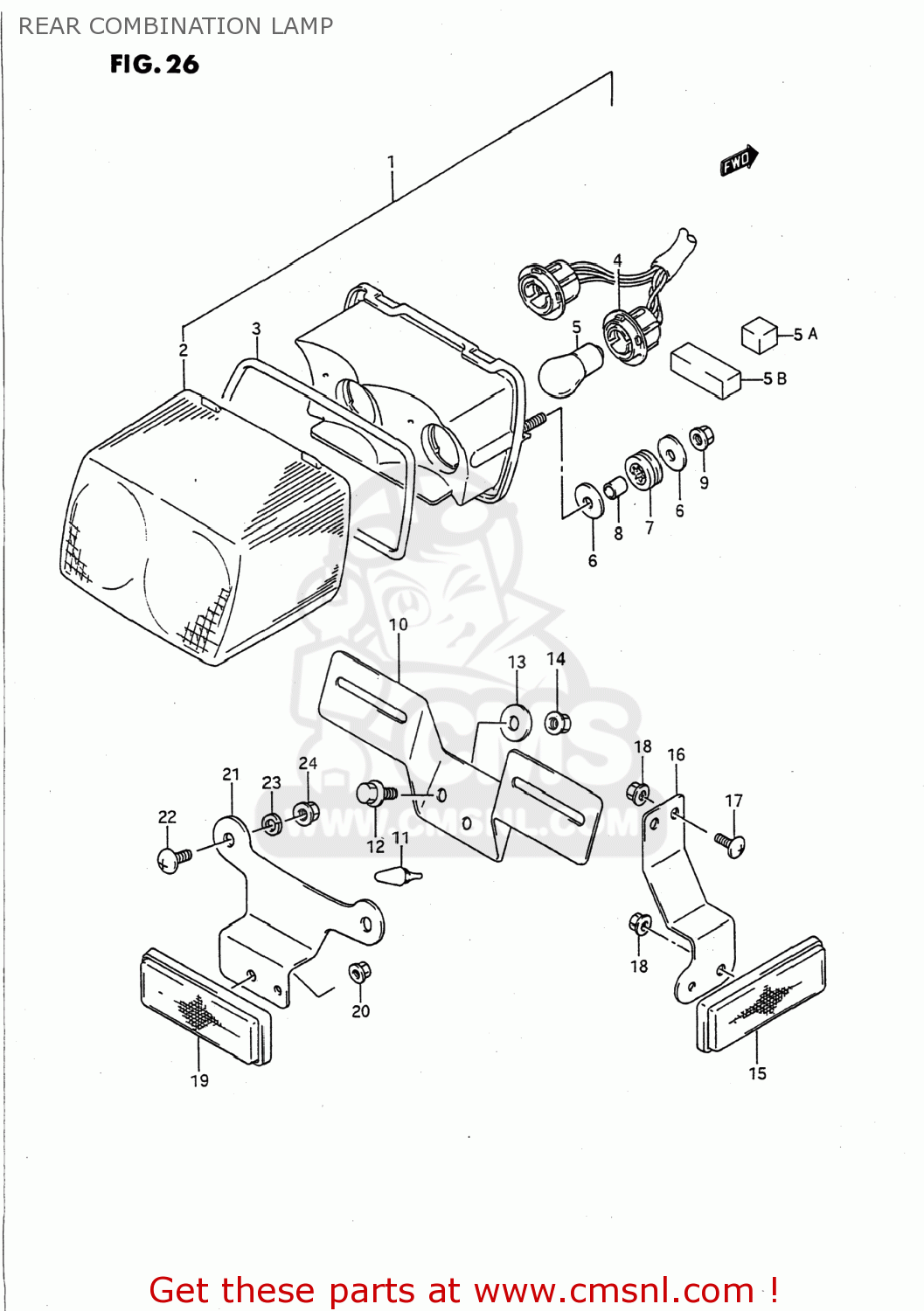

Rear combination lamp diagram GS500E 1990 (L) USA (E03)
REAR COMBINATION LAMP GS500E 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571001D10
ref: 1-1
35710-01D11
LAMP ASSEMBLY,REAR COMBINATION
€ 126.00
1-2
3571001D11
ref: 1-2
LAMP ASSY,RR COMBINATION
€ 126.00
2
3571201D10
ref: 2
LENS
€ 22.00
3
3571301D00
ref: 3
GASKET (NAS)
€ 7.00
4-1
3571801D10
ref: 4-1
35718-12D00
SOCKET
€ 40.00
4-2
3571812D00
ref: 4-2
SOCKET
€ 40.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
€ 6.00
5A
3573301D00
ref: 5A
35733-10D00
CUSHION,REAR COMBINATION LAMP
€ 3.00
5B
3573310D00
ref: 5B
CUSHION,REAR LENS
€ 3.00
6-1
0916006086
ref: 6-1
09160-06077
WASHER (6.5X20X1)
€ 2.00
6-2
0916006077
ref: 6-2
WASHER(6.5X20X1.2)
€ 2.00
7
0932009009
ref: 7
CUSHION
€ 5.00
8
0918006152
ref: 8
09180-06262
SPACER
€ 3.00
9-1
0831616066
ref: 9-1
08316-1006B
NUT
€ 2.50
9-2
0831012066
ref: 9-2
08310-0006A
NUT
€ 2.00
9-3
0831000063
ref: 9-3
08310-0006A
NUT 6MM
€ 2.00
10
3592701D10
ref: 10
BRACKET,LICENSE PLATE
€ 0.00
11
0932106028
ref: 11
CUSHION
€ 3.00
12-1
0151706164
ref: 12-1
01550-0616A
BOLT
€ 2.50
12-2
0155006163
ref: 12-2
01550-0616A
BOLT
€ 2.50
12-3
0214206163
ref: 12-3
02142-0616A
SCREW
€ 2.50
13-1
0916006059
ref: 13-1
09160-06088
WASHER,COVER,FRONT
€ 2.00
13-2
0916006077
ref: 13-2
WASHER(6.5X20X1.2)
€ 2.00
14-1
0831626066
ref: 14-1
08316-1006B
NUT
€ 2.00
14-2
0831012066
ref: 14-2
08310-0006A
NUT
€ 2.00
14-3
0831000063
ref: 14-3
08310-0006A
NUT 6MM
€ 2.00
15-1
3597000A10
ref: 15-1
REFLEX REFLECTOR,RR
€ 22.00
15-2
3597024D60
ref: 15-2
REFLECTOR ASSY,RR
€ 19.50
16-1
3597701D10
ref: 16-1
35977-01D11
BRACKET,REAR SIDE,REAR,RIGHT
€ 5.50
16-2
3597801D10
ref: 16-2
35977-01D11
SPACER
€ 5.50
16-3
3597701D11
ref: 16-3
BRACKET,RR SIDE REFLECTOR
€ 5.50
17-1
0214205124
ref: 17-1
02142-0512A
SCREW, FRONT & REAR
€ 1.50
17-2
0214205123
ref: 17-2
02142-0512A
SCREW 5X12
€ 1.50
18-1
0831626055
ref: 18-1
08316-2005A
NUT
€ 2.00
18-2
0831011056
ref: 18-2
08310-0005A
NUT
€ 2.50
18-3
0831000053
ref: 18-3
08310-0005A
NUT
€ 2.50
19-1
3597000A21
ref: 19-1
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
19-2
3597024D60
ref: 19-2
REFLECTOR ASSY,RR
€ 19.50
20-1
0831626055
ref: 20-1
08316-2005A
NUT
€ 2.00
20-2
0831011056
ref: 20-2
08310-0005A
NUT
€ 2.50
20-3
0831000053
ref: 20-3
08310-0005A
NUT
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
€ 3.50
22-1
0214206125
ref: 22-1
02142-0612A
SCREW 6X12
€ 2.00
22-2
0214206123
ref: 22-2
02142-0612A
SCREW 6X12
€ 2.00
23
0832131064
ref: 23
08321-0106A
WASHER
€ 2.00
24-1
0831626065
ref: 24-1
08316-2006A
NUT
€ 2.00
24-2
0831000063
ref: 24-2
08310-0006A
NUT 6MM
€ 2.00
