CAM CHAIN
GS500E 1994 (R) USA (E03)

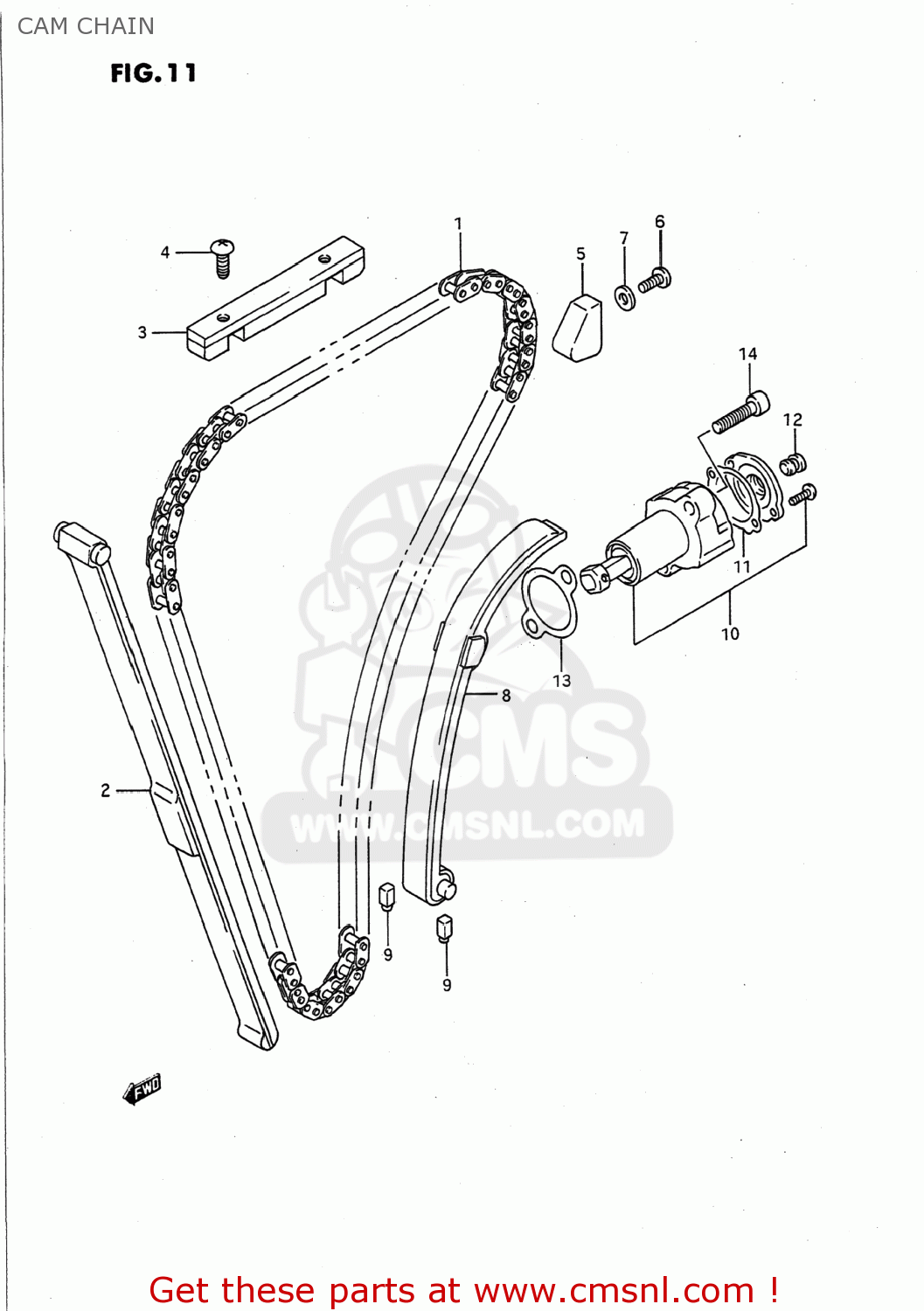

Cam chain diagram GS500E 1994 (R) USA (E03)
CAM CHAIN GS500E 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1278249200
ref: 3
GUIDE,CAM CHAIN
€ 33.50
4-1
0211205107
ref: 4-1
SCREW
€ 2.00
4-2
0211205103
ref: 4-2
02112-0510A
SCREW
€ 2.00
5
1279145040
ref: 5
GUIDE,CAM CHAIN
€ 8.50
6-1
0151706125
ref: 6-1
01550-0612A
BOLT 6X12
€ 2.50
6-2
0155006123
ref: 6-2
01550-0612A
BOLT
€ 2.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
€ 2.00
8
1281001D00
ref: 8
TENSIONER,CAM CHAIN
€ 54.50
9
1281444101
ref: 9
CUSHION,CAM CHAIN TENSIONER
€ 8.50
10-1
1283001D01
ref: 10-1
12830-01D12
ADJUSTER ASSEMBLY,TENSIONER
€ 77.50
10-2
1283001D11
ref: 10-2
12830-01D12
ADJUSTER ASSEMBLY,TENSIONER
€ 77.50
11-1
1283838200
ref: 11-1
12838-38200-H17
GASKET,ADJUSTER CAP (MCA)
€ 3.00
11-2
1283838200H17
ref: 11-2
GASKET,ADJUSTER CAP (NAS)
€ 3.00
12
1283938200
ref: 12
PLUG,ADJUSTER
€ 2.00
13
1283724A10
ref: 13
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
14-1
0711006255
ref: 14-1
07130-0625B
BOLT
€ 3.00
14-2
0713006253
ref: 14-2
07130-0625B
BOLT,CL.COVER
€ 3.00
