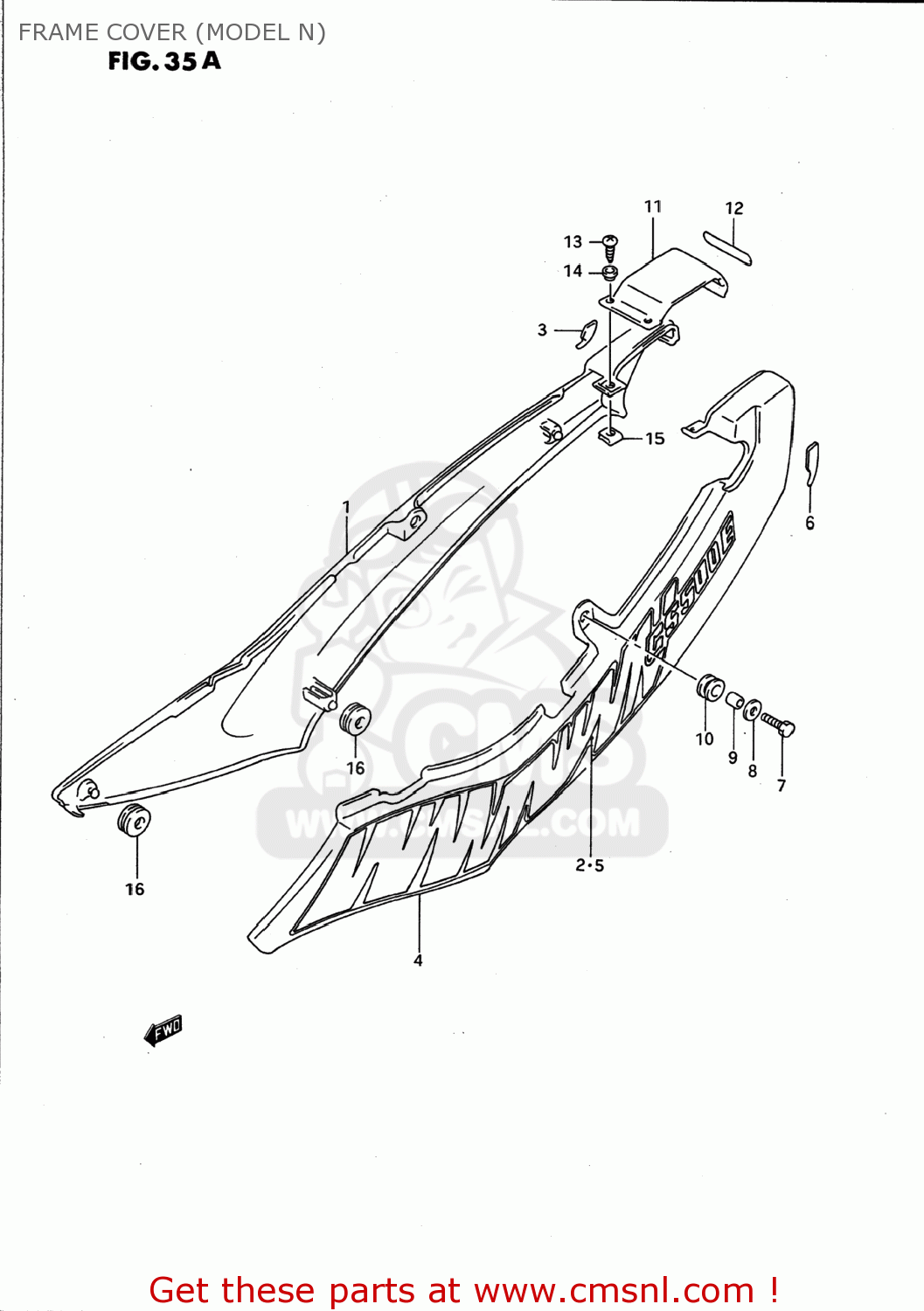

FRAME COVER (MODEL N)

ref

part #

description

quantity

1-1

4711001D901HU
ref: 1-1

COVER COMP,FRAME,RIGHT

€ 142.00

1-2

4711001D9028V
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 145.50

1-3

4711001D9033J
ref: 1-3

COVER COMP,FRAME,RIGHT

€ 158.50

2-1

6813001D70L32
ref: 2-1

TAPE SET,FRAME COVER STRIPE

€ 108.50

2-2

6813001D70L34
ref: 2-2

TAPE SET,FRAME COVER STRIPE

€ 66.50

2-3

6813001D70L33
ref: 2-3

TAPE SET,FRAME COVER STRIPE

€ 59.00

3

4711901D00
ref: 3

PROTECTOR,FRAME COVER,R

€ 7.00

4-1

4721001D901HU
ref: 4-1

COVER COMP,FRAME,LEFT

€ 145.50

4-2

4721001D9028V
ref: 4-2

COVER COMP,FRAME,LEFT

€ 0.00

4-3

4721001D9033J
ref: 4-3

COVER COMP,FRAME,LEFT

€ 141.50

5-1

6814001D70L32
ref: 5-1

TAPE SET,FRAME COVER STRIPE

€ 108.50

5-2

6814001D70L34
ref: 5-2

TAPE SET,FRAME COVER STRIPE

€ 0.00

5-3

6814001D70L33
ref: 5-3

TAPE SET,FRAME COVER STRIPE

€ 50.50

6

4721901D00
ref: 6

PROTECTOR,FRAME COVER,L

€ 7.00

7

0912806006
ref: 7
09128-06057

BOLT(6X20)

€ 2.00

8

0916006057
ref: 8
09160-06109

WASHER

€ 2.00

9

0918006011
ref: 9
09180-06263

SPACER (6.1X9X9)

€ 2.00

10

0932009016
ref: 10

CUSHION

€ 2.50

11-1

4731001D201HU
ref: 11-1

COVER,FRAME CTR

€ 39.50

11-2

4731001D2038X
ref: 11-2

COVER,FRAME,CENTER

€ 46.00

11-3

4731001D2036X
ref: 11-3
47310-01D20-33J

COVER,FRAME,CENTER

€ 37.50

12-1

6816601D000JW
ref: 12-1

EMBLEM,SUZUKI(WHITE)

€ 6.00

12-2

6816601D0013Z
ref: 12-2

EMBLEM,FRAME COVER,CENTER

€ 3.50

13

0324105125
ref: 13
03241-0512A

SCREW

€ 1.50

14

0916105017
ref: 14

WASHER(5.2X14X1.5)

€ 3.00

15

0914805013
ref: 15

NUT

€ 1.50

16

0932008018
ref: 16

CUSHION

€ 4.00
