REAR CALIPER (MODEL K/L/M/N)
GS500E 1994 (R) USA (E03)

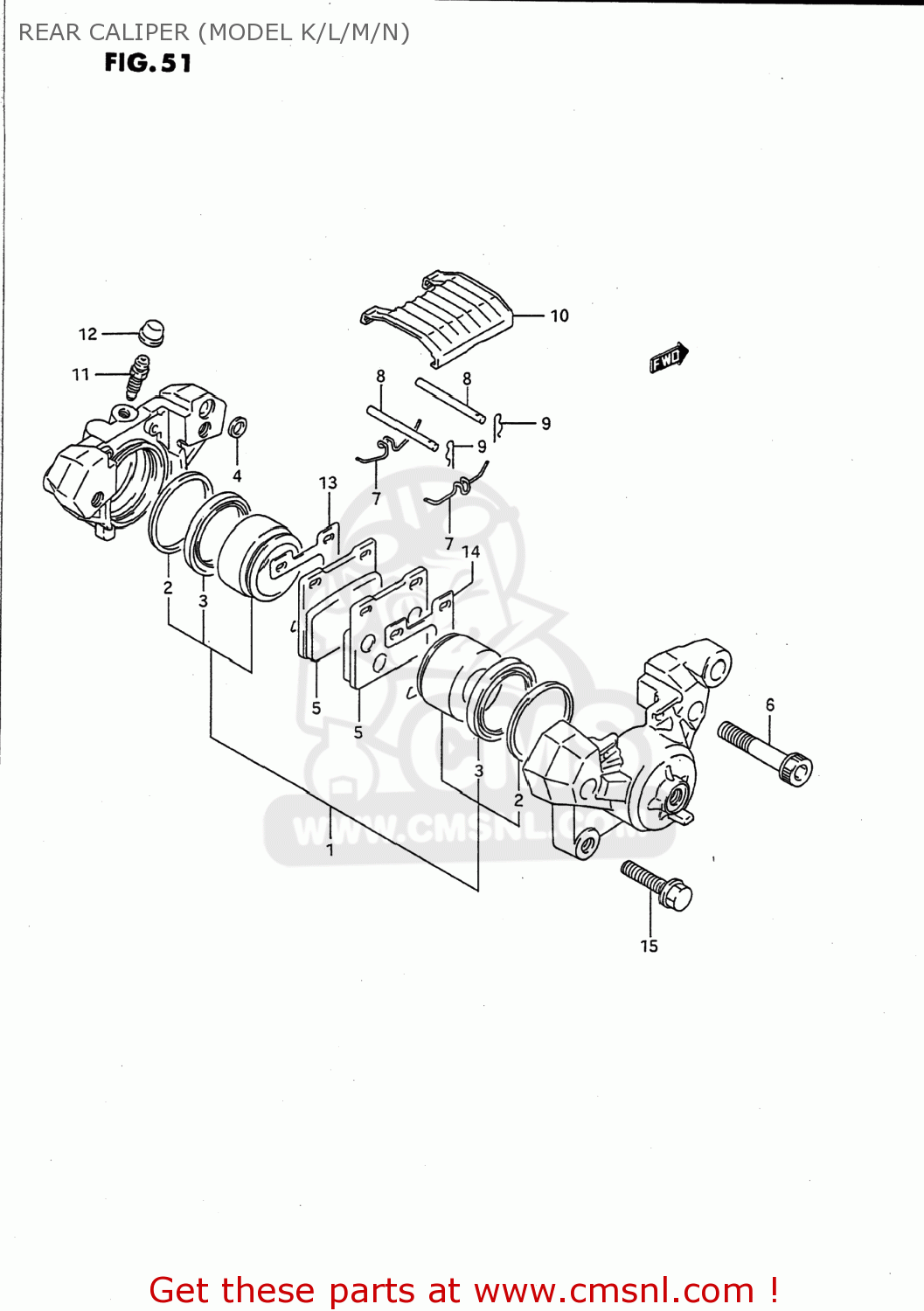

Rear caliper (model k/l/m/n) diagram GS500E 1994 (R) USA (E03)
REAR CALIPER (MODEL K/L/M/N) GS500E 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910001D00
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
6910001D00
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
6910001D01
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
6910001D01
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
6910001D02
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
1-1
6910027820
ref: 1-1
69100-27821
PISTON SET
€ 192.50
1-2
6910017830
ref: 1-2
PISTON SET
€ 103.50
1-2
6910017830
ref: 1-2
PISTON SET
€ 103.50
2
5910718410
ref: 2
69107-05CF0
SEAL,PISTON
€ 17.00
3
5910816700
ref: 3
BOOT
€ 16.50
4
6910734200
ref: 4
SEAL,JOINT
€ 12.00
5
6913020A10
ref: 5
69100-20810
PAD,BRAKE
€ 41.50
6-1
6914516700
ref: 6-1
59145-05C50
BOLT
€ 9.50
6-2
5914517C00
ref: 6-2
BOLT
€ 7.00
7
5914316700
ref: 7
SPRING
€ 7.50
8
6914145000
ref: 8
PIN,PAD
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
€ 4.50
10
5915116701
ref: 10
COVER
€ 13.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
5937120C00
ref: 13
SHIM,INNER
€ 7.50
14
5938120C00
ref: 14
SHIM,OUTER
€ 7.50
15
0151708304
ref: 15
01550-0830A
BOLT
€ 3.00
