CAM SHAFT - VALVE
GS500E 1994 (R) USA (E03)

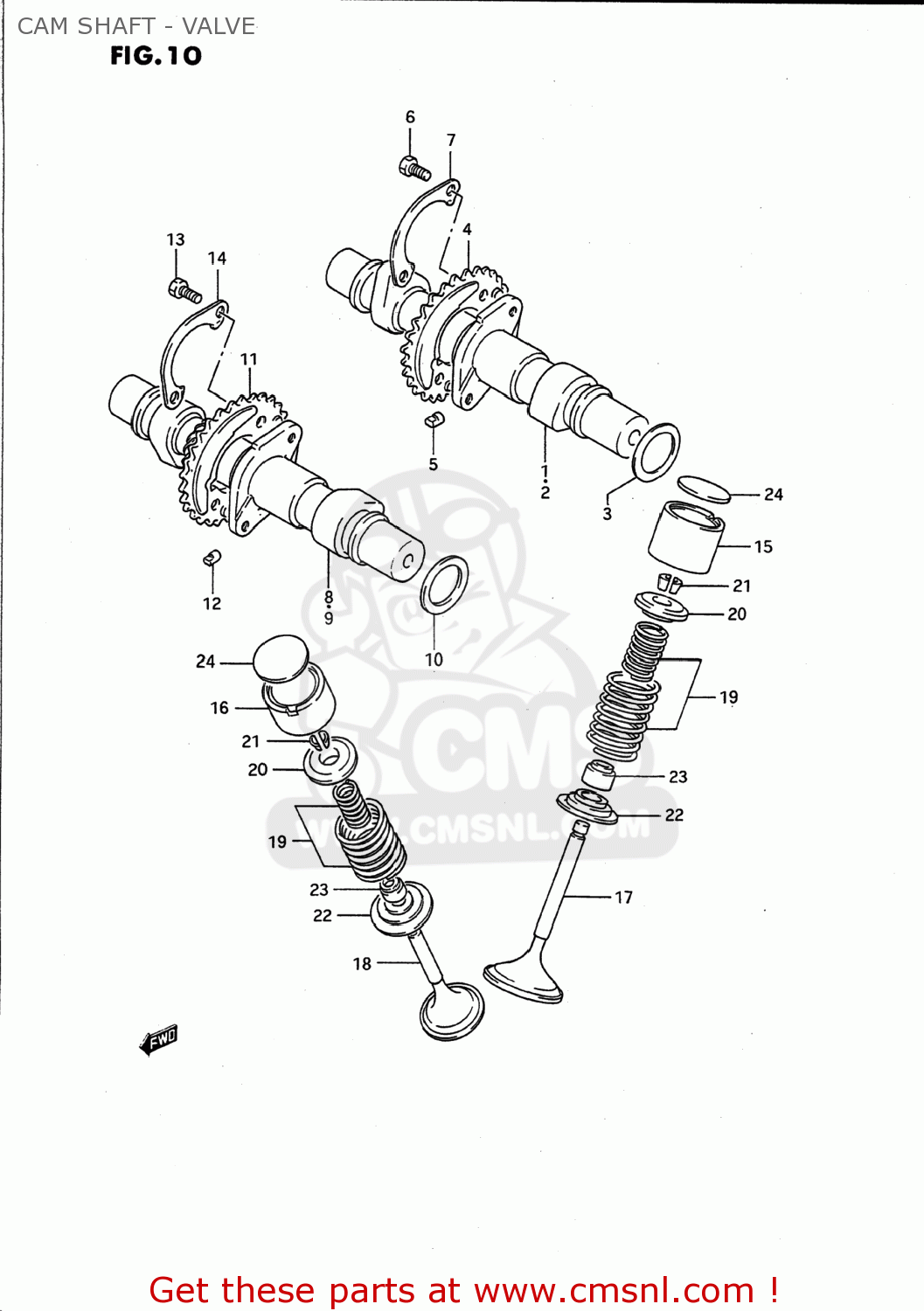

Cam shaft - valve diagram GS500E 1994 (R) USA (E03)
CAM SHAFT - VALVE GS500E 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271101D00
ref: 1
12710-01810
CAMSHAFT
€ 348.00
2
1271001810
ref: 2
CAMSHAFT SET,INTAKE
€ 348.00
3-1
0821122301
ref: 3-1
09181-22167
WASHER,THRUST
€ 3.00
3-2
0916022074
ref: 3-2
WASHER(22X30X1.1)
€ 6.50
3-3
0916022075
ref: 3-3
WASHER(22X30X1.2)
€ 6.50
3-4
0916022076
ref: 3-4
WASHER(22X30X1.3)
€ 7.00
4
1274045042
ref: 4
SPROCKET,CAMSHAFT INTAKE
€ 67.00
5
1274844000
ref: 5
PIN,SPROCKET
€ 4.50
6
0911106027
ref: 6
BOLT(6X12.5)
€ 1.50
7
1274744000
ref: 7
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
8
1272101D00
ref: 8
12720-01810
CAMSHAFT,EXHAUST
€ 368.50
9
1272001810
ref: 9
CAMSHAFT SET,EXHAUST
€ 368.50
10-1
0821122301
ref: 10-1
09181-22167
WASHER,THRUST
€ 3.00
10-2
0916022074
ref: 10-2
WASHER(22X30X1.1)
€ 6.50
10-3
0916022075
ref: 10-3
WASHER(22X30X1.2)
€ 6.50
10-4
0916022076
ref: 10-4
WASHER(22X30X1.3)
€ 7.00
11
1275045041
ref: 11
SPROCKET,EXHAUST CAM(NT:30)
€ 65.00
12
1274844000
ref: 12
PIN,SPROCKET
€ 4.50
13
0911106027
ref: 13
BOLT(6X12.5)
€ 1.50
14
1274744000
ref: 14
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
15-1
1289145001
ref: 15-1
TAPPET,INTAKE
€ 45.00
15-2
1289115500
ref: 15-2
12891-15501
TAPPET
€ 45.00
16
1289115500
ref: 16
12891-15501
TAPPET
€ 45.00
17
1291101D00
ref: 17
VALVE,INTAKE
€ 80.00
18
1291201D00
ref: 18
VALVE,EXHAUST
€ 79.50
19
1292044110
ref: 19
SPRING SET,VALVE
€ 13.50
20
1293145000
ref: 20
12931-45001
RETAINER,VALVE SPRING
€ 6.00
21
1293245010
ref: 21
COTTER VALVE
€ 2.50
22
1293345001
ref: 22
SEAT,VALVE SPRING
€ 5.50
23
0928907002
ref: 23
SEAL,OIL(7X14.4X9)
€ 3.00
24-1
1289245000215
ref: 24-1
SHIM,TAPPET(T:2.15)
€ 17.00
24-10
1289245000260
ref: 24-10
SHIM,TAPPET(T:2.60)
€ 16.00
24-11
1289245000265
ref: 24-11
SHIM,TAPPET(T:2.65)
€ 17.00
24-12
1289245000270
ref: 24-12
SHIM,TAPPET(T:2.70)
€ 17.00
24-13
1289245000275
ref: 24-13
SHIM,TAPPET(T:2.75)
€ 17.00
24-14
1289245000280
ref: 24-14
SHIM,TAPPET(T:2.80)
€ 16.50
24-15
1289245000285
ref: 24-15
SHIM,TAPPET(T:2.85)
€ 17.00
24-16
1289245000290
ref: 24-16
SHIM,TAPPET(T:2.90)
€ 17.00
24-17
1289245000295
ref: 24-17
SHIM,TAPPET(T:2.95)
€ 17.00
24-18
1289245000300
ref: 24-18
SHIM,TAPPET(T:3.00)
€ 17.00
24-19
1289245000305
ref: 24-19
SHIM,TAPPET(T:3.05)
€ 16.50
24-2
1289245000220
ref: 24-2
SHIM,TAPPET(T:2.20)
€ 16.50
24-20
1289245000310
ref: 24-20
SHIM,TAPPET(T:3.10)
€ 17.00
24-3
1289245000225
ref: 24-3
SHIM,TAPPET(T:2.25)
€ 17.00
24-4
1289245000230
ref: 24-4
SHIM,TAPPET(T:2.30)
€ 16.00
24-5
1289245000235
ref: 24-5
SHIM,TAPPET(T:2.35)
€ 16.50
24-6
1289245000240
ref: 24-6
SHIM,TAPPET(T:2.40)
€ 17.00
24-7
1289245000245
ref: 24-7
SHIM,TAPPET(T:2.45)
€ 17.00
24-8
1289245000250
ref: 24-8
SHIM,TAPPET(T:2.50)
€ 16.00
24-9
1289245000255
ref: 24-9
SHIM,TAPPET(T:2.55)
€ 16.50
25
1280045811
ref: 25
SHIM SET,TAPPET
€ 1,227.00
25
1280045811
ref: 25
SHIM SET,TAPPET
€ 1,227.00
26
9900069521
ref: 26
CASE,SHIM
€ 152.50
