CAM CHAIN
GS500ESK 1995 (S) BRAZIL (E37)

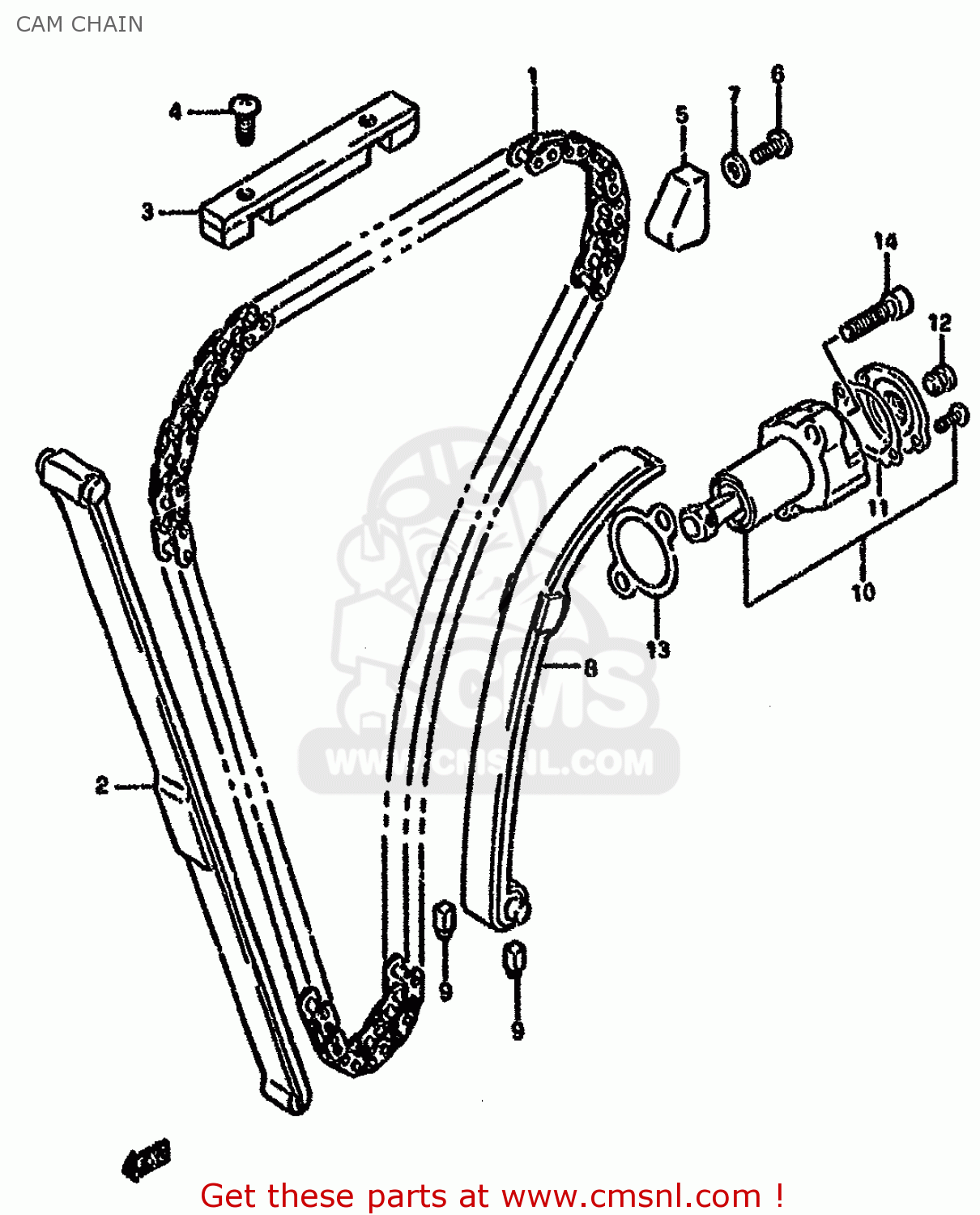

Cam chain diagram GS500ESK 1995 (S) BRAZIL (E37)
CAM CHAIN GS500ESK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1278249200
ref: 3
GUIDE,CAM CHAIN
€ 33.50
4-1
0211205107
ref: 4-1
MODEL K/L/M/N/P
SCREW
€ 2.00
4-2
0211205103
ref: 4-2
MODEL R/S/T
SCREW
€ 2.00
5
1279145040
ref: 5
GUIDE,CAM CHAIN
€ 8.50
6-1
0151706125
ref: 6-1
MODEL K/L/M/N/P
BOLT 6X12
€ 2.50
6-2
0155006123
ref: 6-2
MODEL R/S/T
BOLT
€ 2.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
€ 2.00
8
1281001D00
ref: 8
TENSIONER,CAM CHAIN
€ 54.50
9
1281444101
ref: 9
CUSHION,CAM CHAIN TENSIONER
€ 8.50
10-1
1283001D02
ref: 10-1
MODEL K/L-12830-01D0
ADJUSTER ASSEMBLY,TENSIONER
€ 77.50
10-2
1283001D11
ref: 10-2
MODEL M/N/P/R/S/T
ADJUSTER ASSEMBLY,TENSIONER
€ 77.50
11
1283838200H17
ref: 11
GASKET,ADJUSTER CAP (NAS)
€ 3.00
12
1283938200
ref: 12
PLUG,ADJUSTER
€ 2.00
13
1283724A10
ref: 13
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
14-1
0711006255
ref: 14-1
MODEL K/L/M/N/P
BOLT
€ 3.00
14-2
0713006253
ref: 14-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
