FRONT WHEEL
GS500ESK 1995 (S) BRAZIL (E37)

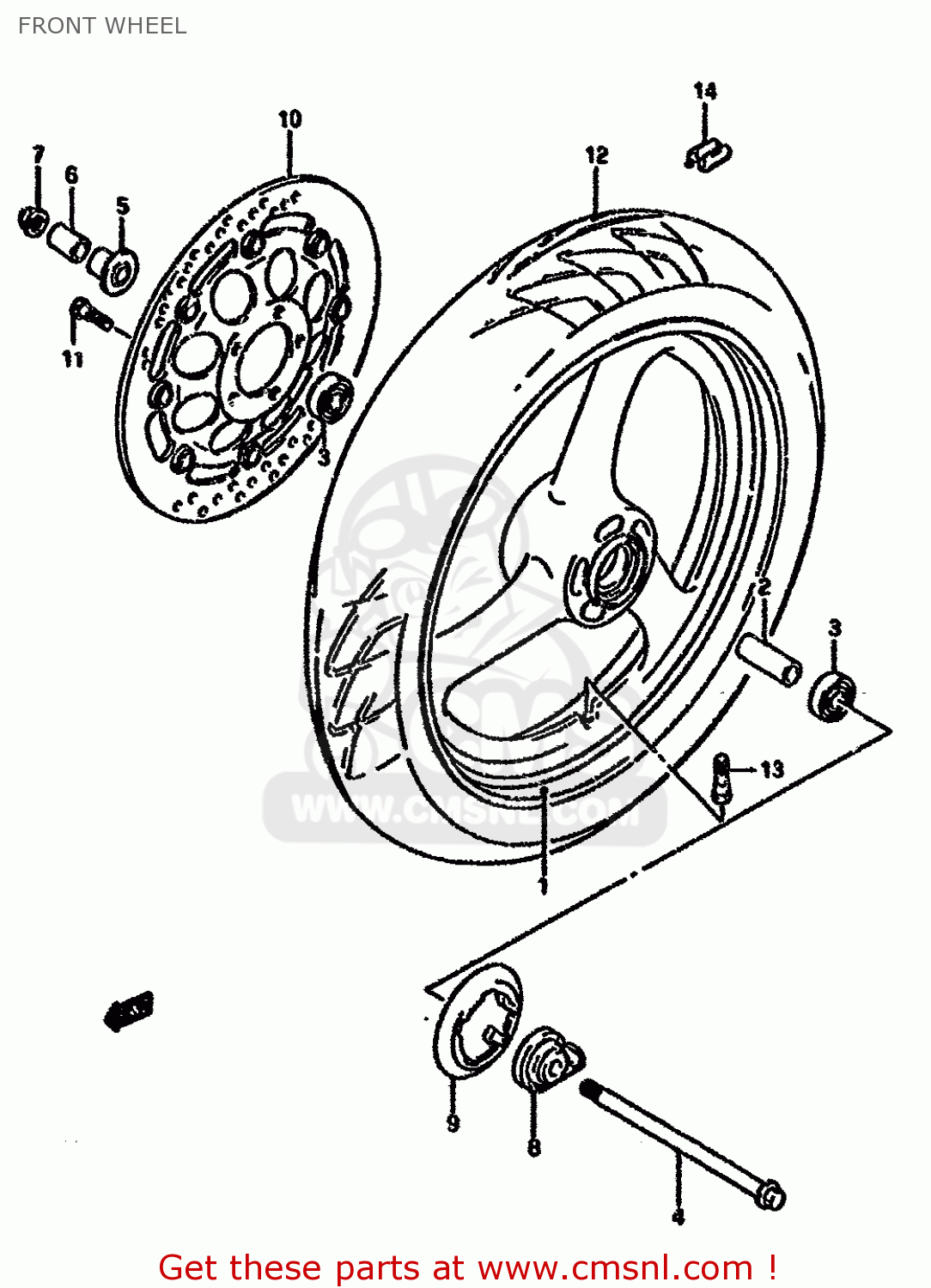

Front wheel diagram GS500ESK 1995 (S) BRAZIL (E37)
FRONT WHEEL GS500ESK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411134C0028W
ref: 1-1
MODEL K/L/M/N/P/R/S
WHEEL,FRONT (MT3.00X17)
€ 480.50
1-2
5411134C0017U
ref: 1-2
MODEL T
WHEEL,FRONT (MT3.00X17)
€ 622.00
2
0918015011
ref: 2
SPACER(15.3X21.7X63)
€ 7.50
3
0812363027
ref: 3
BEARING
€ 19.00
4-1
5471101D10
ref: 4-1
-54711-01D00
AXLE FRONT
€ 38.50
4-2
5471101D00
ref: 4-2
AXLE,FR
€ 38.50
5
5474033410
ref: 5
SPACER,FR AXLE
€ 15.50
6
5474101D00
ref: 6
SPACER,FR AXLE,R
€ 12.50
7
0915912028
ref: 7
NUT
€ 4.50
8
5460001D01
ref: 8
BOX ASSY,SPEEDOMETER GEAR
€ 115.00
9-1
5487138C0030H
ref: 9-1
MODEL K/L/M/N/P/R/S
COVER,FR HUB,L
€ 18.00
9-2
5487138C000SR
ref: 9-2
MODEL T
COVER,FRONT HUB,LEFT
€ 9.50
10-1
5921001D00
ref: 10-1
MODEL K
DISC,BRAKE
€ 266.50
10-2
5921001D11
ref: 10-2
MODEL L/M/N
DISC,FR BRAKE,R
€ 266.50
10-3
5921001D30
ref: 10-3
MODEL P/R/S
DISC,FR BRAKE,R
€ 229.00
10-4
5921001D40
ref: 10-4
MODEL T
DISC,FR BRAKE,R
€ 367.50
11
0910608082
ref: 11
BOLT 8X33
€ 6.00
12
5511001D00
ref: 12
TIRE,T/L(110/70-17 54H)
€ 234.00
13-1
4313075150
ref: 13-1
MODEL K/L/M-43130-78
VALVE,TIRE
€ 14.50
13-2
4313078030
ref: 13-2
VALVE,TIRE TR413 BS
€ 14.50
13-3
4313024A00
ref: 13-3
MODEL N/P/R/S/T-4313
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
13-4
4313024A11
ref: 13-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
14-1
5541100A00
ref: 14-1
BALANCER,WHEEL (10G)
€ 6.50
14-2
5541200A01
ref: 14-2
BALANCER,WHEEL (20G)
€ 7.00
14-3
5541300A01
ref: 14-3
BALANCER,WHEEL
€ 4.00
