TURNSIGNAL LAMP (MODEL S/T)
GS500ESK 1995 (S) BRAZIL (E37)

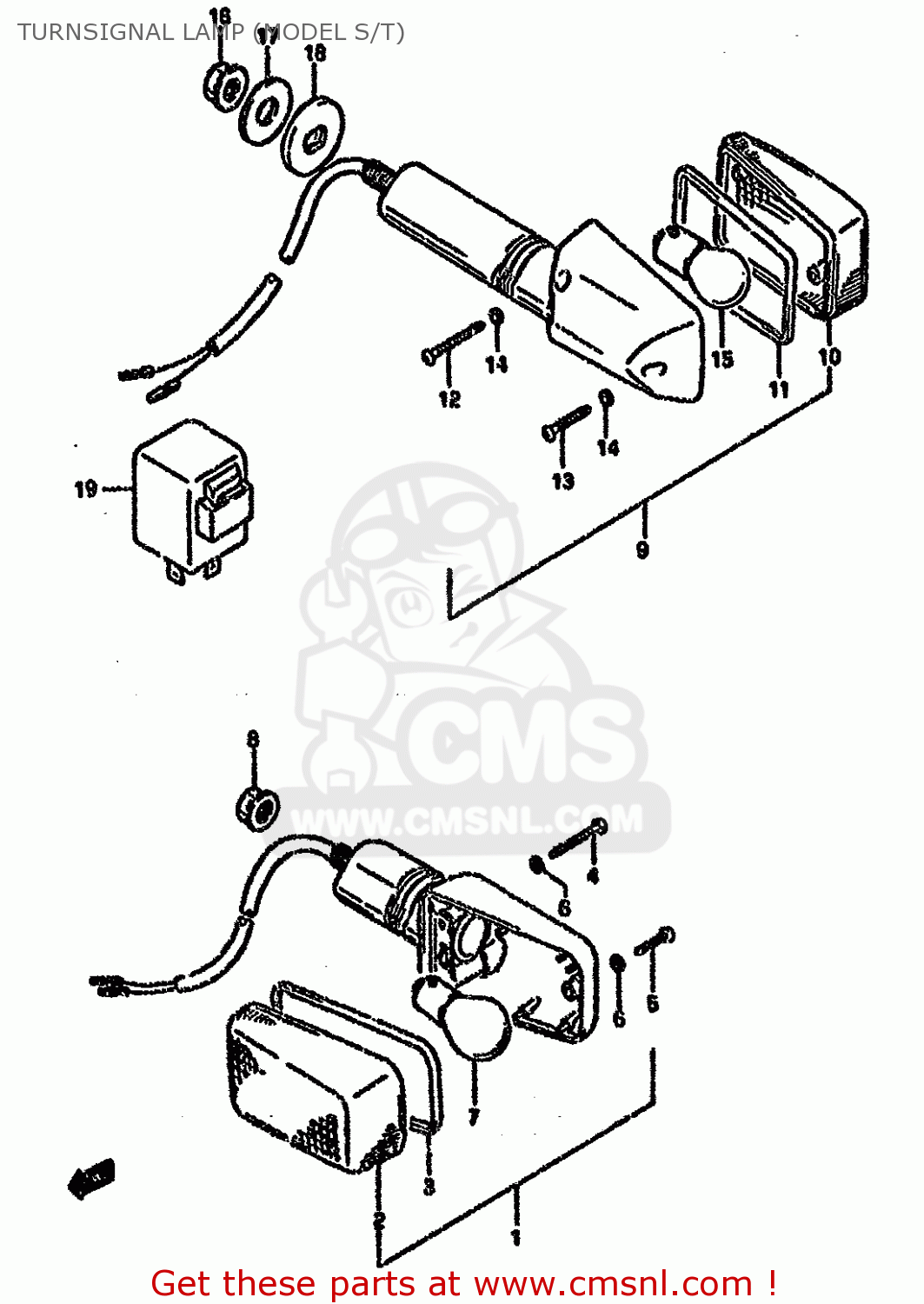

Turnsignal lamp (model s/t) diagram GS500ESK 1995 (S) BRAZIL (E37)
TURNSIGNAL LAMP (MODEL S/T) GS500ESK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560101D10
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
€ 70.50
1-2
3560101D00
ref: 1-2
E4,E37,E39,P9
LAMP ASSY,FR TURN SIGNAL
€ 81.00
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
0831620103
ref: 8
NUT
€ 3.50
9
3560317C41999
ref: 9
LAMP ASSY,RR TURNSIGNAL
€ 76.00
10
3565217C20
ref: 10
LENS
€ 6.50
11
3561327A00
ref: 11
GASKET (NAS)
€ 3.00
12
3562327A00
ref: 12
SCREW(3X30)
€ 1.50
13
3572540511
ref: 13
SCREW
€ 1.50
14
3562727A02
ref: 14
GASKET (NAS)
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
€ 5.00
16
0831000103
ref: 16
NUT
€ 2.00
17
0916010501
ref: 17
WASHER(10.5X30X2.3)
€ 2.50
18
3569517C00
ref: 18
SPACER,RR TURNSIGNAL
€ 3.00
19
3861045D01
ref: 19
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
17-2
0831012108
ref: 17-2
MODEL P/R
NUT
€ 2.50
18-1
0916010094
ref: 18-1
MODEL K/L
WASHER(10.5X30X3.2)
€ 3.50
18-2
0916010006
ref: 18-2
MODEL M/N/P/R
WASHER (10.5X30X2.3)
€ 2.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
€ 3.00
20
3861031X50
ref: 20
MODEL K/L/M/N-38610-
RELAY ASSY,TURNSIGNAL
€ 54.50
21-1
3861045091
ref: 21-1
MODEL K/L/M/N E22
RELAY ASSY,TUR
€ 67.50
21-2
3861045D00
ref: 21-2
MODEL P
RELAY,TURN SIGNAL
€ 68.50
21-3
3861045D01
ref: 21-3
MODEL R
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
