REAR WHEEL
GS500ESK 1995 (S) BRAZIL (E37)

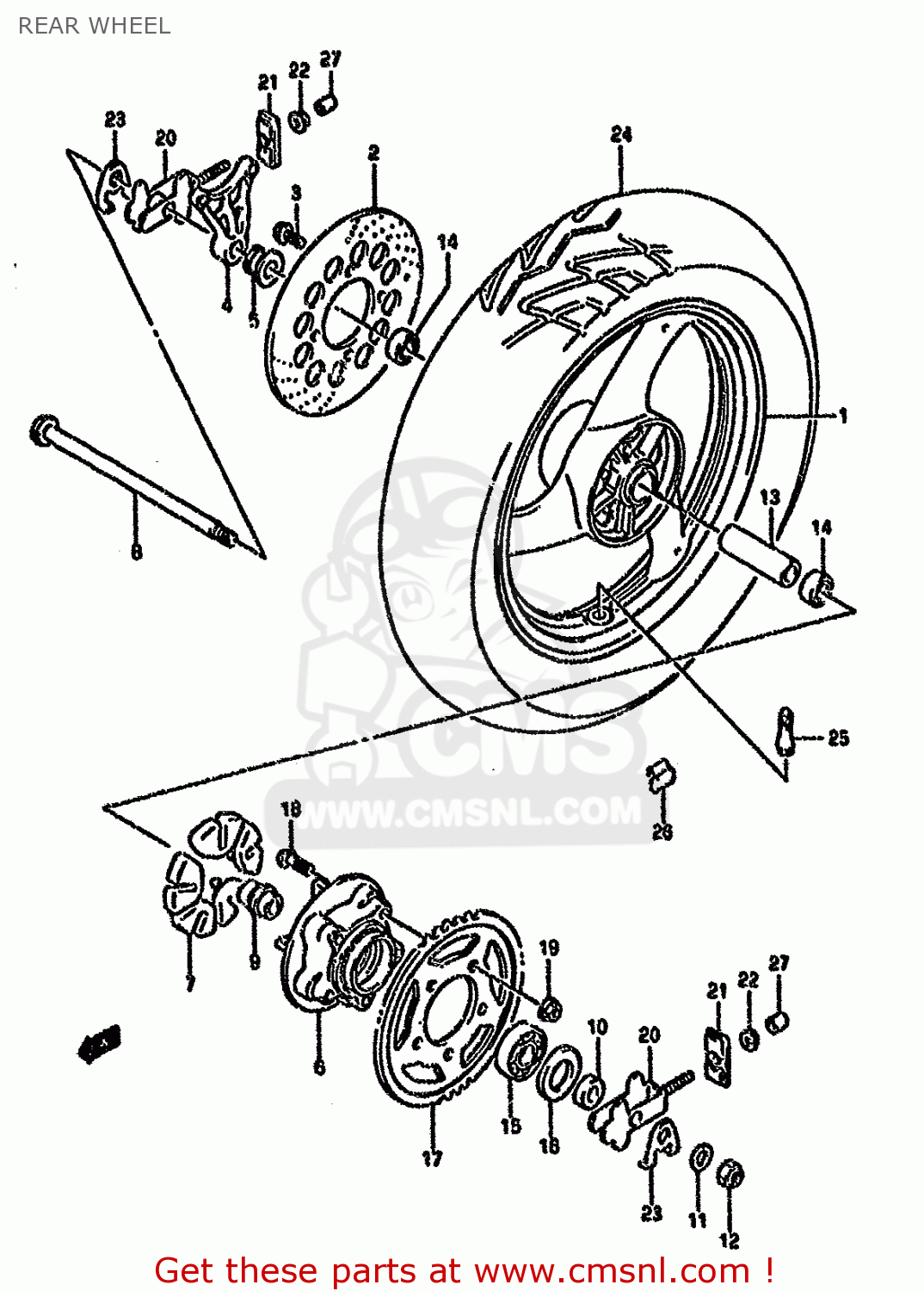

Rear wheel diagram GS500ESK 1995 (S) BRAZIL (E37)
REAR WHEEL GS500ESK 1995 (S) BRAZIL (E37)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411134C0028W
ref: 1-1
MODEL K/L/M/N/P/R/S
WHEEL,RR(MT3.50X17)
€ 717.50
1-2
6411134C0017U
ref: 1-2
MODEL T
WHEEL,REAR (MT3.50X17)
€ 580.00
2
6921101D00
ref: 2
DISC,RR BRAKE
€ 232.50
3-1
0712008305
ref: 3-1
MODEL K/L/M/N/P
BOLT
€ 3.50
3-2
0712008303
ref: 3-2
MODEL R/S/T
BOLT
€ 3.50
4-1
6972143400
ref: 4-1
MODEL K/L
BRACKET,RR,CALIPER
€ 51.50
4-2
6972101D00
ref: 4-2
MODEL M/N/P/R/S/T-69
BRACKET,RR CALIPER
€ 51.50
5
6474019C00
ref: 5
SPACER,RR AXLE,R
€ 19.00
6
6461101D00
ref: 6
DRUM,RR SPROCKET
€ 99.50
7
6465127A01
ref: 7
ABSORBER,RR HUB SHOCK
€ 6.00
8-1
6471101D10
ref: 8-1
-64711-01D00
AXLE,REAR
€ 43.50
8-2
6471101D00
ref: 8-2
AXLE,REAR
€ 43.50
9
6473301D00
ref: 9
RETAINER,RR SPROCKET DRUM
€ 17.50
10
6475119C00
ref: 10
SPACER,RR AXLE,L
€ 12.50
11
0916017047
ref: 11
WASHER(17X30X3)
€ 5.00
12
0831921168
ref: 12
NUT 16MM
€ 5.00
13
0918017067
ref: 13
SPACER(17.5X25X88)
€ 13.50
14
0814363037
ref: 14
BEARING
€ 23.00
15
0926225073
ref: 15
BEARING(25X62X17)
€ 21.50
16
0928535001
ref: 16
SEAL,OIL(35X62X8)
€ 9.00
17
6451101D04
ref: 17
SPROCKET,RR(NT:39-520)
€ 31.00
18
0911910059
ref: 18
BOLT
€ 3.50
19
0831931107
ref: 19
NUT
€ 3.00
20
6141001D00
ref: 20
ADJUSTER,CHAIN
€ 18.00
21
6142101D00
ref: 21
PLATE,CHAIN ADJUSTER GUIDE
€ 7.50
22
0831931087
ref: 22
NUT
€ 2.50
23
6471219C01
ref: 23
WASHER,CHAIN ADJUSTER
€ 5.50
24
6511001D00
ref: 24
TIRE,T/L(130/70-17 62H)
€ 171.50
25-1
4313075150
ref: 25-1
MODEL K/L/M-43130-78
VALVE,TIRE
€ 14.50
25-2
4313078030
ref: 25-2
VALVE,TIRE TR413 BS
€ 14.50
25-3
4313024A00
ref: 25-3
MODEL N/P/R/S/T-4313
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
25-4
4313024A11
ref: 25-4
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
26-1
5541100A00
ref: 26-1
BALANCER,WHEEL (10G)
€ 6.50
26-2
5541200A01
ref: 26-2
BALANCER,WHEEL (20G)
€ 7.00
26-3
5541300A01
ref: 26-3
BALANCER,WHEEL
€ 4.00
27
6144233300
ref: 27
E22
CAP,CHAIN ADJUSTER
€ 6.00
