CAM SHAFT - VALVE
GS500EU 1998 (W) (E04 E22 E39)

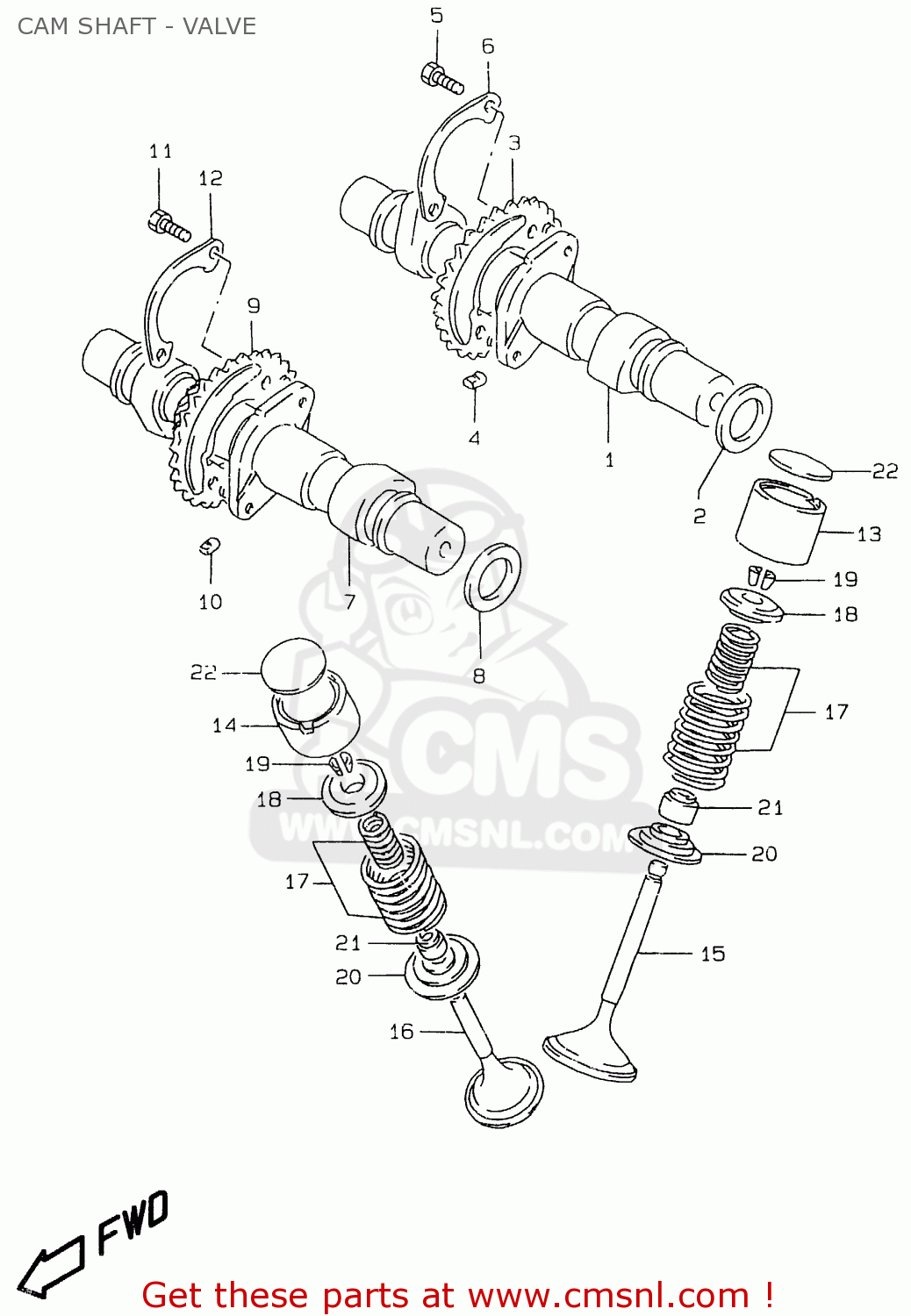

Cam shaft - valve diagram GS500EU 1998 (W) (E04 E22 E39)
CAM SHAFT - VALVE GS500EU 1998 (W) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
1271001820
ref: 1
CAMSHAFT SET,INTAKE
€ 211.50
1
1271001810
ref: 1
E18,E39
CAMSHAFT SET,INTAKE
€ 348.00
2
0918122167
ref: 2
<-08211-22301
SHIM(22X30X1)
€ 3.00
2
0916022074
ref: 2
OPT
WASHER(22X30X1.1)
€ 6.50
2
0916022075
ref: 2
OPT
WASHER(22X30X1.2)
€ 6.50
2
0916022076
ref: 2
OPT
WASHER(22X30X1.3)
€ 7.00
3
1274045042
ref: 3
SPROCKET,CAMSHAFT INTAKE
€ 67.00
4
1274844000
ref: 4
PIN,SPROCKET
€ 4.50
5
0911106027
ref: 5
BOLT(6X12.5)
€ 1.50
6
1274744000
ref: 6
WASHER,CAM CHAIN SPROCKET
€ 2.00
7
1272001820
ref: 7
CAMSHAFT SET,EXHAUST
€ 260.00
7
1272001810
ref: 7
E18,E39
CAMSHAFT SET,EXHAUST
€ 368.50
8
0918122167
ref: 8
<-08211-22301
SHIM(22X30X1)
€ 3.00
8
0916022074
ref: 8
OPT
WASHER(22X30X1.1)
€ 6.50
8
0916022075
ref: 8
OPT
WASHER(22X30X1.2)
€ 6.50
8
0916022076
ref: 8
OPT
WASHER(22X30X1.3)
€ 7.00
9
1275045041
ref: 9
SPROCKET,EXHAUST CAM(NT:30)
€ 65.00
10
1274844000
ref: 10
PIN,SPROCKET
€ 4.50
11
0911106027
ref: 11
BOLT(6X12.5)
€ 1.50
12
1274744000
ref: 12
WASHER,CAM CHAIN SPROCKET
€ 2.00
13
1289115500
ref: 13
TAPPET
€ 45.00
14
1289115500
ref: 14
TAPPET
€ 45.00
15
1291101D00
ref: 15
VALVE,INTAKE
€ 80.00
16
1291201D00
ref: 16
VALVE,EXHAUST
€ 79.50
17
1292044110
ref: 17
SPRING SET,VALVE
€ 13.50
18
1293145000
ref: 18
RETAINER,VALVE SPRING
€ 6.00
19
1293245010
ref: 19
COTTER VALVE
€ 2.50
20
1293345001
ref: 20
SEAT,VALVE SPRING
€ 5.50
21
0928907002
ref: 21
SEAL,OIL(7X14.4X9)
€ 3.00
22
1289245000215
ref: 22
SHIM,TAPPET(T:2.15)
€ 17.00
22
1289245000220
ref: 22
SHIM,TAPPET(T:2.20)
€ 16.50
22
1289245000225
ref: 22
SHIM,TAPPET(T:2.25)
€ 17.00
22
1289245000230
ref: 22
SHIM,TAPPET(T:2.30)
€ 16.00
22
1289245000235
ref: 22
SHIM,TAPPET(T:2.35)
€ 16.50
22
1289245000240
ref: 22
SHIM,TAPPET(T:2.40)
€ 17.00
22
1289245000245
ref: 22
SHIM,TAPPET(T:2.45)
€ 17.00
22
1289245000250
ref: 22
SHIM,TAPPET(T:2.50)
€ 16.00
22
1289245000255
ref: 22
SHIM,TAPPET(T:2.55)
€ 16.50
22
1289245000260
ref: 22
SHIM,TAPPET(T:2.60)
€ 16.00
22
1289245000265
ref: 22
SHIM,TAPPET(T:2.65)
€ 17.00
22
1289245000270
ref: 22
SHIM,TAPPET(T:2.70)
€ 17.00
22
1289245000275
ref: 22
SHIM,TAPPET(T:2.75)
€ 17.00
22
1289245000280
ref: 22
SHIM,TAPPET(T:2.80)
€ 16.50
22
1289245000285
ref: 22
SHIM,TAPPET(T:2.85)
€ 17.00
22
1289245000290
ref: 22
SHIM,TAPPET(T:2.90)
€ 17.00
22
1289245000295
ref: 22
SHIM,TAPPET(T:2.95)
€ 17.00
22
1289245000300
ref: 22
SHIM,TAPPET(T:3.00)
€ 17.00
22
1289245000305
ref: 22
SHIM,TAPPET(T:3.05)
€ 16.50
22
1289245000310
ref: 22
SHIM,TAPPET(T:3.10)
€ 17.00
23
1280045811
ref: 23
OPT, NOT SHOWN
SHIM SET,TAPPET
€ 1,227.00
24
9900069521
ref: 24
OPT, NOT SHOWN
CASE,SHIM
€ 152.50
