FRONT MASTER CYLINDER
GS500EU 1998 (W) (E04 E22 E39)

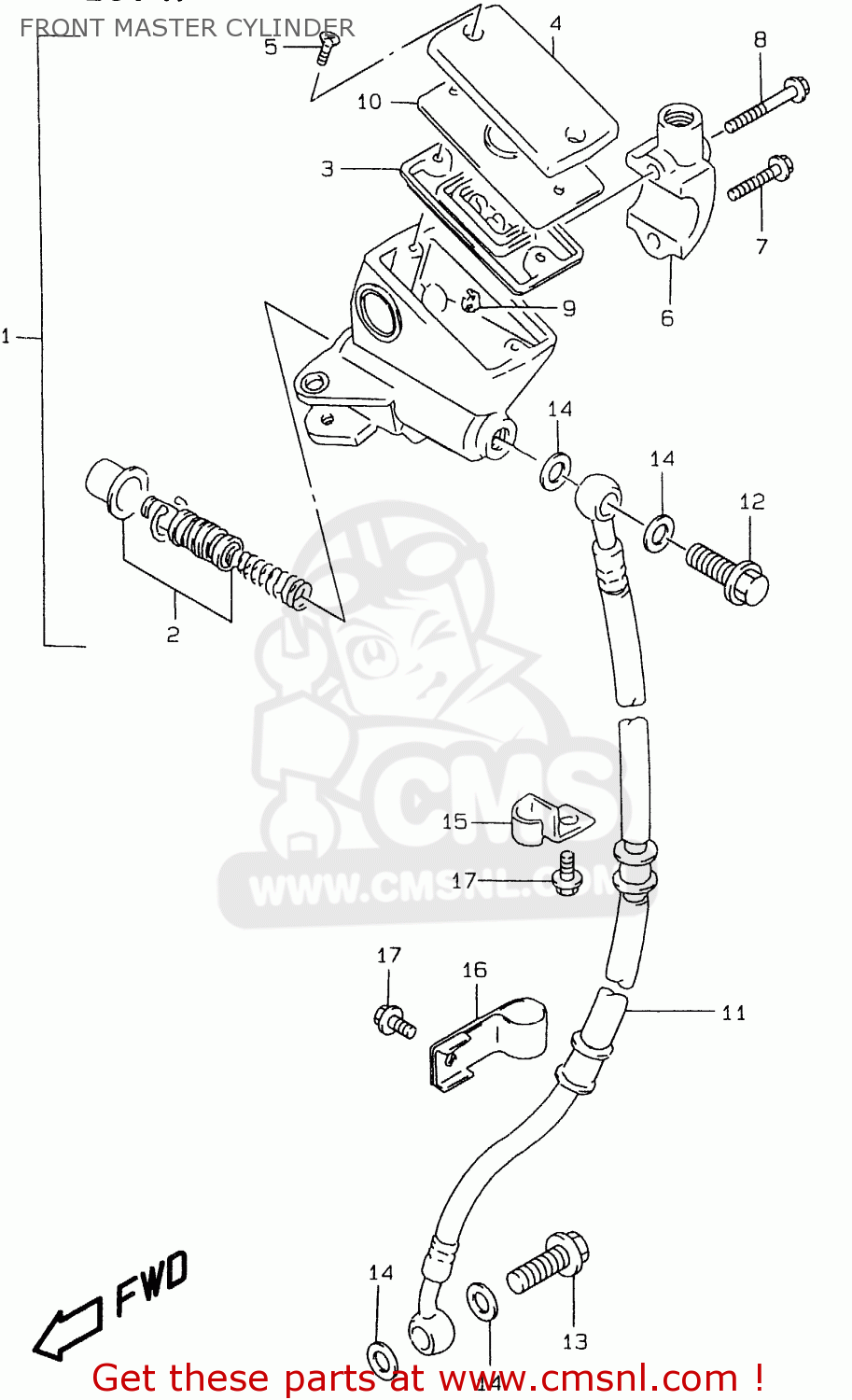

Front master cylinder diagram GS500EU 1998 (W) (E04 E22 E39)
FRONT MASTER CYLINDER GS500EU 1998 (W) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
5960038C00
ref: 1
CYLINDER ASSY,FR MASTER
€ 202.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966749460
ref: 3
5966749460
4
5966941C00
ref: 4
CAP
€ 30.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967144300
ref: 6
HOLDER
€ 14.50
7
5967519C00
ref: 7
BOLT(6X25)
€ 3.00
8
5967519C10
ref: 8
BOLT(6X38)
€ 4.00
9
5966448B00
ref: 9
PROTECTOR
€ 8.00
10
5966841C00
ref: 10
PLATE,DIAPHRAGM
€ 8.00
11
5948001D20
ref: 11
HOSE,FR BRAKE,R
€ 82.00
12
0936010039
ref: 12
BOLT UNION
€ 6.50
13
0936010040
ref: 13
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5926801D01
ref: 15
CLAMP,FR BRAKE HOSE
€ 8.00
16
5926801D10
ref: 16
CLAMP,FRONT BRAKE NO.2
€ 6.00
17
0155006123
ref: 17
BOLT
€ 2.50
