CRANKSHAFT BALANCER
GS500EU 1998 (W) (E04 E22 E39)

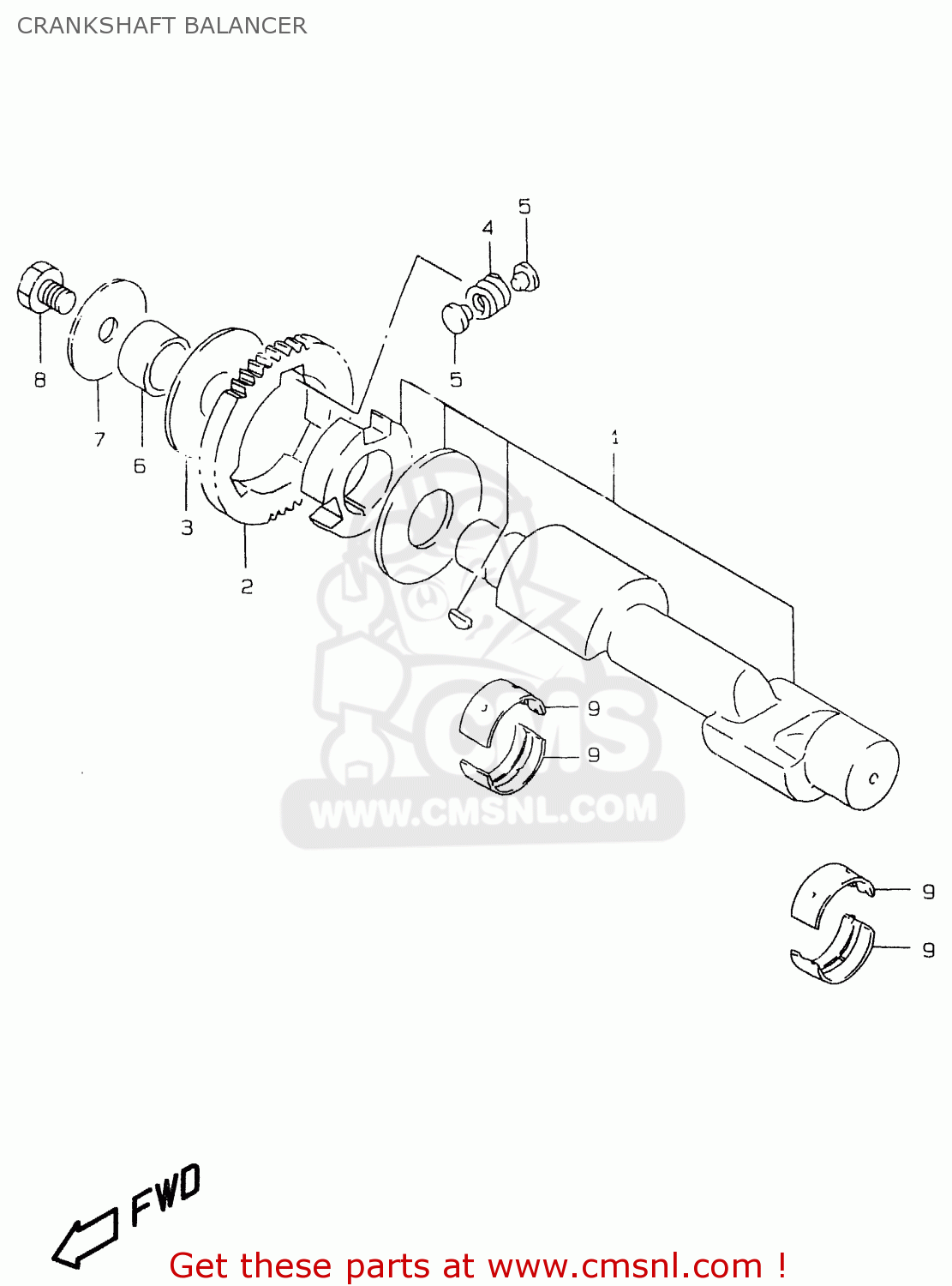

Crankshaft balancer diagram GS500EU 1998 (W) (E04 E22 E39)
CRANKSHAFT BALANCER GS500EU 1998 (W) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
1265001D01
ref: 1
BALANCER,CRANK
€ 223.00
2
1266644000
ref: 2
MODEL V
GEAR,CRANK BALANCER DRIVE
€ 128.00
2
1266644001
ref: 2
MODEL W/X
RACE,CRK BAL DRIVEN GEAR INNER
€ 128.00
3
0916024026
ref: 3
WASHER(24X70X3)
€ 12.00
4
0944015007
ref: 4
SPRING
€ 23.50
5
0920108001
ref: 5
PIN
€ 3.50
6
0918024009
ref: 6
SPACER(24X30.5X12.5)
€ 7.00
7
0916012039
ref: 7
WASHER(12X50X3)
€ 8.00
8
0150012203
ref: 8
BOLT
€ 3.00
9
1222901D010A0
ref: 9
BEARING,CRANKSHAFT(GREEN)
€ 10.50
9
1222901D010B0
ref: 9
BEARING,CRANKSHAFT(BLACK)
€ 11.00
9
1222901D010C0
ref: 9
BEARING,CRANKSHAFT(BROWN)
€ 11.00
9
1222901D010D0
ref: 9
BEARING,CRANKSHAFT(YELLOW)
€ 11.00
