CARBURETOR
GS500EU 1999 (X) (E04 E22 E39)

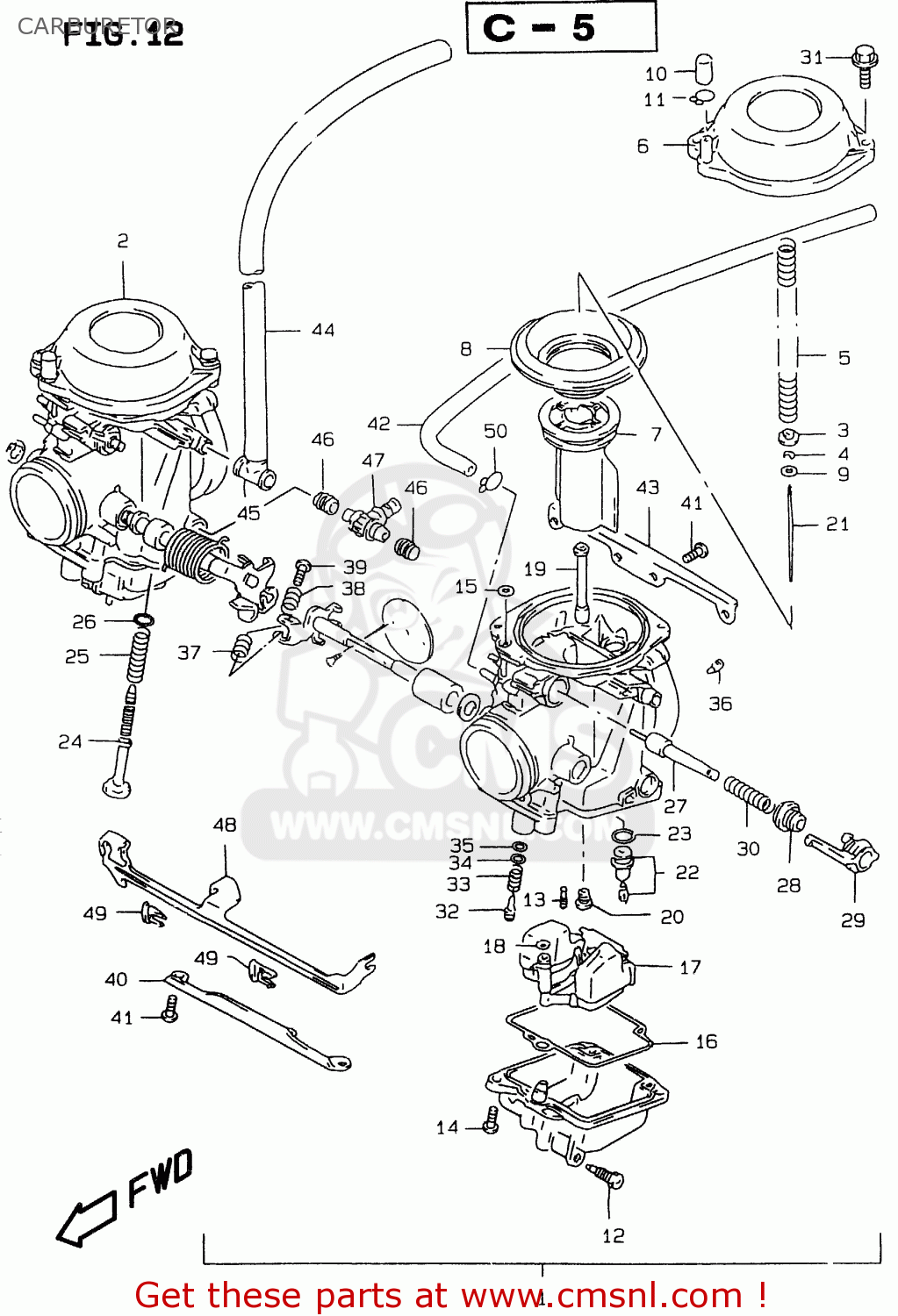

Carburetor diagram GS500EU 1999 (X) (E04 E22 E39)
CARBURETOR GS500EU 1999 (X) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
1320102D80
ref: 1
CARBURETOR,LH
€ 502.00
1
1320102D10
ref: 1
E18
CARBURETOR ASSY, LH
€ 0.00
1
1320102DA0
ref: 1
GS500EV/EW/EX E22
CARBURETOR ASSY, LH
€ 0.00
1
1320102DB0
ref: 1
GS500EUV E4, GS500EU
CARBURETOR ASSY, LH
€ 410.50
1
1320102D60
ref: 1
E24
CARBURETOR ASSY, LH
€ 399.00
1
1320102D50
ref: 1
P9
CARBURETOR ASSY, LH
€ 433.50
1
1320102D70
ref: 1
P37
CARBURETOR ASSY, LH
€ 0.00
1
1320102D20
ref: 1
E39
CARBURETOR ASSY, LH
€ 0.00
2
1320202D80
ref: 2
->13202-02DA0
CARBURETOR ASSY, RH
€ 399.00
2
1320202D10
ref: 2
E18
CARBURETOR ASSY, RH
€ 360.50
2
1320202DA0
ref: 2
GS500EV/EW/EX E22
CARBURETOR ASSY, RH
€ 399.00
2
1320202DB0
ref: 2
GS500EUV E4, GS500EU
CARBURETOR ASSY, RH
€ 399.00
2
1320202D60
ref: 2
E24
CARBURATOR ASS
€ 437.50
2
1320202D50
ref: 2
P9, ->13202-02D60
CARBURETOR,RH.
€ 437.50
2
1320202D70
ref: 2
P37
CARBURETOR ASSY, RH
€ 0.00
2
1320202D20
ref: 2
E39
CARBURETOR ASSY, RH
€ 0.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339440D20
ref: 4
E RING
€ 4.50
5
1341706C00
ref: 5
SPRING
€ 8.00
5
1341742A00
ref: 5
E18,E24,E39,P9,P37,
SPRING
€ 6.00
6
1350201D00
ref: 6
COVER,DIAPHRAGM
€ 36.00
6
1350245B10
ref: 6
E18
COVER,DIAPHRAGM
€ 29.00
6
1350202D00
ref: 6
E39
COVER,DIAPHRAGM
€ 0.00
7
1350101D00
ref: 7
VALVE,PISTON
€ 69.00
7
1350102D10
ref: 7
GS500EUV E4, GS500EU
VALVE,PISTON
€ 51.50
8
1350717C01
ref: 8
DIAPHRAGM
€ 24.50
8
1350744B00
ref: 8
E18,E39
DIAPHRAGM
€ 29.00
9
1338747010
ref: 9
RING
€ 7.50
10
1350817C00
ref: 10
CAP
€ 4.50
10
1350817C00
ref: 10
E18,E39,P9
CAP
€ 4.50
11
1367105A40
ref: 11
CLIP
€ 4.00
11
1367105A40
ref: 11
E18,E39,P9
CLIP
€ 4.00
12
1324713A00
ref: 12
SCREW,DRAIN
€ 5.50
13
0949240014
ref: 13
JET(40)
€ 8.50
14
0211205127
ref: 14
SCREW
€ 2.50
15
1350917C00
ref: 15
O RING
€ 4.50
16
1325844B00
ref: 16
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
17
1324001D00
ref: 17
FLOAT ASSY
€ 48.50
18
1337446710
ref: 18
O RING
€ 4.50
19
0949400748
ref: 19
JET,NEEDLE(O-2)
€ 27.00
20
0949123011
ref: 20
JET,MAIN(115)
€ 10.50
20
0949125010
ref: 20
E24,E39,P9,P37
JET,MAIN(125)
€ 8.50
20
0949124013
ref: 20
E24,P9,P37
JET,MAIN(122.5)
€ 7.00
20
0949123017
ref: 20
GS500EUV E4, GS500EU
JET,MAIN(117.5)
€ 11.00
20
0949124016
ref: 20
E18
JET,MAIN(120)
€ 11.50
20
0949123011
ref: 20
E18,E39
JET,MAIN(115)
€ 10.50
21
1338301D10
ref: 21
NEEDLE,JET
€ 17.00
21
1338301D10
ref: 21
GS500EUV E4,E22
NEEDLE,JET
€ 17.00
22
1337044B00
ref: 22
->13370-02D00
VALVE ASSEMBLY,NEEDLE
€ 46.50
22
1337002D00
ref: 22
P37
VALVE ASSY,NEEDLE
€ 46.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
€ 6.00
24
1326714D10
ref: 24
RH
SCREW,ADJUSTER
€ 22.50
25
1337514D10
ref: 25
RH
SPRING
€ 6.50
26
1342738300
ref: 26
RH
WASHER
€ 1.50
27
1341101D00
ref: 27
PLUNGER ASSY
€ 28.50
28
1341817C00
ref: 28
CAP,STARTER
€ 5.00
29
1341817C10
ref: 29
HOLDER,GUIDE
€ 14.00
30
1341709110
ref: 30
SPRING
€ 6.00
31
0211275163
ref: 31
SCREW
€ 2.50
32
1327947070
ref: 32
EXCEPT E18
SCREW,PILOT
€ 11.50
32
1327947070
ref: 32
E24
SCREW,PILOT
€ 11.50
32
1327947070
ref: 32
P37
SCREW,PILOT
€ 11.50
32
1327947070
ref: 32
E39
SCREW,PILOT
€ 11.50
33
1326847070
ref: 33
EXCEPT E18
SPRING
€ 5.00
34
1329129900
ref: 34
EXCEPT E18
WASHER
€ 2.00
35
1329529900
ref: 35
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
36
0949326004
ref: 36
JET,AIR(1.3)
€ 14.50
36
0949324007
ref: 36
E24,P37
JET,AIR(1.2)
€ 13.50
36
0949328006
ref: 36
E18,E39, <-09493-280
JET,PILOT AIR,1.4
€ 15.50
37
1326896110
ref: 37
SPRING,THROTTLE SCREW
€ 4.50
38
1327144B00
ref: 38
SPRING
€ 4.00
39
1326744B00
ref: 39
SCREW
€ 3.50
40
1362801D00
ref: 40
PLATE
€ 14.00
41
0211205127
ref: 41
SCREW
€ 2.50
42
1368401D10
ref: 42
HOSE(5X9X350)
€ 21.00
43
1362801D10
ref: 43
PLATE
€ 0.00
44
0935470113600
ref: 44
L:600->400
HOSE(7X11X600)
€ 17.50
45
1368420C10
ref: 45
HOSE
€ 7.00
46
1367344B00
ref: 46
SEAL
€ 6.00
47
1368544B00
ref: 47
NIPPLE
€ 10.00
48
1341301D00
ref: 48
LEVER
€ 16.00
49
1343917C00
ref: 49
HOLDER
€ 12.00
50
0940108410
ref: 50
CLIP
€ 3.00
