STARTER CLUTCH

GS500EU 1999 (X) (E04 E22 E39)

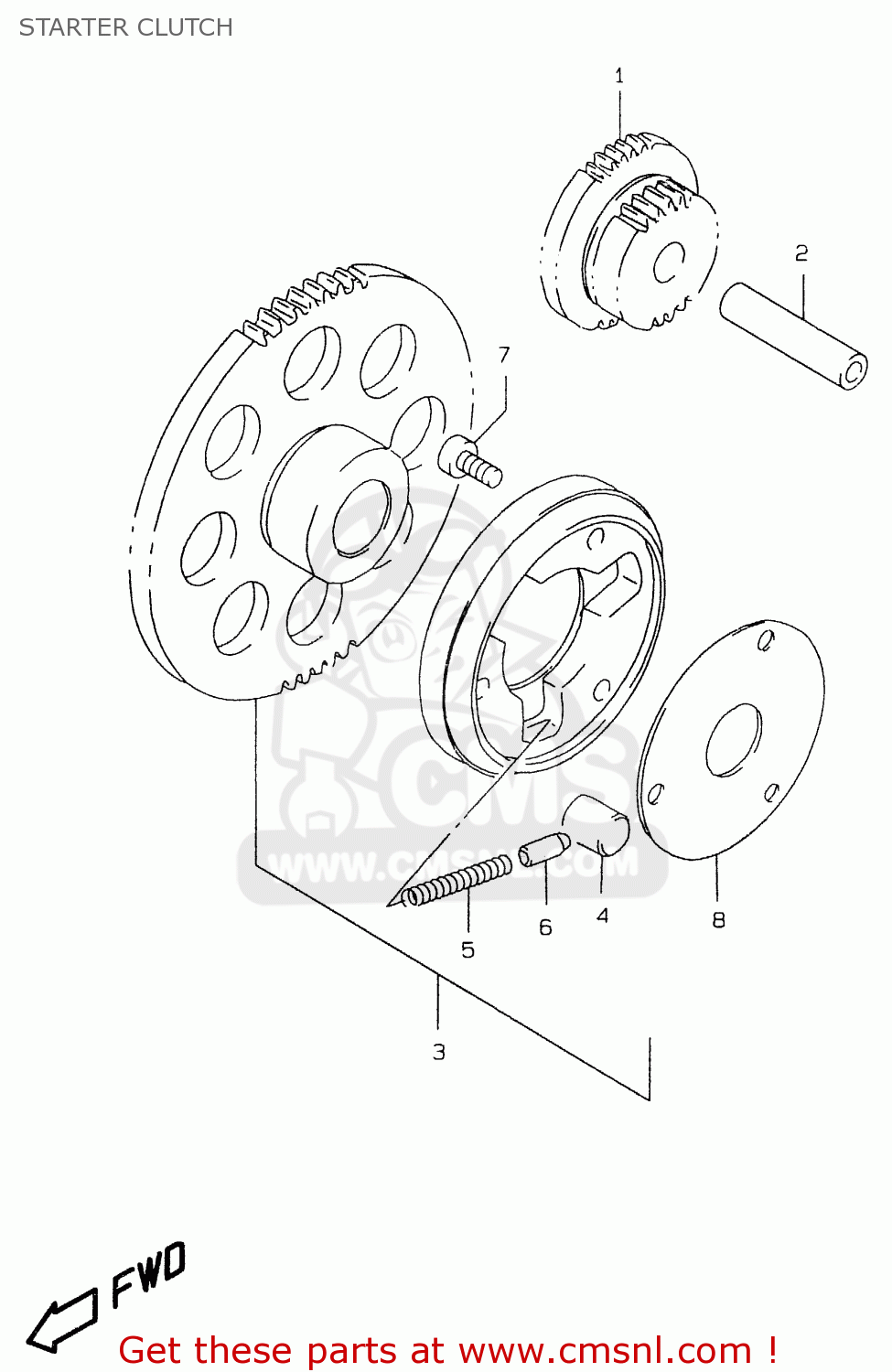

Starter clutch diagram GS500EU 1999 (X) (E04 E22 E39)

STARTER CLUTCH GS500EU 1999 (X) (E04 E22 E39)

STARTER CLUTCH GS500EU 1999 (X) (E04 E22 E39)

prices are in EUR

ref

part #

description

quantity

1

1261101D00
ref: 1

GEAR,STARTER IDLE

€ 73.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260044833
ref: 3
MODEL V

CLUTCH SET,STARTER

€ 313.00

3

1260044834
ref: 3
MODEL W/X

CLUTCH SET,STARTER

€ 313.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0713008163
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
