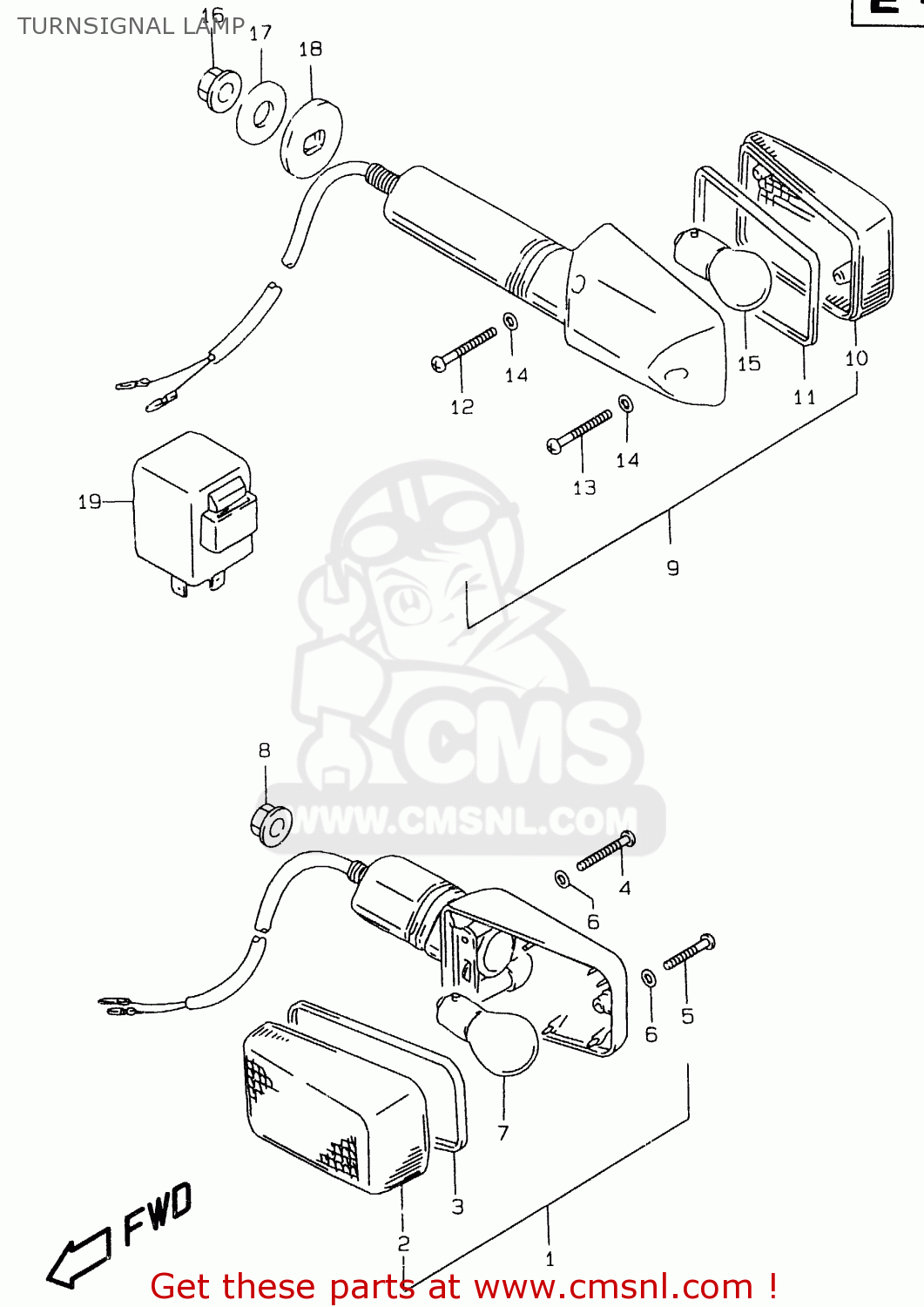

TURNSIGNAL LAMP

ref

part #

description

quantity

1

3560101D10
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 70.50

1

3560101D00
ref: 1
E4,P37,E39

LAMP ASSY,FR TURN SIGNAL

€ 81.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0831610103
ref: 8

NUT

€ 2.00

9

3560317C41999
ref: 9

LAMP ASSY,RR TURNSIGNAL

€ 76.00

10

3565217C20
ref: 10

LENS

€ 6.50

11

3561327A00
ref: 11

GASKET (NAS)

€ 3.00

12

3562327A00
ref: 12

SCREW(3X30)

€ 1.50

13

3572540511
ref: 13

SCREW

€ 1.50

14

3562727A02
ref: 14

GASKET (NAS)

€ 1.50

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

0831000103
ref: 16

NUT

€ 2.00

17

0916010501
ref: 17

WASHER(10.5X30X2.3)

€ 2.50

18

3569517C00
ref: 18

SPACER,RR TURNSIGNAL

€ 3.00

19

3861026E00
ref: 19

RELAY ASSY

€ 47.00

all assemblies
