GS500EU 1999 (X) (E04 E22 E39)

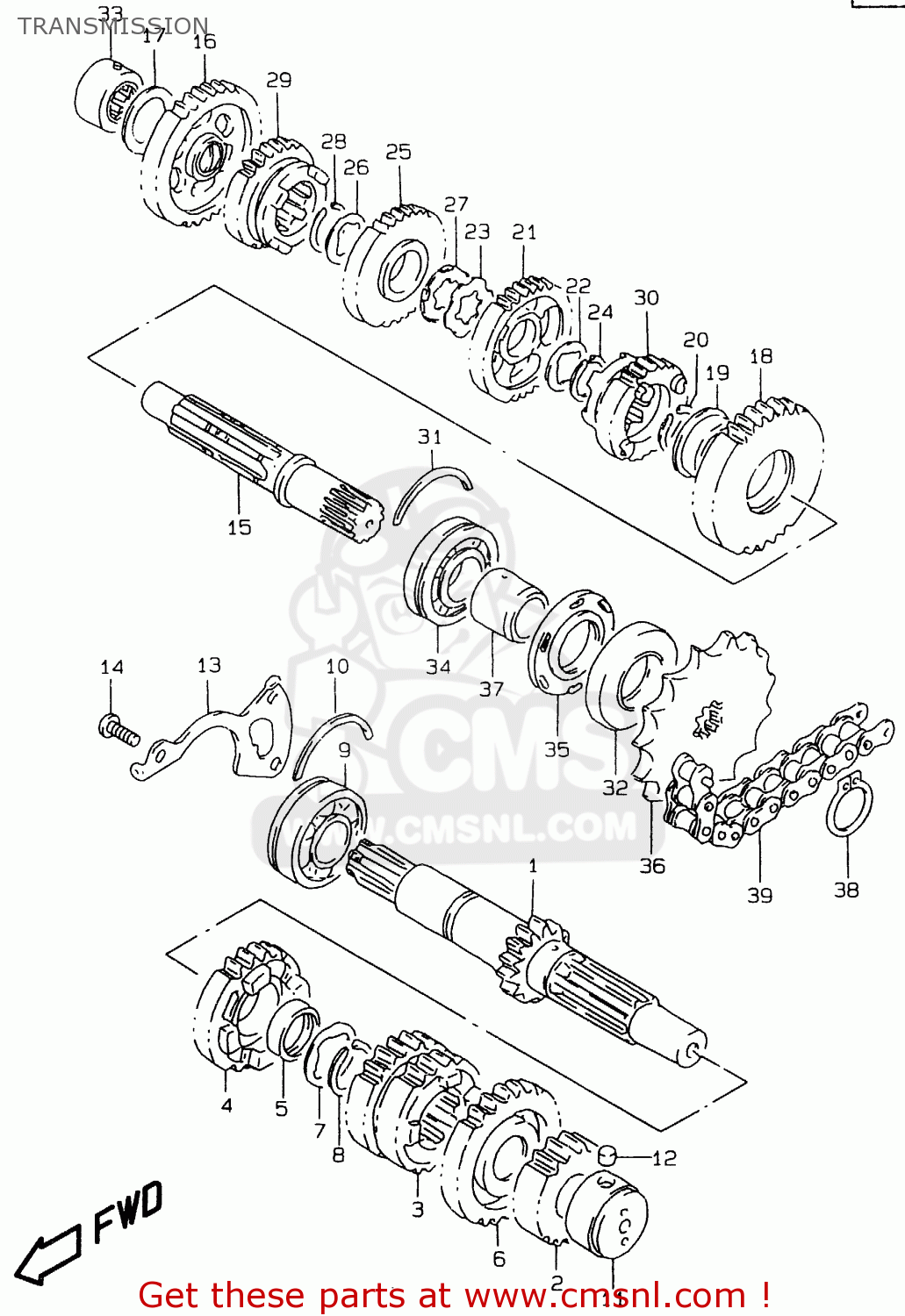

Transmission diagram GS500EU 1999 (X) (E04 E22 E39)
TRANSMISSION GS500EU 1999 (X) (E04 E22 E39)
×
prices are in EUR
ref
part #
description
quantity
1
2412101D00
ref: 1
MODEL V
SHAFT,COUNTER (NT:13)
€ 234.00
1
2412101D01
ref: 1
MODEL W/X
SHAFT,COUNTER
€ 234.00
2
2422144001
ref: 2
GEAR,2ND DRIVE(NT:18)
€ 83.00
3
2423101D00
ref: 3
MODEL V
GEAR,THIRD DRIVE (NT:21/2
€ 91.50
3
2423101D01
ref: 3
MODEL W/X
GEAR,THIRD DRIVE
€ 91.50
4
2425101D00
ref: 4
GEAR,FIFTH DRIVE (NT:26)
€ 78.50
5
0930025023
ref: 5
BUSHING 25X29X10
€ 9.50
6
2426001D00
ref: 6
MODEL V
GEAR,SIXTH DRIVE (NT:27)
€ 95.50
6
2426001D01
ref: 6
MODEL W/X
GEAR,6TH DRIVE
€ 95.50
7
0821125341
ref: 7
MODEL V
WASHER
€ 3.50
7
0918125167
ref: 7
MODEL W/X
SHIM(25X34X1)
€ 3.50
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0926225105
ref: 9
BEARING(25X62X17)
€ 59.50
10
0939062012
ref: 10
C RING
€ 5.00
11
0926320025
ref: 11
BEARING(20X34X20)
€ 37.00
12
0422107129
ref: 12
PIN
€ 1.50
13
2474144102
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 10.50
14
0212206163
ref: 14
SCREW ,6X16
€ 2.00
15
2413101D00
ref: 15
SHAFT,DRIVE
€ 207.00
16
2431044000
ref: 16
MODEL V
GEAR,FIRST DRIVEN
€ 98.50
16
2431044001
ref: 16
MODEL W/X
GEAR,1ST DRIVEN
€ 98.50
17
0821120341
ref: 17
MODEL V
WASHER
€ 2.00
17
0918120251
ref: 17
MODEL W/X
SHIM(20X34X1)
€ 3.00
18
2432144004
ref: 18
MODEL V
GEAR,SECOND DRIVEN
€ 98.50
18
2432144005
ref: 18
MODEL W/X
GEAR,SECOND DRIVEN (NT:32)
€ 98.50
19
0930125001
ref: 19
BUSHING
€ 12.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
2433144002
ref: 21
MODEL V
GEAR,THIRD DRIVEN
€ 89.50
21
2433144003
ref: 21
MODEL W/X
GEAR,3RD DRIVEN
€ 89.50
22
0916725012
ref: 22
WASHER,LOCK
€ 3.50
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0938025010
ref: 24
CIRCLIP
€ 3.00
25
2434144002
ref: 25
MODEL V
GEAR,FOURTH DRIVEN
€ 82.50
25
2434144003
ref: 25
MODEL W/X
GEAR,4TH DRIVEN
€ 82.50
26
0916725012
ref: 26
WASHER,LOCK
€ 3.50
27
0916925001
ref: 27
WASHER
€ 2.00
28
0938025010
ref: 28
CIRCLIP
€ 3.00
29
2435144001
ref: 29
GEAR,5TH DRIVEN(NT:25)
€ 108.00
30
2436144002
ref: 30
MODEL V
GEAR,SIXTH DRIVEN
€ 121.00
30
2436144010
ref: 30
MODEL W/X, <-24361-4
GEAR,6TH DRIVEN(NT:23)
€ 121.00
31
0939062012
ref: 31
C RING
€ 5.00
32
0928332015
ref: 32
SEAL,OIL(32X62X7)
€ 15.50
33
0926320027
ref: 33
BEARING(20X34X17)
€ 34.00
34
0926225105
ref: 34
BEARING(25X62X17)
€ 59.50
35
0928232002
ref: 35
SEAL,OIL(32X62X5.5)
€ 11.50
36
2751101D01
ref: 36
SPROCKET,ENGINE(16T)
€ 27.50
37
2753101D10
ref: 37
SPACER,ENGINE SPROCKET
€ 20.00
38
0833131256
ref: 38
CIRCLIP
€ 2.00
39
2760001C10110
ref: 39
CHAIN(DID520VM,110L)
€ 134.50
