CHAIN CASE - SHOCK ABSORBER

GS550E 1979 (N) USA (E03)

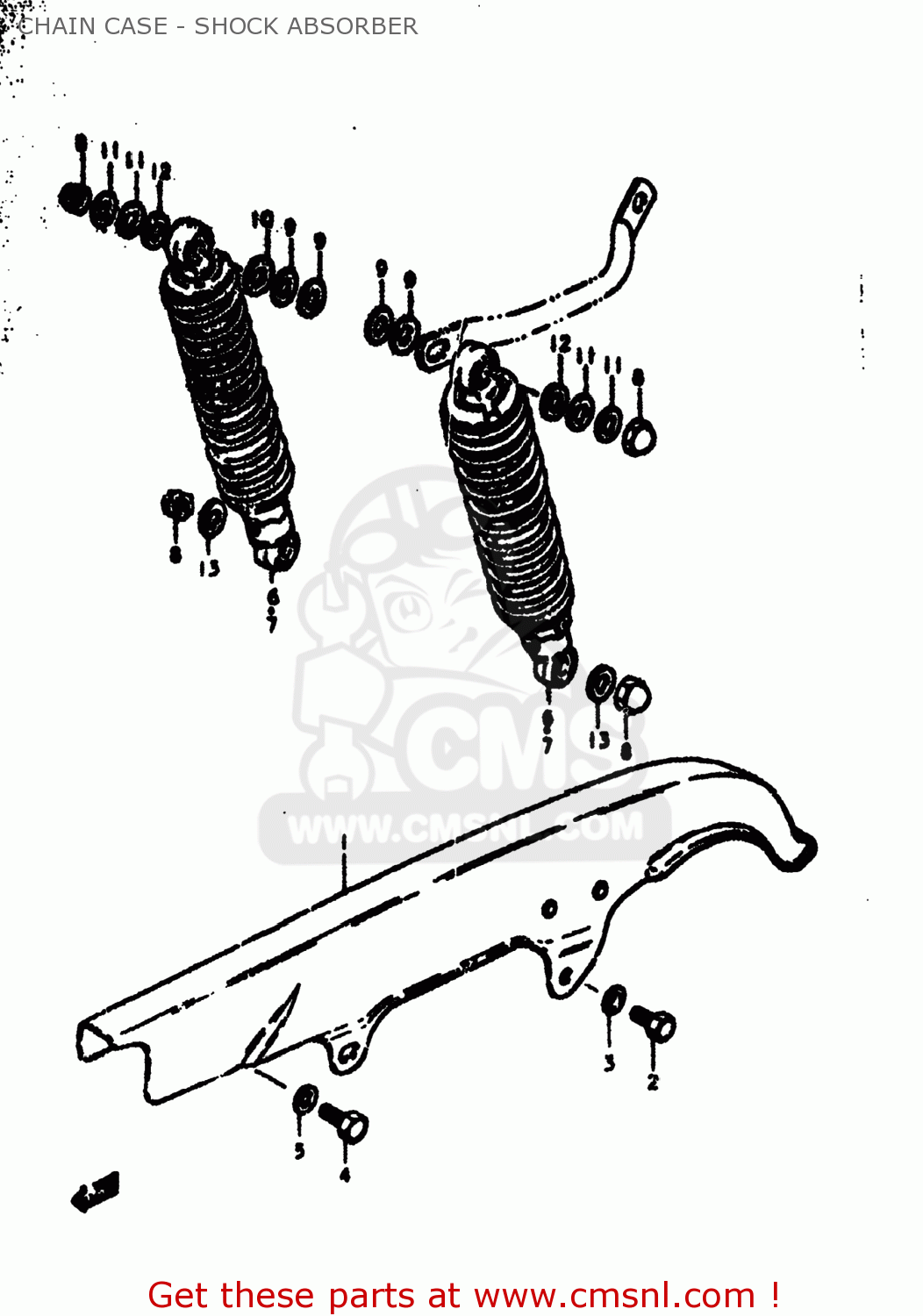

Chain case - shock absorber diagram GS550E 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

6131044000019
ref: 1

CASE,CHAIN

€ 58.50

0910006011
ref: 2

BOLT(6X8)

€ 2.50

0916906016
ref: 3

WASHER

€ 1.50

0110706108
ref: 4
01500-06107

BOLT

€ 2.00

0916006028
ref: 5

WASHER(6.5X18X1)

€ 1.50

6-1

6210047030
ref: 6-1
62100-44411

ABSORBER ASSEMBLY,REAR SHOCK

€ 197.50

6-2

6210047031
ref: 6-2
62100-44411

ABSORBER ASSEMBLY,REAR SHOCK

€ 197.50

6210047610
ref: 7
62100-44411

ABSORBER ASSEMBLY,REAR SHOCK

€ 197.50

0831311108
ref: 8
08313-10107

NUT, LOWER LH

€ 2.50

0832211128
ref: 9
08322-01127

WASHER

€ 2.00

0916012012
ref: 10
09160-12082

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 11
09160-10093

WASHER

€ 2.00

0916010033
ref: 12
09160-10128-XC0

WASHER(10.5X24X3.2)

€ 2.00

0916010001
ref: 13
09160-10093

WASHER

€ 2.00

CHAIN CASE - SHOCK ABSORBER

all assemblies
