OIL PAN

GS550E 1979 (N) USA (E03)

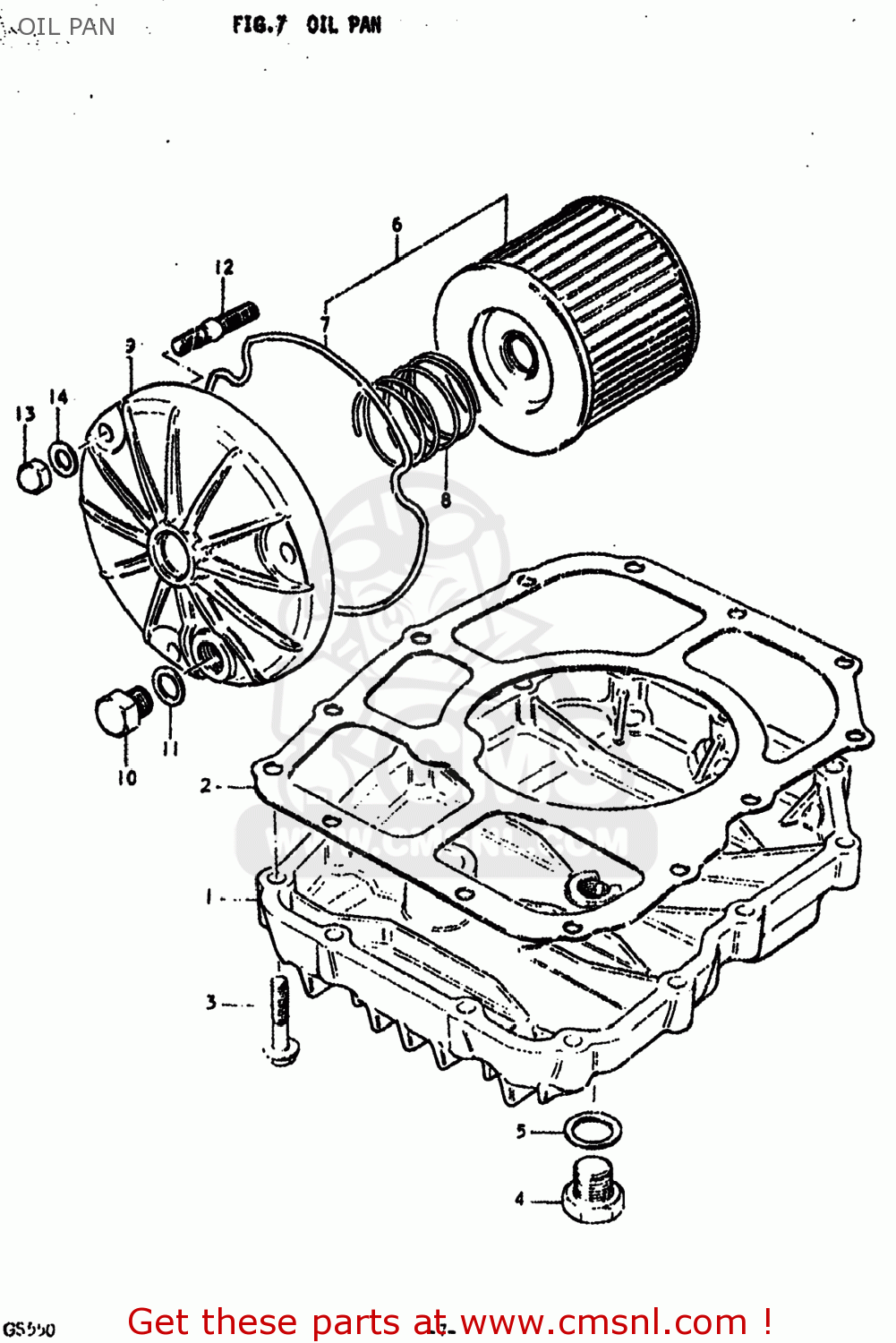

Oil pan diagram GS550E 1979 (N) USA (E03)

OIL PAN GS550E 1979 (N) USA (E03)

OIL PAN GS550E 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1151147000
ref: 1
11511-47001

PAN,OIL

€ 77.50

2

1148947000
ref: 2
11489-47000-H17

GASKET,OIL PAN (MCA)

€ 14.00

3

0151706308
ref: 3
01550-06307

BOLT

€ 2.00

4

0924714001
ref: 4
09247-14002

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1651045040
ref: 6

FILTER ASSY,ENGINE OIL

€ 7.50

7

1651845000
ref: 7

O RING,OIL FILTER CHAMBER CAP

€ 7.50

8

0944032004
ref: 8

SPRING

€ 13.50

9-1

1651245000
ref: 9-1
16512-45101

CAP,OIL FILTER

€ 37.50

9-2

1651245001
ref: 9-2
16512-45101

CAP,OIL FILTER

€ 37.50

10

0924710001
ref: 10

PLUG

€ 3.00

11

0916810002
ref: 11

GASKET(10X14X3.6) (NAS)

€ 2.00

12

0142106208
ref: 12
01421-0620A

STUD 6X20

€ 2.50

13

0831311068
ref: 13
08313-10067

NUT

€ 2.00

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00
