REAR WHEEL (GS550EC
GS550E 1979 (N) USA (E03)

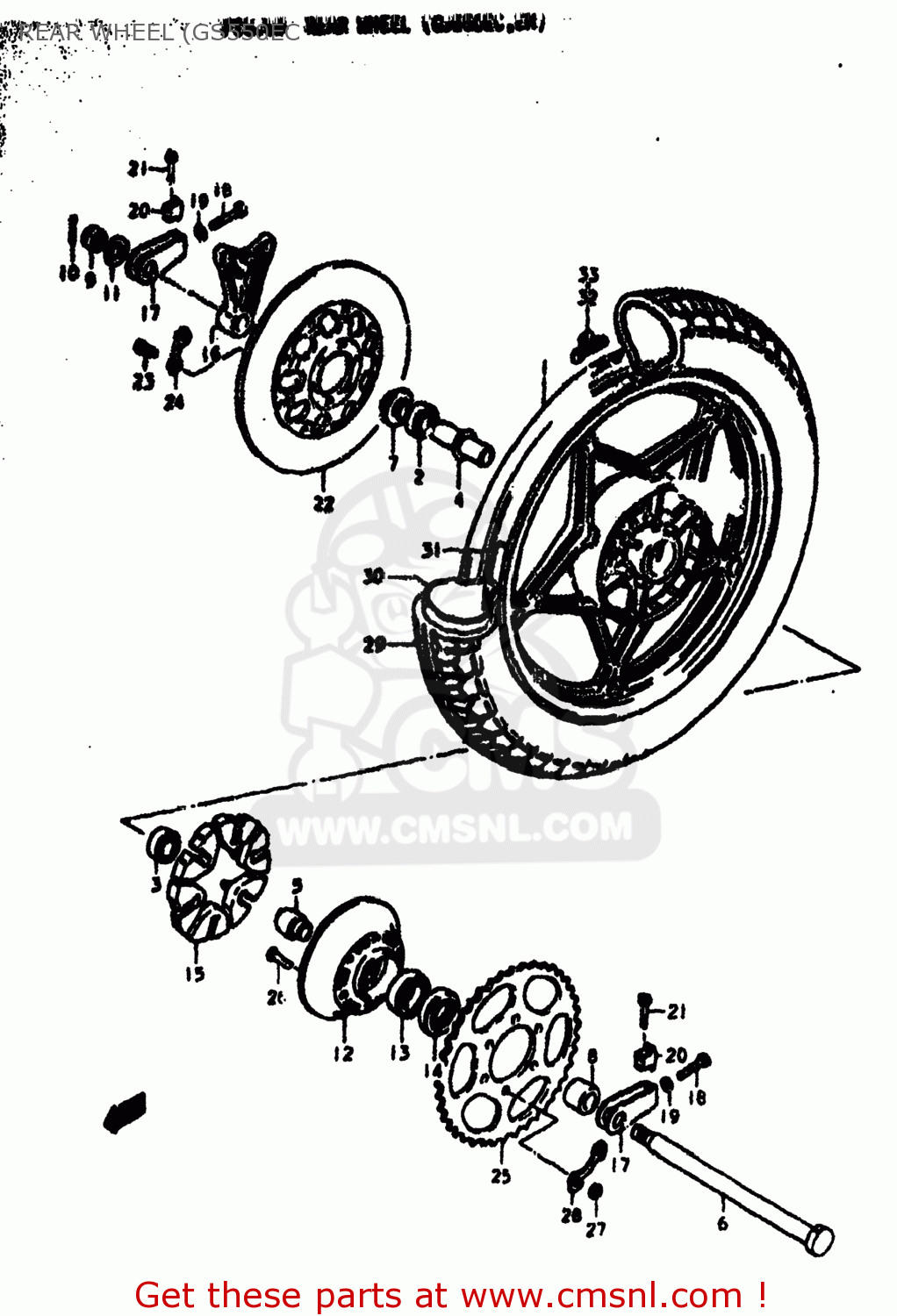

Rear wheel (gs550ec diagram GS550E 1979 (N) USA (E03)
REAR WHEEL (GS550EC GS550E 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411147601
ref: 1-1
64111-49300-12U
WHEEL, REAR
€ 420.00
1-2
6411147602
ref: 1-2
64111-49300-12U
WHEEL, REAR
€ 420.00
2
0813363037
ref: 2
BEARING
€ 28.50
3
0815363037
ref: 3
BEARING
€ 19.50
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
€ 18.50
5
6473347000
ref: 5
RETAINER,REAR SPROCKET D
€ 16.50
6
6471147000
ref: 6
AXLE,REAR
€ 45.00
7
6474047001
ref: 7
64740-47002
SPACER,REAR AXLE
€ 12.50
8
0918017048
ref: 8
SPACER (17X33X21.1)
€ 7.50
9
0914116001
ref: 9
NUT
€ 6.50
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
€ 1.50
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
€ 2.00
12
6461131000
ref: 12
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363057
ref: 13
09262-25073
BEARING
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
16
6972147000
ref: 16
69721-47001
BRACKET,REAR CALIPER
€ 27.50
17
6141033000
ref: 17
61410-47200
ADJUSTER,CHAIN
€ 58.00
18
0910408006
ref: 18
09104-08034
BOLT
€ 3.00
19
0831012088
ref: 19
08310-00087
NUT
€ 2.00
20
6143331000
ref: 20
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
21
0151708508
ref: 21
01550-08507
BOLT
€ 3.50
22
5921018401
ref: 22
59210-18402
DISC,BRAKE
€ 208.50
23
0910008094
ref: 23
BOLT(8X30)
€ 2.50
24
0916908016
ref: 24
WASHER
€ 3.50
25
6451147600
ref: 25
SPROCKET,RR
€ 57.00
26-1
0911910010
ref: 26-1
09105-10002
BOLT
€ 3.50
26-2
0911910002
ref: 26-2
09105-10001
BOLT
€ 3.50
27
0831022108
ref: 27
08310-00107
NUT
€ 2.50
28
0916910007
ref: 28
WASHER
€ 7.50
29-1
6510047610
ref: 29-1
65100-47600
TIRE
€ 79.50
29-2
6510047035
ref: 29-2
65100-47600
TIRE
€ 79.50
30
6520015011
ref: 30
65200-49015
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
31
6526115010
ref: 31
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
32
5541147001
ref: 32
BALANCER,WHEEL
€ 4.00
33
5541247001
ref: 33
BALANCER,WHEEL
€ 3.50
