CONTACT BREAKER (KOKUSAN)
GS550E 1979 (N) USA (E03)

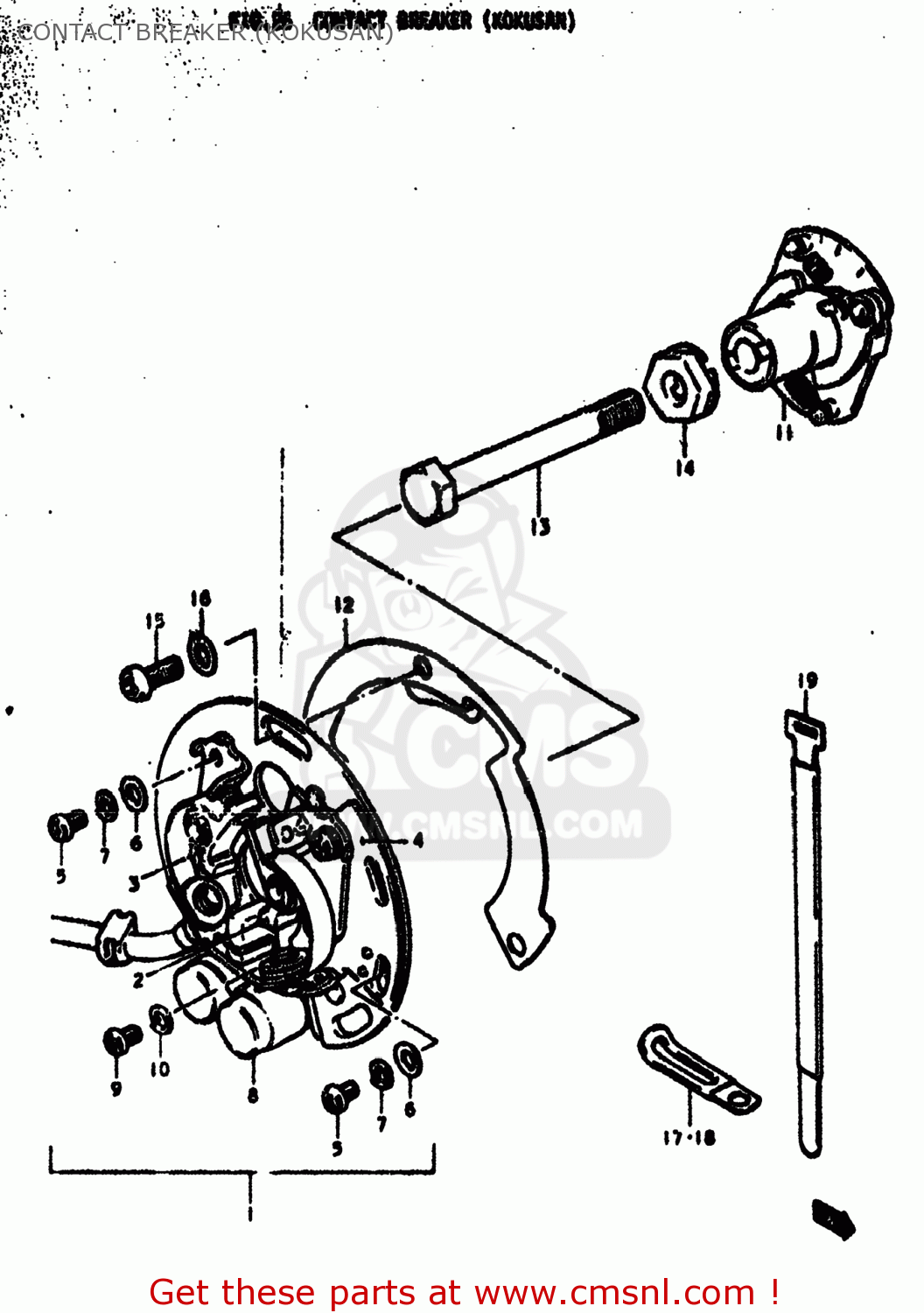

Contact breaker (kokusan) diagram GS550E 1979 (N) USA (E03)
CONTACT BREAKER (KOKUSAN) GS550E 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3311045020
ref: 1
33110-44X51
BREAKER ASSEMBLY,CONTACT
€ 568.50
2
3314045020
ref: 2
33140-44110
POINT ASSEMBLY,CONTACT
€ 35.50
3
3316045020
ref: 3
33160-44110
POINT ASSEMBLY,CONTACT
€ 83.00
4
3314345020
ref: 4
PLATE,CONTACT POINT
€ 12.50
5
0211104067
ref: 5
02112-0406B
SCREW
€ 2.00
6
0832221048
ref: 6
08322-01047
WASHER
€ 2.00
7
0832121048
ref: 7
08321-0104A
LOCK WASHER
€ 2.00
8
3326145020
ref: 8
CONDENSER
€ 106.00
9
0211104067
ref: 9
02112-0406B
SCREW
€ 2.00
10
0832121048
ref: 10
08321-0104A
LOCK WASHER
€ 2.00
11
3312045021
ref: 11
GOVERNOR ASSEMBLY
€ 168.00
12
3337145001
ref: 12
PLATE,IGNITION TIMING
€ 6.50
13
0110708608
ref: 13
01500-0860B
BOLT
€ 2.50
14
3346547000
ref: 14
WASHER
€ 19.00
15
0912505024
ref: 15
SCREW(5X12)
€ 2.00
16
0832221058
ref: 16
08322-01057
WASHER
€ 2.50
17
0940406401
ref: 17
09404-06432
CLAMP L:35
€ 2.50
18
0940408401
ref: 18
09404-08420
CLAMP
€ 3.50
19
0940718301
ref: 19
CLAMP
€ 6.00
