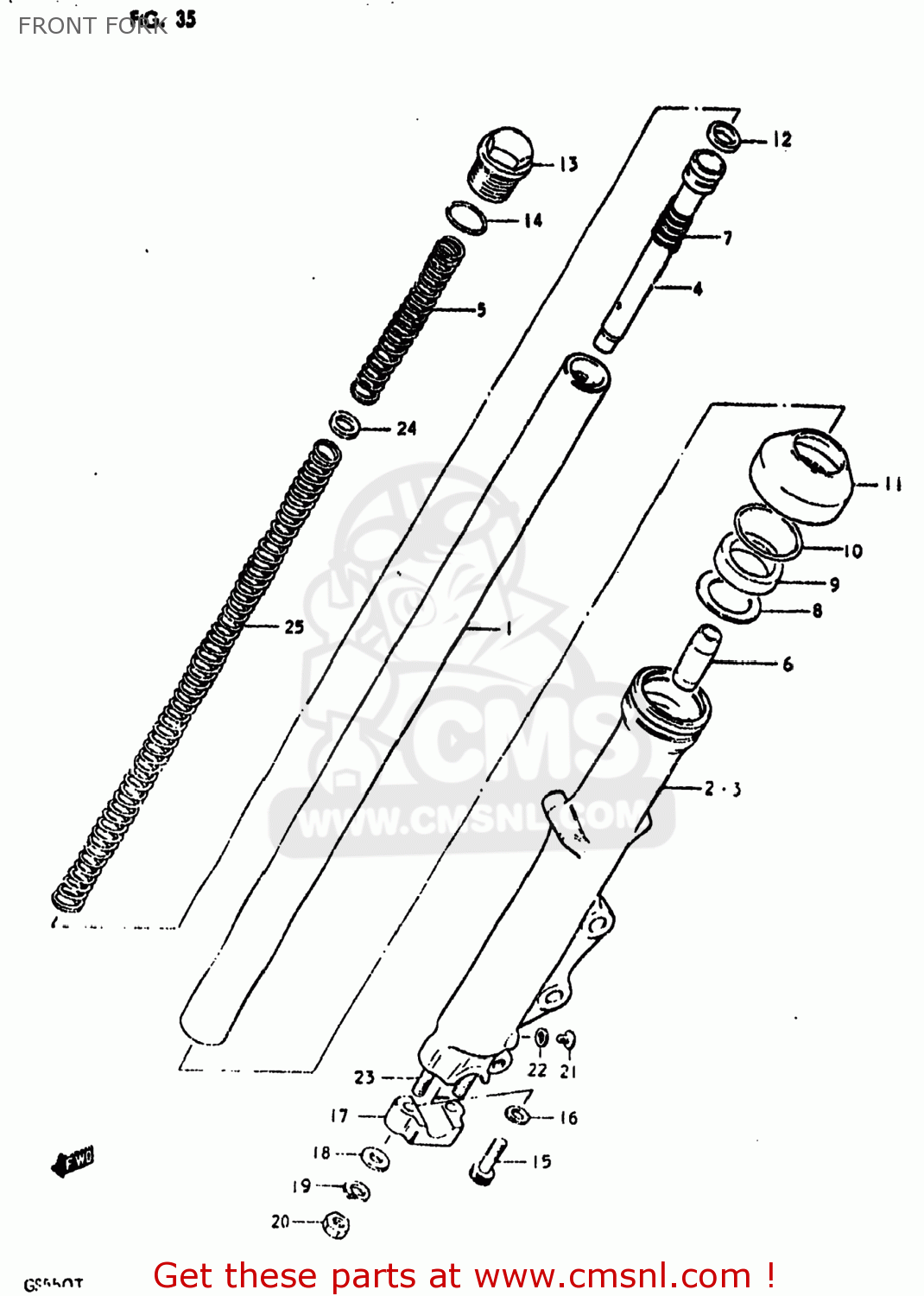

FRONT FORK

ref

part #

description

quantity

0-1

5110347031
ref: 0-1
51103-47400

DAMPER ASSEMBLY,RIGHT

€ 239.50

0-2

5110447031
ref: 0-2
51104-47400

DAMPER ASSEMBLY,LEFT

€ 239.50

1

5111047030
ref: 1

TUBE,FORK,INNER

€ 203.50

2

5113045032
ref: 2

TUBE,FORK,OUTER,RIGHT

€ 220.50

3

5114045032
ref: 3

TUBE,FORK,LEFT,OUTER

€ 211.50

4

5114647600
ref: 4

SEAT,FRONT FORK,UNDER

€ 14.50

5

5117147030
ref: 5

SPRING

€ 0.00

6

5119545030
ref: 6

PIECE,OIL LOCK

€ 16.00

7

5117745030
ref: 7

SPRING,FORK REBOUND

€ 4.00

8

5116845031
ref: 8
51168-30B00

SPACER,SEAL

€ 5.00

9

5115345030
ref: 9
51153-19D10

OIL SEAL,FRONT FORK

€ 14.00

10

5115631231
ref: 10
51156-01A00

CIRCLIP,FORK OIL SEAL

€ 3.50

11

5157131232
ref: 11
51571-20520

BOOT

€ 19.50

12

5119631230
ref: 12

RING

€ 7.50

13

5135131030
ref: 13

CAP,INNER TUBE

€ 34.50

14

5118131030
ref: 14

O RING

€ 3.50

15

5114748130
ref: 15

BOLT(8X27)

€ 3.50

16

5114831030
ref: 16
51148-36011

GASKET (NAS)

€ 4.00

17

5113231030
ref: 17

HOLDER,AXLE

€ 31.50

18

0832221088
ref: 18
08322-01087

WASHER

€ 2.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0831012088
ref: 20
08310-00087

NUT

€ 2.00

21

0211204068
ref: 21
02112-0406B

SCREW 4X6

€ 2.00

22

5118333030
ref: 22

GASKET (NAS)

€ 6.50

23

0142108258
ref: 23
01421-0825A

STUD 8X25

€ 2.50

24

5119245030
ref: 24
51192-47200

WASHER

€ 2.50

25

5118447030
ref: 25

SPRING,FRONT FORK

€ 20.50
