REAR BRAKE
GS550E 1980 (T) USA (E03)

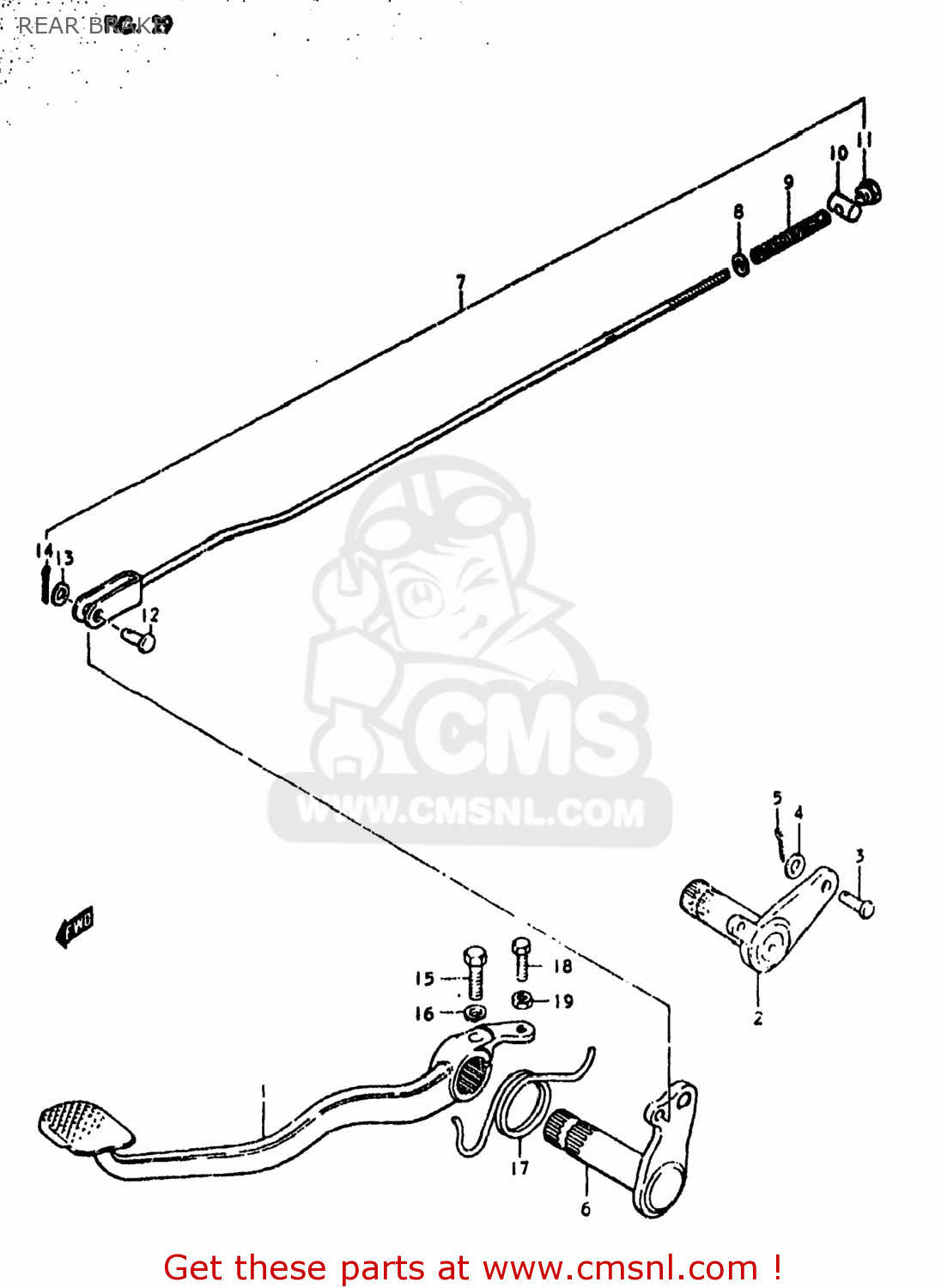

Rear brake diagram GS550E 1980 (T) USA (E03)
REAR BRAKE GS550E 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311047000
ref: 1
PEDAL,BRAKE
€ 60.50
2
4312047600
ref: 2
ARM,BRAKE PEDAL ROD
€ 31.00
3
0920006029
ref: 3
PIN
€ 1.50
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
0411120158
ref: 5
04111-2015A
PIN
€ 1.50
6
4312047000
ref: 6
ARM,BRAKE PEDAL
€ 41.50
7
4330047000
ref: 7
ROD ASSEMBLY,REAR BRAKE
€ 15.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0944009004
ref: 9
SPRING
€ 2.00
10
0920913003
ref: 10
09209-13018
PIN
€ 3.50
11
0915006001
ref: 11
09150-06010
NUT
€ 3.50
12
0920006013
ref: 12
PIN(L:13.5)
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0110708258
ref: 15
01500-08257
BOLT
€ 2.50
16
0832121088
ref: 16
08321-01087
LOCK WASHER
€ 2.00
17
0944837002
ref: 17
09448-37002-XC0
SPRING
€ 5.50
18
0110706208
ref: 18
01500-06207
BOLT
€ 2.00
19
0831011068
ref: 19
08310-00067
NUT
€ 2.50
