REAR COMBINATION LAMP
GS550E 1980 (T) USA (E03)

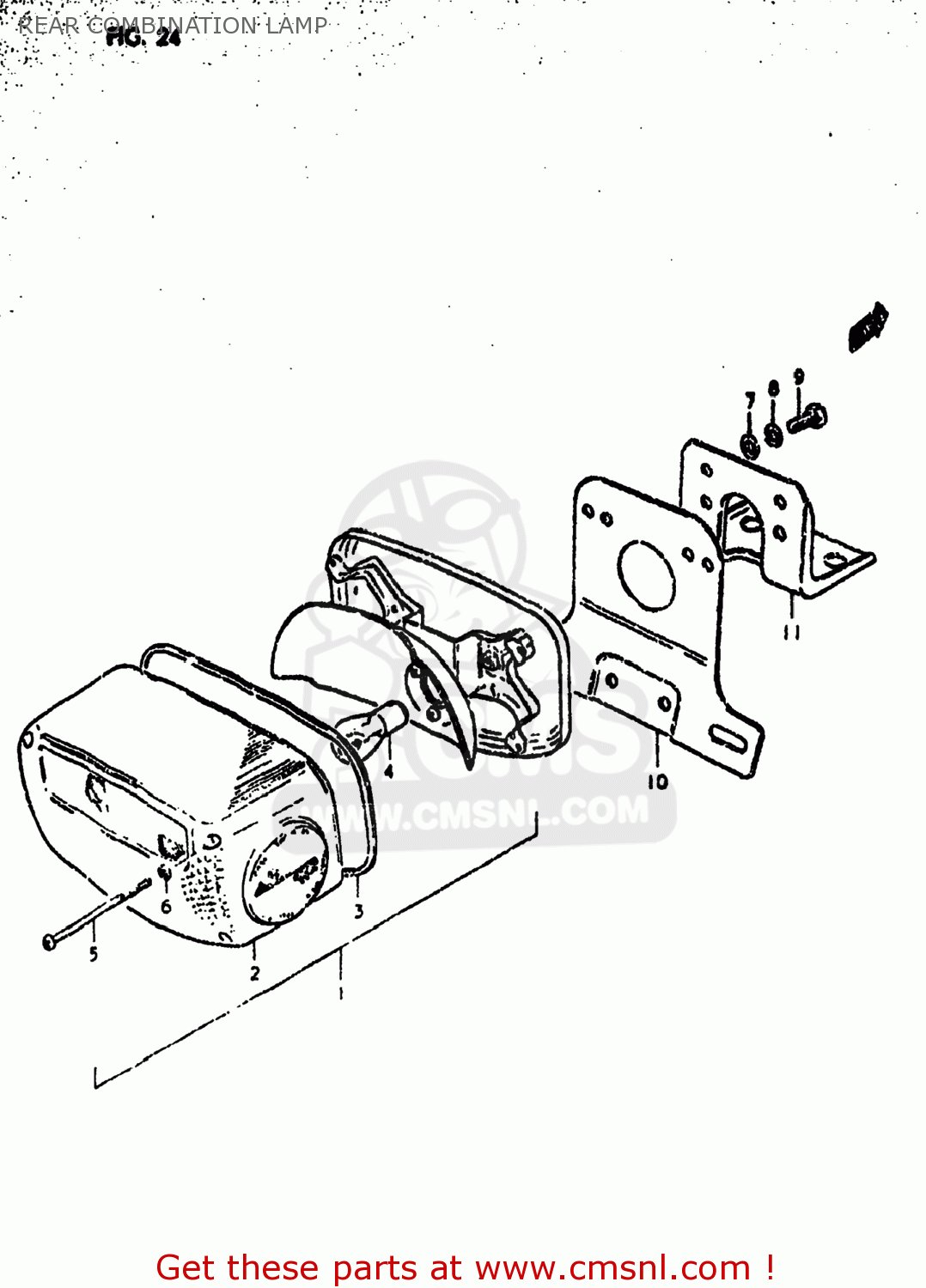

Rear combination lamp diagram GS550E 1980 (T) USA (E03)
REAR COMBINATION LAMP GS550E 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571045011
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 192.00
2
3571245012
ref: 2
35712-45013
LENS,REAR COMBINATION LAMP
€ 63.00
3
3571345010
ref: 3
GASKET (NAS)
€ 9.00
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0912504002
ref: 5
02112-04558
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
0110706128
ref: 9
01500-06127
BOLT
€ 2.00
10
3592745003
ref: 10
BRACKET,LICENSE PLATE
€ 17.00
11
3592845001
ref: 11
BRACKET,LICENSE PLATE
€ 8.50
