RIGHT HANDLE SWITCH
GS550E 1980 (T) USA (E03)

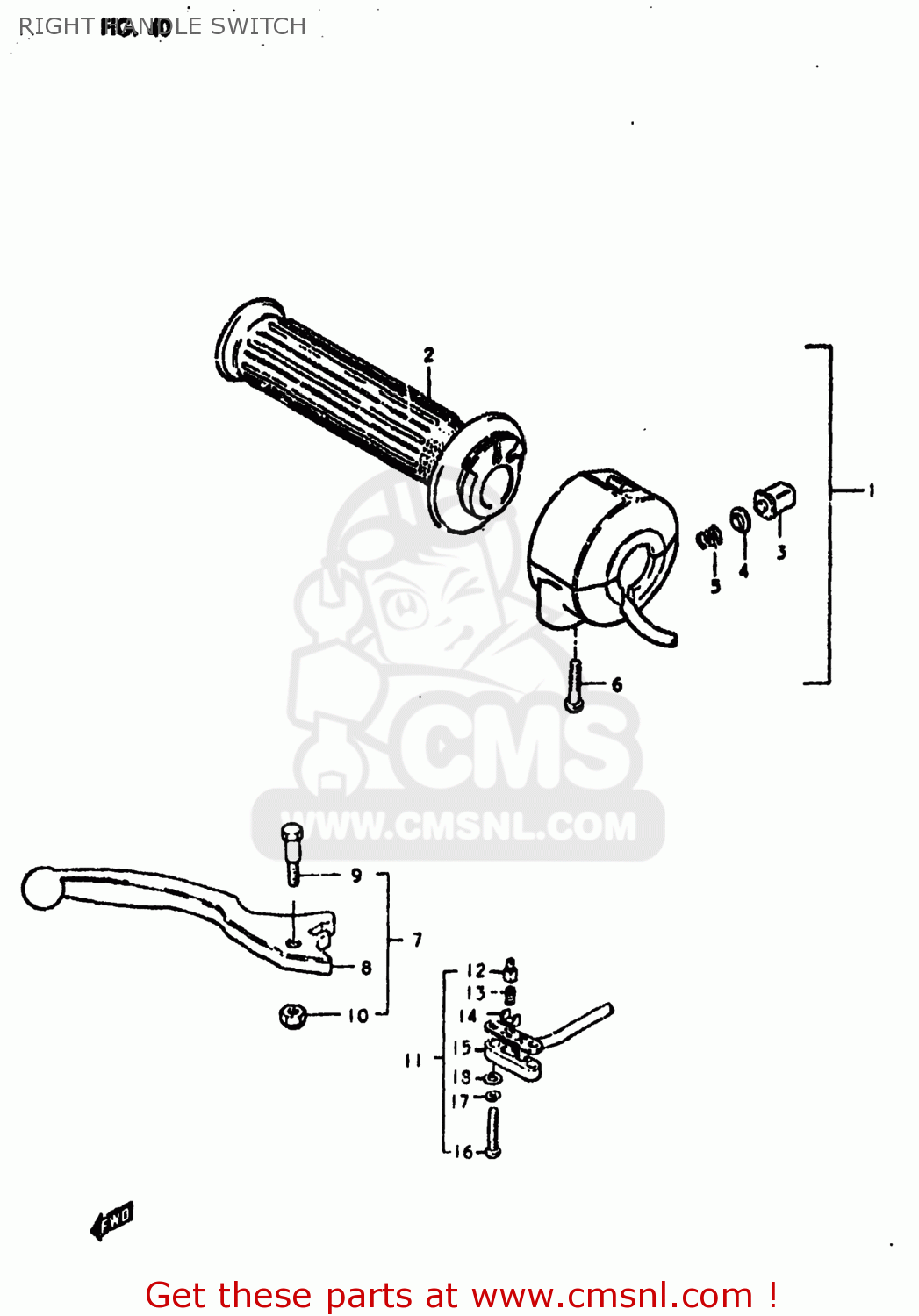

Right handle switch diagram GS550E 1980 (T) USA (E03)
RIGHT HANDLE SWITCH GS550E 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710047010
ref: 1
57100-47500
CASE ASSEMBLY,THROTTLE
€ 85.00
2
5711044011
ref: 2
57110-49510
GRIP,THROTTLE
€ 33.00
3
5737145000
ref: 3
BUTTON,HORN
€ 3.00
4
5737245000
ref: 4
CONTACT
€ 3.00
5
5738245000
ref: 5
SPRING
€ 2.50
6
0211205258
ref: 6
02112-05257
SCREW
€ 2.00
7
5730049101
ref: 7
57420-49101
LEVER ASSEMBLY,BRAKE
€ 36.50
8
5742049101
ref: 8
LEVER,BRAKE
€ 36.50
9
5743118621
ref: 9
BOLT
€ 8.00
10
0831921068
ref: 10
08319-2106A
NUT 6MM
€ 2.00
11
5746049100
ref: 11
57460-45500
SWITCH ASSEMBLY
€ 40.00
12
5746118600
ref: 12
57465-18601
HOLDER
€ 4.50
13
5746218600
ref: 13
57465-18601
SPRING
€ 4.50
14
5746318600
ref: 14
57465-18601
PLATE
€ 4.50
15
5748133010
ref: 15
COVER,FR BK TERMINAL BASE
€ 19.50
16
0912503105
ref: 16
09125-03105-XC0
SCREW
€ 2.50
17
0832121038
ref: 17
09162-03001
LOCK WASHER
€ 1.50
18
0832221038
ref: 18
08322-01037
WASHER
€ 2.00
