AIR CLEANER
GS550L 1981 (X) USA (E03)

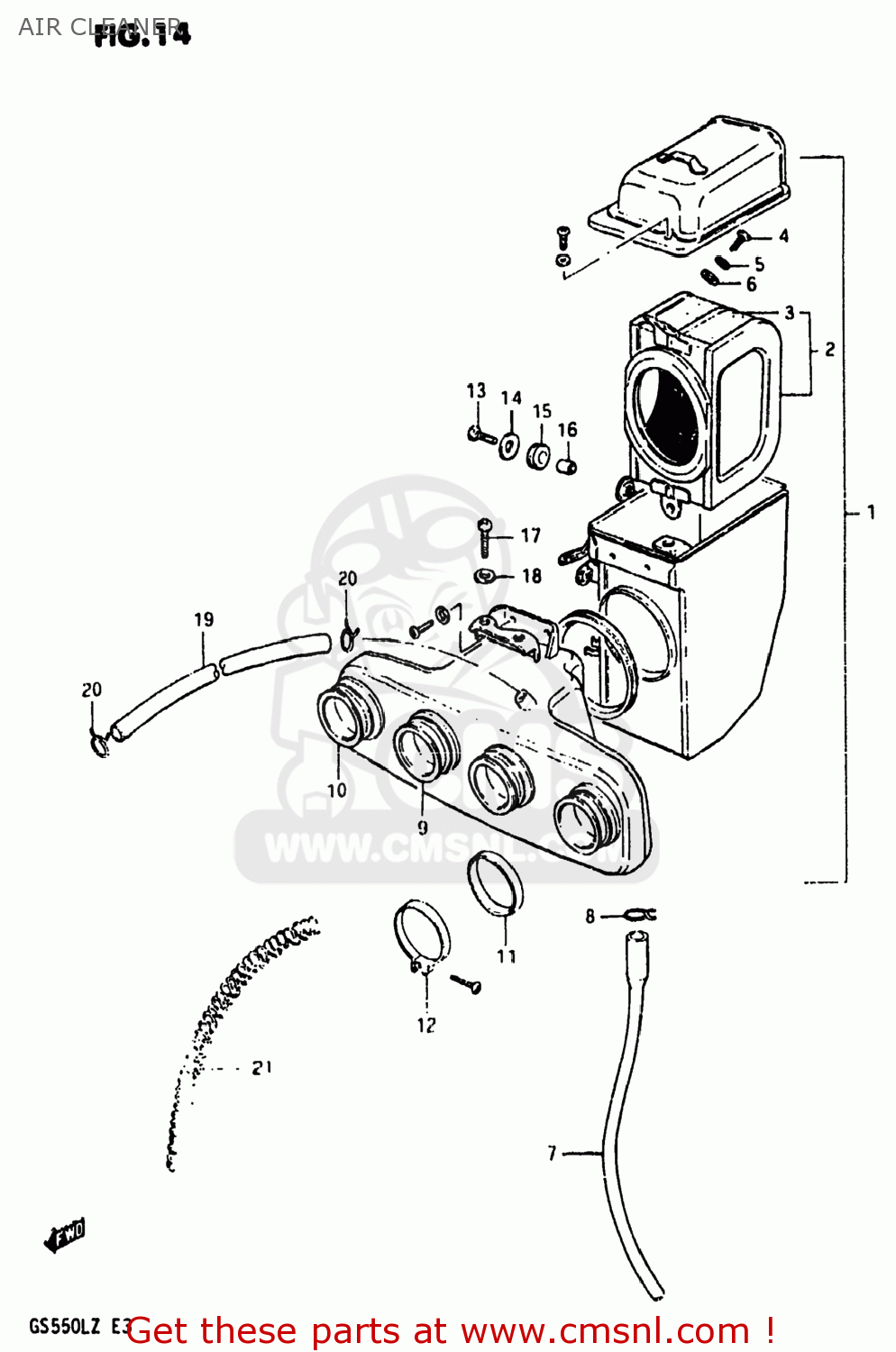

Air cleaner diagram GS550L 1981 (X) USA (E03)
AIR CLEANER GS550L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370047310
ref: 1
13700-47311
CLEANER ASSEMBLY,AIR
€ 171.00
2
1378047040
ref: 2
FILTER ASSY
€ 57.00
3
1378147030
ref: 3
FILTER
€ 21.00
4
0211205108
ref: 4
02112-05107
SCREW
€ 2.00
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
0832221058
ref: 6
08322-01057
WASHER
€ 2.50
7
1387000020
ref: 7
13870-11458
DRAIN TUBE
€ 13.50
8
0940114301
ref: 8
CLIP
€ 2.00
9
1388147030
ref: 9
TUBE,AIR CLEANER OUTLET A
€ 19.50
10
1388247030
ref: 10
TUBE,AIR CLEANER OUTLET B
€ 24.50
11
1388547030
ref: 11
RING,CARBURETOR AIR INLET HOSE
€ 8.00
12
0940260306
ref: 12
09402-60208
CLAMP
€ 4.50
13
0110706208
ref: 13
01500-06207
BOLT
€ 2.00
14
0916006007
ref: 14
09160-06084
WASHER
€ 2.00
15
0932008001
ref: 15
CUSHION
€ 3.50
16
0918006011
ref: 16
09180-06263
SPACER (6.1X9X9)
€ 2.00
17
0211206128
ref: 17
02112-06127
SCREW 6X12
€ 2.00
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0934311001
ref: 19
09352-11153-00B
HOSE
€ 30.00
20
0940114301
ref: 20
CLIP
€ 2.00
21
0944010009
ref: 21
SPRING
€ 10.50
