REAR SWINGING ARM (MODEL X)
GS550L 1981 (X) USA (E03)

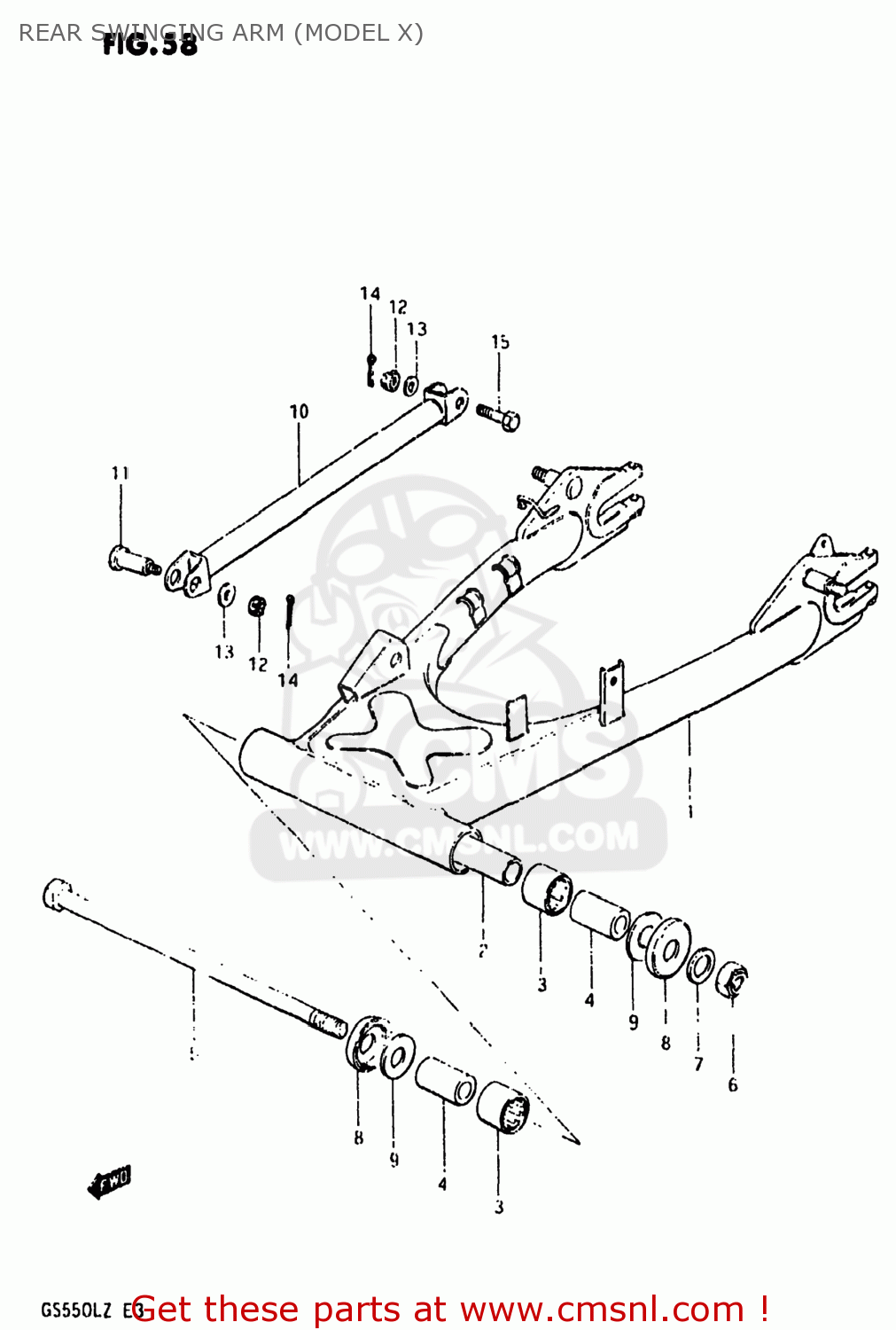

Rear swinging arm (model x) diagram GS550L 1981 (X) USA (E03)
REAR SWINGING ARM (MODEL X) GS550L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110034821019
ref: 1
61100-34822-019
SWING ARM ASSEMBLY,REAR
€ 205.00
2
6128145001
ref: 2
SPACER,RR SWGARM PIVOT CTR
€ 19.50
3
0926322017
ref: 3
BEARING(22X29X30)
€ 18.50
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
€ 12.50
5
6121145400
ref: 5
SHAFT,REAR SWING ARM
€ 49.00
6
0831921148
ref: 6
08319-2114A
NUT 14MM
€ 3.00
7
0832211148
ref: 7
08322-01147
WASHER
€ 2.00
8
6126245002
ref: 8
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
€ 2.50
10
6431034300019
ref: 10
64310-49200-019
TORQUE LINK,REAR
€ 22.50
11
0911110011
ref: 11
09111-10022-XC0
BOLT
€ 8.00
12
0831441108
ref: 12
08314-4010B
NUT
€ 2.50
13
0832211108
ref: 13
08322-01107
WASHER
€ 2.50
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0910110017
ref: 15
BOLT(10X39)
€ 5.00
