HANDLEBAR
GS550L 1981 (X) USA (E03)

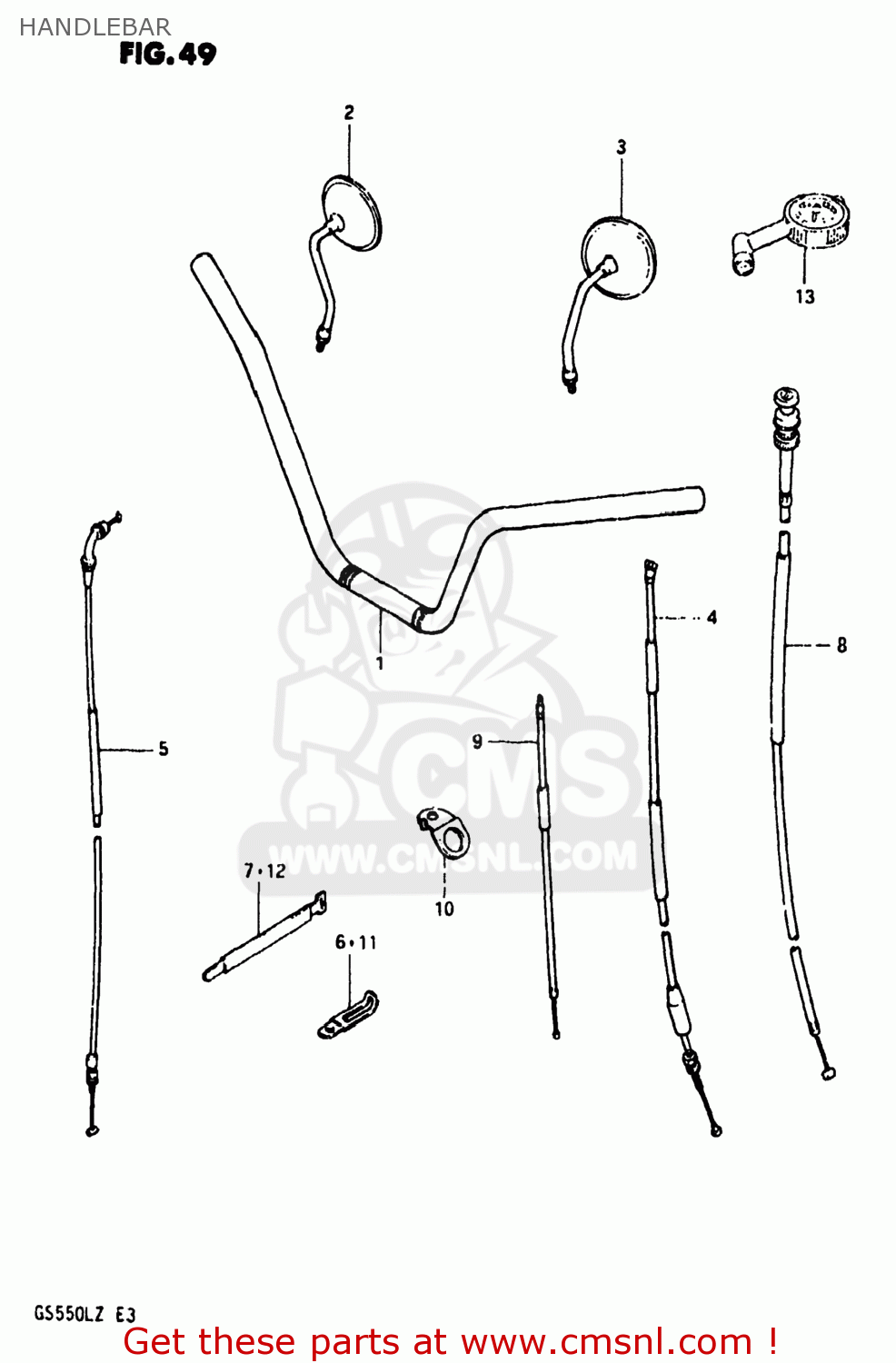

Handlebar diagram GS550L 1981 (X) USA (E03)
HANDLEBAR GS550L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611047500
ref: 1
HANDLEBAR
€ 76.00
2
5650044200
ref: 2
56500-44201
MIRROR ASSEMBLY,RIGHT
€ 72.00
3
5660044200
ref: 3
56600-44201
MIRROR ASSEMBLY,LEFT
€ 72.00
4
5820047500
ref: 4
CABLE,CLUTCH
€ 21.00
5
5830044200
ref: 5
58300-44201
CABLE ASSEMBLY,THROTTLE
€ 33.50
6
0940406403
ref: 6
09404-06432
CLAMP
€ 2.50
7
0940718301
ref: 7
CLAMP
€ 6.00
8
5840047000
ref: 8
58400-45110
CABLE ASSEMBLY,STARTER
€ 27.00
9
5841047500
ref: 9
58410-47X00
CABLE COMP,STARTER
€ 14.00
10
5924345010
ref: 10
GUIDE,BRAKE HOSE
€ 8.50
11
0940406413
ref: 11
09404-06432
CLAMP
€ 2.50
12
0940718301
ref: 12
CLAMP
€ 6.00
13
9620041330
ref: 13
GAUGE ASSY,AIR PRESSURE
€ 77.50
