CLUTCH

GS550L 1981 (X) USA (E03)

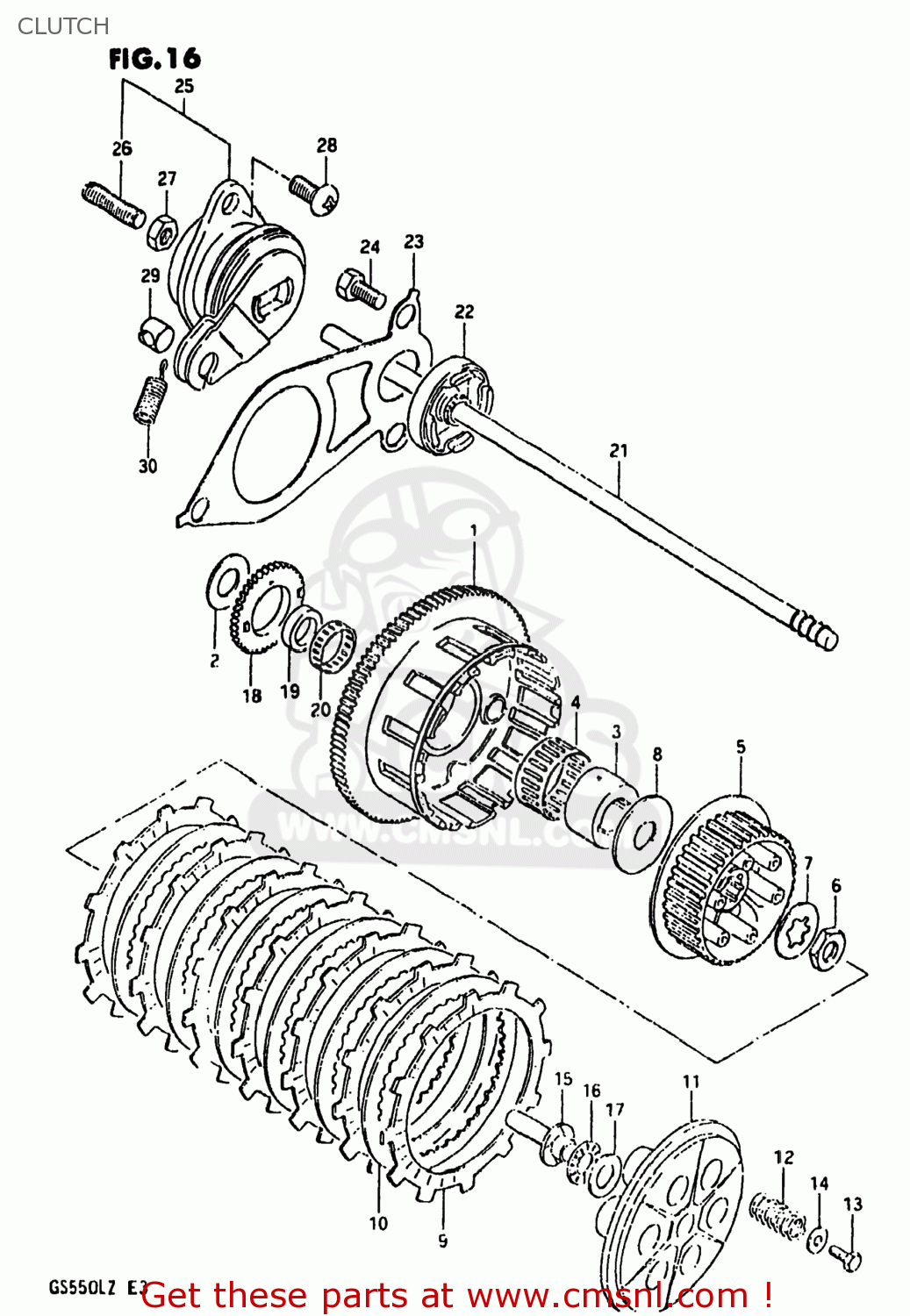

Clutch diagram GS550L 1981 (X) USA (E03)

CLUTCH GS550L 1981 (X) USA (E03)

CLUTCH GS550L 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120047010
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE NT:87

€ 244.50

2

0916025023
ref: 2
09160-25055

WASHER

€ 9.50

3

2125145001
ref: 3
21251-49200

SPACER,PRIMARY DRIVEN

€ 65.50

4

0926351001
ref: 4
09263-51002

BEARING

€ 37.00

5

2141147000
ref: 5

HUB,CLUTCH SLEEVE

€ 80.50

6

0914024004
ref: 6
09140-24007

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025022
ref: 8

WASHER(25X66X3.5)

€ 13.50

9

2144145000
ref: 9
21441-45001

PLATE,CLUTCH DRIVE (NAS)

€ 20.00

10

2145145000
ref: 10
21451-28C31

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2146216501
ref: 11
21462-14301

DISC,CLUTCH PRESSURE

€ 51.00

12

0944019004
ref: 12

SPRING

€ 3.00

13

0110706168
ref: 13
01500-06167

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14
09160-06066

WASHER

€ 2.00

15

2312144100
ref: 15

PIECE,CLUTCH PUSH

€ 21.50

16

0926315003
ref: 16

BEARING(15X28X2)

€ 7.00

17

0916015015
ref: 17
09160-15045

WASHER

€ 4.00

18

1632145002
ref: 18

GEAR,ENG OIL PUMP DRIVE(NT:38)

€ 151.00

19

1632545001
ref: 19

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

20

0926336002
ref: 20

BEARING(36X40X10)

€ 24.50

21

2310044101
ref: 21

ROD,CLUTCH PUSH

€ 18.50

22

0928306001
ref: 22
09285-06011

OIL SEAL

€ 9.50

23

2311747000
ref: 23
23117-44000

PLATE,CLUTCH PUSH ROD

€ 17.00

24

0110706128
ref: 24
01500-06127

BOLT

€ 2.00

25

2320030001
ref: 25
23200-30002

SCREW ASSEMBLY,CLUTCH RELEASE

€ 80.50

26

0913406001
ref: 26
09134-06010

SCREW

€ 3.00

27

0831022068
ref: 27
08310-00067

NUT 6MM

€ 2.50

28

0211206128
ref: 28
02112-06127

SCREW 6X12

€ 2.00

29

2322207000
ref: 29

PIECE,RELEASE ARM END

€ 5.00

30

0944308001
ref: 30

SPRING

€ 3.00
