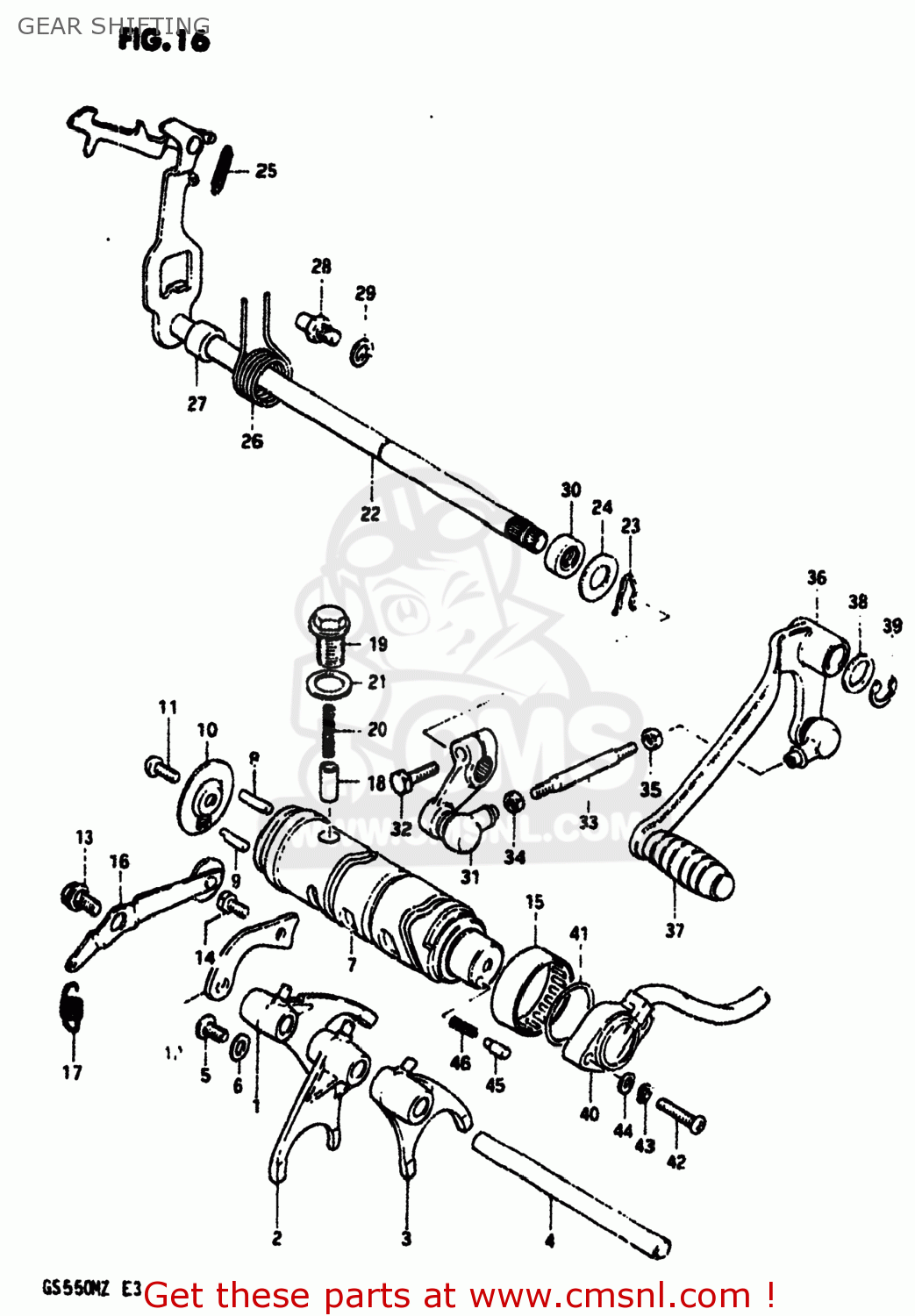

GEAR SHIFTING

ref

part #

description

quantity

1

2521144001
ref: 1

FORK,GEAR SHIFT NO.1

€ 70.00

2

2522144001
ref: 2

FORK,GEAR SHIFT NO.2

€ 74.50

3

2523144000
ref: 3

FORK,GEAR SHIFT NO.2

€ 74.50

4

2541131000
ref: 4
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

5

0214206108
ref: 5
02142-06107

SCREW

€ 2.00

6

0821106141
ref: 6

WASHER

€ 2.50

7

2531147000
ref: 7
25311-47001

CAM,GEAR SHIFT

€ 68.50

8

0926104001
ref: 8

PIN(4X18.5)

€ 1.50

9

0920904013
ref: 9

PIN

€ 5.00

10

2532244000
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

2534144000
ref: 12
25341-33300

GUIDE,GEAR SHIFTING CABLE

€ 6.00

13

0911106019
ref: 13
09111-06054

BOLT

€ 1.50

14

0110706128
ref: 14
01500-06127

BOLT

€ 2.00

15

0926340001
ref: 15

BEARING(40X47X12)

€ 21.00

16

2535044000
ref: 16

STOPPER,GEAR SHIFT CAM NO.1

€ 10.50

17

0944309007
ref: 17

SPRING

€ 14.50

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006020
ref: 20

SPRING

€ 14.00

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2551047000
ref: 22

SHAFT,GEAR SHIFT

€ 58.50

23

0938412001
ref: 23
08331-3112A

SPRING,RETAINER

€ 2.00

24

0916012020
ref: 24
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

25

0944307013
ref: 25

SPRING

€ 2.50

26

0944426012
ref: 26
09444-26013

SPRING

€ 3.50

27

0918012068
ref: 27

SPACER(12X20X15.3)

€ 3.00

28

2567101000
ref: 28
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

29

0916208005
ref: 29
08321-01087

WASHER

€ 2.00

30

0928512002
ref: 30
09285-12006

OIL SEAL

€ 7.00

31

2552047000
ref: 31

ARM,GEAR SHIFT LINK

€ 53.50

32

0110706208
ref: 32
01500-06207

BOLT

€ 2.00

33

2552547700
ref: 33
25525-24D10

ROD,GEAR SHIFT LINK

€ 9.00

34

0831011068
ref: 34
08310-00067

NUT

€ 2.50

35

0914006011
ref: 35

NUT

€ 1.50

36

2560047701
ref: 36

LEVER ASSEMBLY,GEAR SHIFTING

€ 19.00

37

2565216500
ref: 37

RUBBER,GEAR SHIFT PEDAL

€ 4.00

38

0916012011
ref: 38

WASHER(12.5X20X1)

€ 1.50

39

0833131128
ref: 39
08331-3112A

CIRCLIP

€ 2.00

40

3772045100
ref: 40

TERMINAL BASE ASSY,GEAR SHIFT

€ 92.50

41

0928026003
ref: 41
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

42

0211205208
ref: 42
02112-05207

SCREW 5X20

€ 3.00

43

0832121058
ref: 43
08321-0105A

LOCK WASHER

€ 2.00

44

0832221058
ref: 44
08322-01057

WASHER

€ 2.50

45

0920905011
ref: 45

PIN(5X15.5)

€ 2.00

46

0944004010
ref: 46

SPRING

€ 1.50
