TURN SIGNAL LAMP
GS550M 1982 (Z) USA (E03)

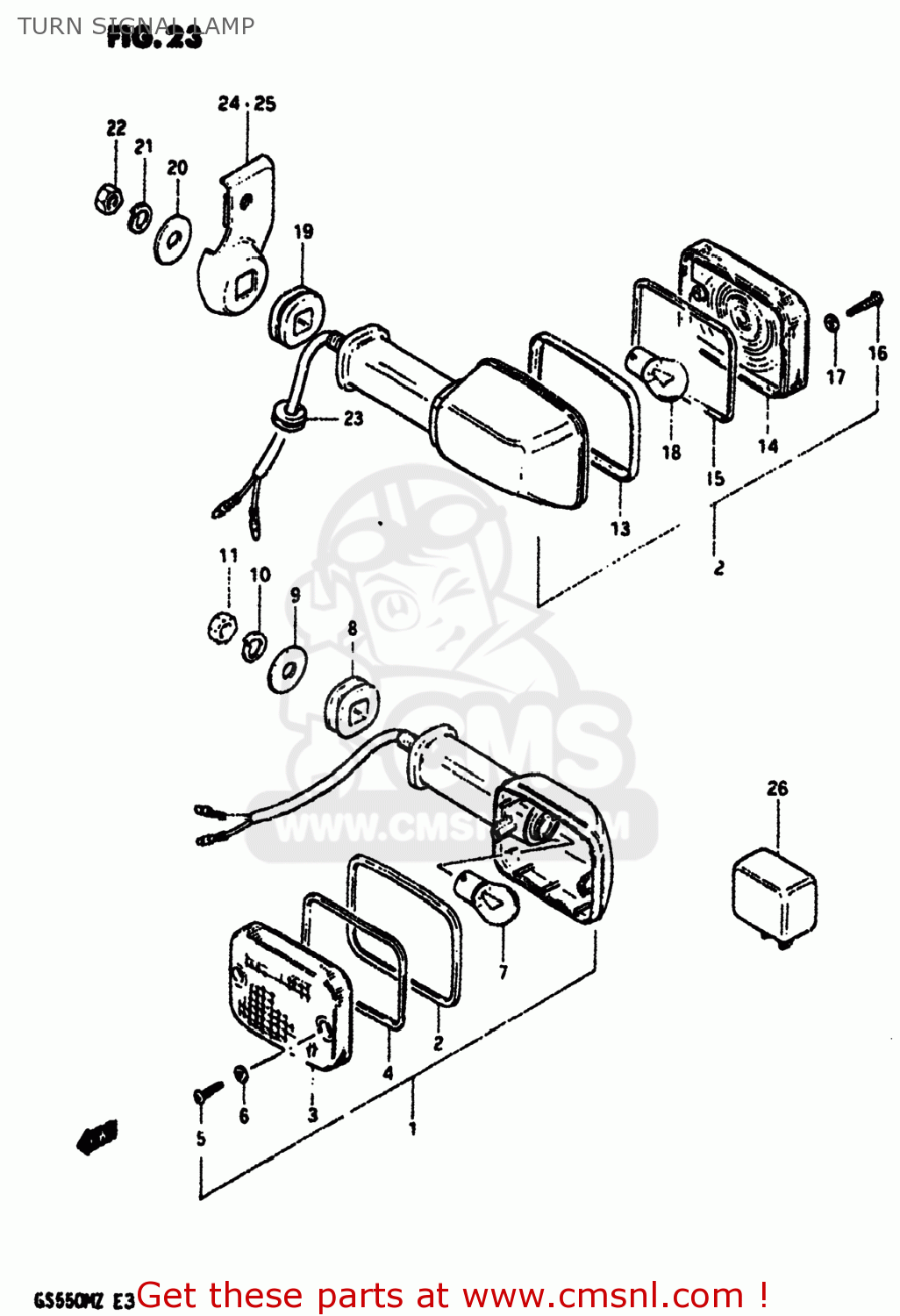

Turn signal lamp diagram GS550M 1982 (Z) USA (E03)
TURN SIGNAL LAMP GS550M 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560145530
ref: 1
35601-45570-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 83.00
2
3561149230
ref: 2
RIM
€ 11.00
3
3561249231
ref: 3
LENS
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
€ 5.00
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112006
ref: 7
BULB(12V23W,STANLEY,A4577A)
€ 4.00
8
0932015002
ref: 8
CUSHION
€ 4.50
9
0916010006
ref: 9
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
10
0832121108
ref: 10
08321-01107
LOCK WASHER
€ 2.00
11
0831012108
ref: 11
08310-00107
NUT
€ 2.50
12
3560145530
ref: 12
35601-45570-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 83.00
13
3561149230
ref: 13
RIM
€ 11.00
14
3561249231
ref: 14
LENS
€ 13.00
15
3561349230
ref: 15
GASKET (NAS)
€ 5.00
16
0321104208
ref: 16
03211-04207
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
0947112006
ref: 18
BULB(12V23W,STANLEY,A4577A)
€ 4.00
19
0932015002
ref: 19
CUSHION
€ 4.50
20
0916010006
ref: 20
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
21
0832121108
ref: 21
08321-01107
LOCK WASHER
€ 2.00
22
0831012108
ref: 22
08310-00107
NUT
€ 2.50
23
0930805011
ref: 23
GROMMET
€ 2.00
24
3562047700
ref: 24
35620-47701
BRACKET,REAR TURN SIGNAL
€ 9.50
25
3564047700
ref: 25
35640-47701
BRACKET,REAR TURN SIGNAL
€ 9.50
26
3861045031
ref: 26
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
