STAND

GS550M 1982 (Z) USA (E03)

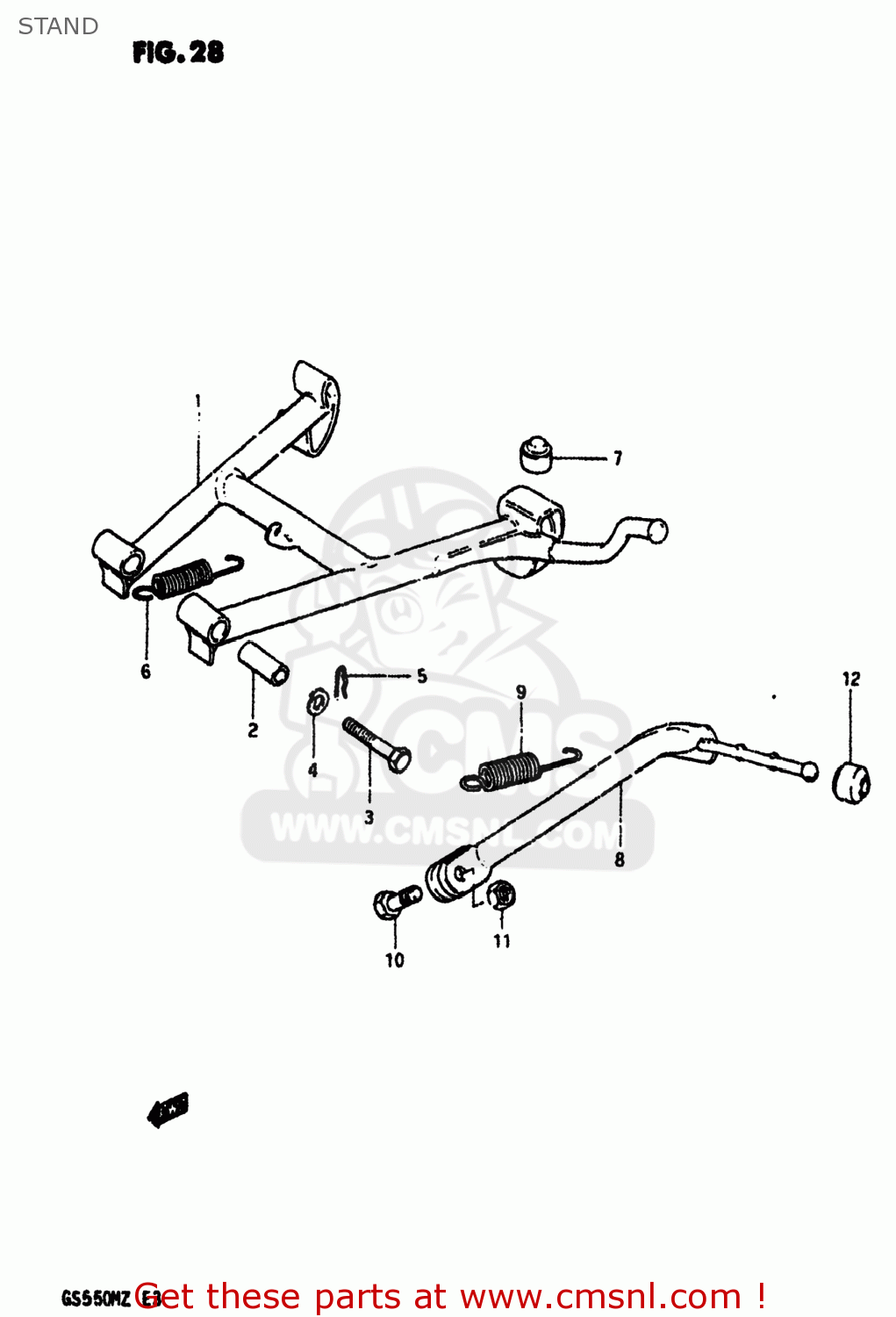

Stand diagram GS550M 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

4210034200
ref: 1

STAND,CENTER

€ 76.50

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

0910110018
ref: 3
09101-10030

BOLT

€ 5.50

0832121108
ref: 4
08321-01107

LOCK WASHER

€ 2.00

0938510001
ref: 5
09385-10005

CLIP

€ 1.50

0944318003
ref: 6
09443-18006-XC0

SPRING

€ 5.50

0932110001
ref: 7

CUSHION

€ 2.50

4231034300
ref: 8

STAND,SIDE

€ 46.00

0944317005
ref: 9
09443-17008-XC0

SPRING

€ 11.50

0910010067
ref: 10

BOLT(10X30)

€ 3.50

0831022108
ref: 11
08310-00107

NUT

€ 2.50

0932007001
ref: 12

CUSHION

€ 4.00
